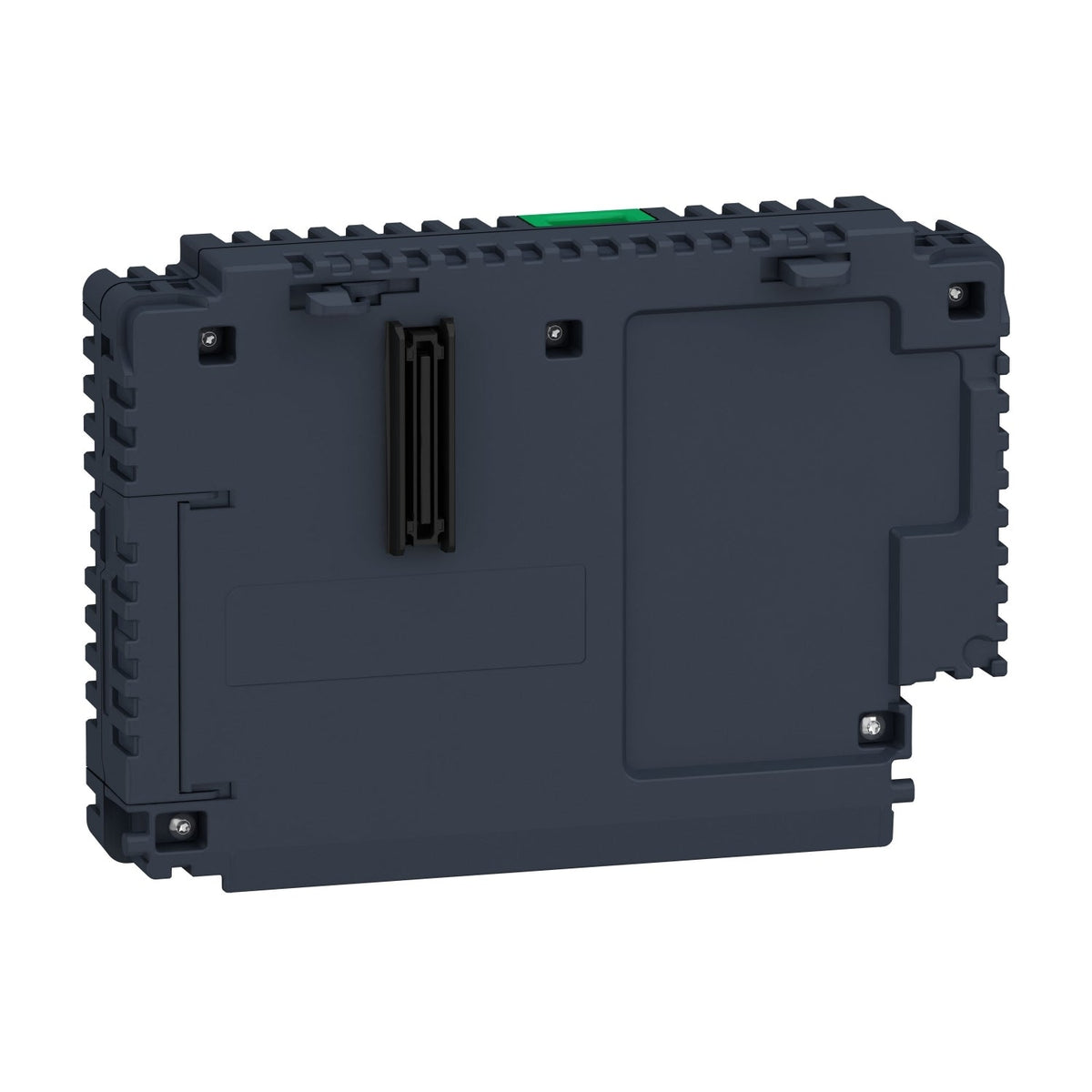

The HMIG3U is a Schneider Electric Harmony GTU Premium Box base unit, the CPU and I/O enclosure that pairs with a separate Harmony GTU display module to form a complete HMI. It carries an ARM Cortex-A9 processor, a 1 GB SD card for application storage, dual Ethernet ports, and a 12...24 V DC supply.
This is a base unit only: the HMIG3U is the Premium Box CPU enclosure with processor, memory, and communication ports, and it needs a separate Harmony GTU display module to form a working operator panel, so order both before installing. The dual Ethernet TCP/IP ports let it sit on two separate networks at once, for example a plant network and a machine-local control network, without an external switch. The expansion fieldbus card slot is the route to add a Profibus, CANopen, or DeviceNet interface beyond the built-in Modbus and Modbus TCP/IP support, for integrating with non-Schneider fieldbus devices on the machine. The 1 GB SD card holds the runtime application and recipe or data-logging files, so confirm available card capacity against project data-logging needs before committing to this base unit over a smaller-storage alternative.
| Range of Product | Harmony GTU |
|---|---|
| Product or Component Type | Base unit |
| Device short name | Premium Box |
| Range Compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Integrated connection type | Ethernet TCP/IP 2 RJ45, COM1 serial link RJ45 RS485 110...115200 bit/s, COM1 serial link RJ45 RS485 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s, Auxiliary port terminal block, Expansion unit fieldbus card, USB 2.0 port 2 USB type A, USB 2.0 port mini B USB |
|---|---|
| Communication port protocol | Modbus, Modbus TCP/IP, Uni-Telway |
| Software package | Vijeo Designer |
| Processor name | ARM Cortex-A9 |
| Data storage equipment | 1 GB SD card |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Memory description | 256 MB RAM internal 2 x 13 mm board), 512 KB NVRAM backup memory |
| Type of cooling | Natural convection |
| Width | 7.4 in (188 mm) |
| Height | 5.2 in (131 mm) |
| Depth | 1.8 in (45 mm) |
| Net Weight | 2.0 lb(US) (0.9 kg) |
| Standards | CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, IEC 61132-2 |
|---|---|
| Product certifications | CE, CULus, ATEX, IEC-Ex, RCM, GL, KC, CUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, UKEX |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Pollution degree | 2 IEC 61131-2 ed.3 |
| Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2, 9.8 m/s² 9…150 Hz) IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Part number | HMIG3U |
|---|---|
| Type designation | Premium Box |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480687204 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for Premium Box is 852859.
The EAN (GTIN) of Premium Box is 3606480687204.
Premium Box ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
