Part number
HMIG2U
Model no
standard box
$946.22 On request Dispatch — · From TürkiyeGet a Quote
Harmony GTU

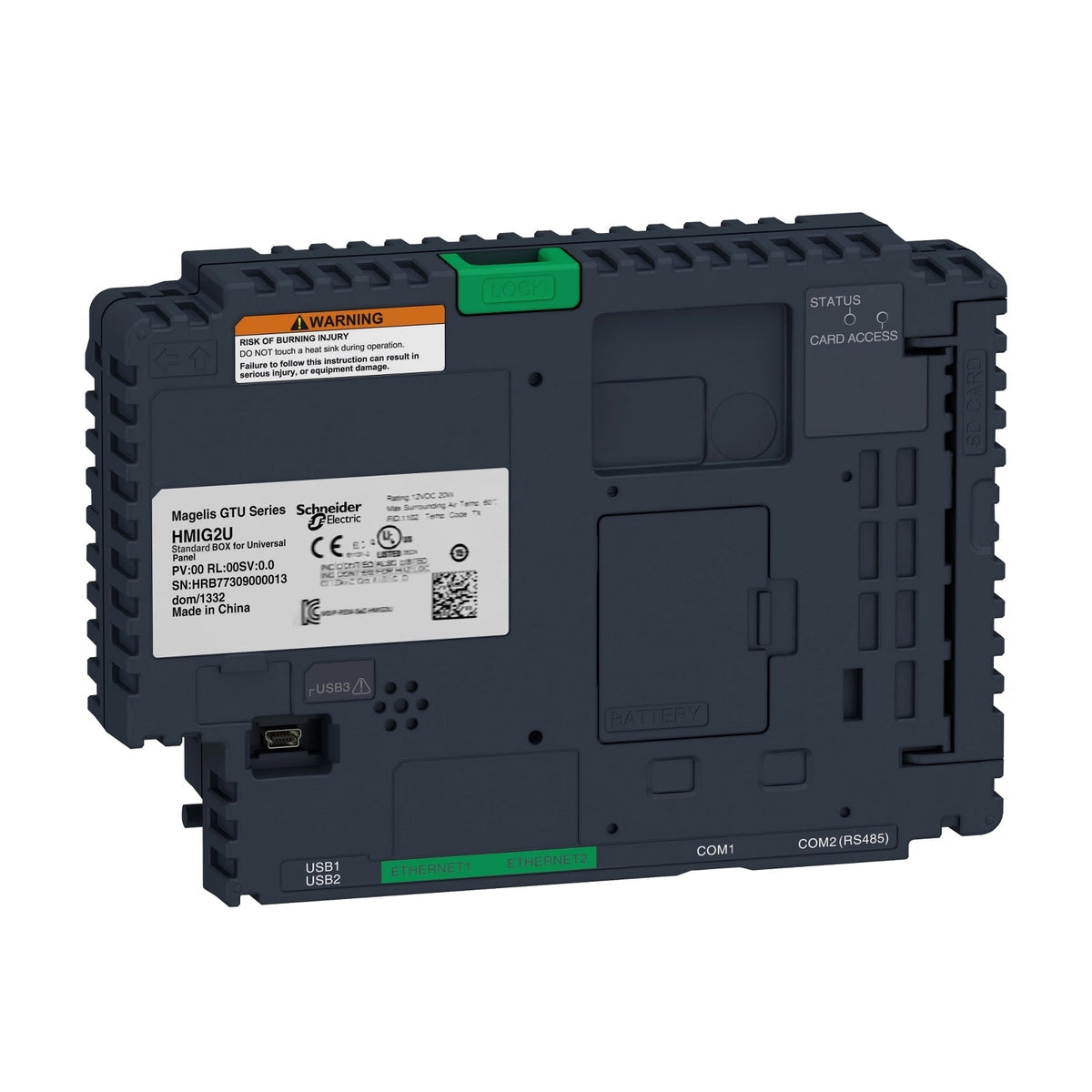

Schneider Electric HMIG2U Harmony GTU Standard Box Base Unit 1 GB Flash HMI Operator Panel

Harmony GTU standard box base unit, 1 GB flash, dual Ethernet, Modbus/Uni-Telway, 12-24V DC.

Communication
Ethernet TCP/IP (2 RJ45), COM1 RS-232C, COM2 RS-485, USB 2.0 Type A x2, USB 2.0 Mini-B
EAN
3606489747176
Description

About the standard box

The Schneider Electric HMIG2U is the standard-box base unit of the Harmony GTU range, an open panel-PC style module with 1 GB built-in flash memory and 256 MB internal RAM. It pairs with a separate Harmony GTU display module to build a complete operator terminal, and runs on 12...24 V DC with Ethernet, serial and USB connectivity for Modbus and Uni-Telway supervision.

Certifications & Standards

  • CE
  • CULus
  • ATEX
  • IEC-Ex
  • RCM
  • GL
  • KC
  • CUL
  • EAC
  • UKCA
  • UKEX
  • CSA C22.2 No 142
  • ANSI/ISA 12-12-01
  • UL 508
  • CSA C22.2 No 213
  • IEC 61132-2

Selection Notes

The HMIG2U ships as a bare base unit, not a complete panel: it requires a separate Harmony GTU display module to form a working operator terminal, so confirm the matching display before ordering. Its 1 GB built-in flash and dual Ethernet RJ45 ports suit applications that need local data logging or a redundant network connection, which smaller single-port HMI panels in the Harmony range do not offer.

Applications

The multi-brand range compatibility (Allen-Bradley, ABB, Mitsubishi, Omron, Siemens) makes this base unit suited to retrofits and multi-vendor panels where one HMI must poll controllers from several manufacturers over Modbus.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 5

Range of Product Harmony GTU
Product or Component Type Base unit
Device short name standard box
Range Compatibility Harmony GTU, Allen-Bradley, ABB, MitsubishI, Omron, Siemens
[Us] rated supply voltage 12...24 V DC power supply

Complementary 15

Integrated connection type Ethernet TCP/IP 2 RJ45, COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps, USB 2.0 port 2 USB type A, USB 2.0 port mini B USB
Communication port protocol Modbus, Modbus TCP/IP, Uni-Telway
Software package Vijeo Designer
Processor name ARM Cortex-A9
Data storage equipment 1 GB built-in flash memory
Port Ethernet 10BASE-T/100BASE-T
Memory description 256 MB RAM internal 2 x 13 mm board), 512 KB NVRAM backup memory
Number of slots 1 slot(s) for SD card
Realtime clock Built-in
Local signalling , green LED steady)operating status (RUN), , green LED faded)stand-by, , orange LED flashing)software starting up, , red LED steady)power ON, , green, orange and red LED alternate)module error (ERR), , red/orange LED alternate)boot status, , green/red LED alternate)connection status
Type of cooling Natural convection
Width 7.4 in (188 mm)
Height 5.2 in (131 mm)
Depth 1.8 in (45 mm)
Net Weight 2.0 lb(US) (0.9 kg)

Environment 13

Standards CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, IEC 61132-2
Product certifications CE, CULus, ATEX, IEC-Ex, RCM, GL, KC, CUL, EAC, UKCA, UKEX
Resistance to fast transients 1 kV IEC 61000-4-4 signal ports), 2 kV IEC 61000-4-4 power ports)
Resistance to electrostatic discharge 6 kV contact discharge IEC 61000-4-2 level 3, 8 kV air discharge IEC 61000-4-2 level 3
Ambient air temperature for operation 32…140 °F (0…60 °C)
Ambient air temperature for storage -4…140 °F (-20…60 °C)
Pollution degree 2 IEC 61131-2 ed.3
Environmental characteristic Corrosive gas free
Relative Humidity 10…90 % non-condensing
Operating altitude 6561.68 ft (2000 m)
Vibration resistance 3.5 mm constant amplitude 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2
Shock resistance 147 m/s² X, Y, Z directions for 3 times)IEC 61131-2
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number HMIG2U
Type designation standard box
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489747176

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.9 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMIG2U

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • EAC
  • CSA C22.2 No 142
  • ANSI/ISA 12-12-01
  • UL 508
  • Class I division 2 CSA C22.2 No 213
  • IEC 61132-2
Quick answers

Questions about the standard box

What is the HS code of standard box for customs?

The tariff (HS) code on file for standard box is 852859.

What is the EAN of standard box?

The EAN (GTIN) of standard box is 3606489747176.

Where does standard box ship from, and how fast?

standard box ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
