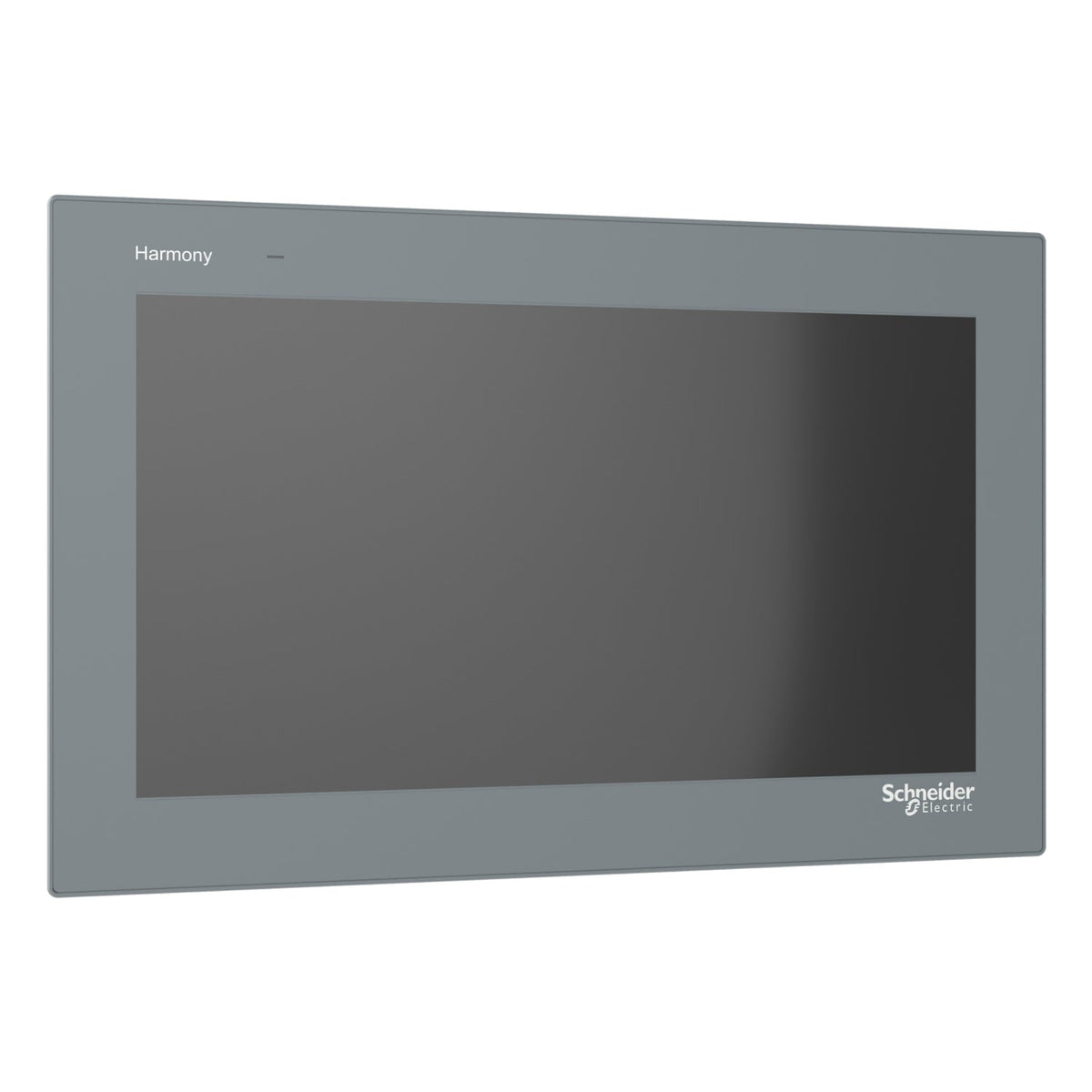

The Schneider Electric HMIET6700 is a 15-inch touch panel in the Easy Harmony ET6 range, built around a 1366 x 768 (FWXGA) color TFT display with 16 million colors and single-touch resistive sensing. It runs on 24 V DC, connects via COM1, COM2, Ethernet, USB host/device, and is configured with Vijeo Designer Basic software for machine-level operator interfaces.
The HMIET6700 is the 15-inch member of the Easy Harmony ET6 line; pick it over the smaller or larger variants in the range when the panel cut-out and viewing distance call for a 15-inch screen specifically. Its FWXGA resolution and 16M-color display, combined with COM1, COM2, Ethernet, USB host/device, suit OEM machine HMIs that need Modbus or Uni-TE supervision without a separate gateway.
Typical use cases include packaging lines, HVAC skids, pump stations, and general machine tool interfaces where the panel is flush-mounted into an enclosure door and wired directly to the controller over serial or Ethernet.
| Range of product | Harmony ET6 |
|---|---|
| Product or component type | Touch panel screen |
| Software package | Vijeo Designer Basic |
| Processor name | ARM Cortex-A8 |
| Display size | 15 inch |
|---|---|
| Display type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display resolution | 1366 x 768 pixels FWXGA |
| Touch panel | Single touch analogue resistive |
| Brightness | 16 levels |
| Character font | ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady for operating, Status LED orange, steady for software starting up, Status LED red, steady for power supply (ON), Status LED, off for power supply (OFF) |
| Power consumption in W | 18.5 W |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Memory description | Device memory 256 MB, User data memory 256 MB, Backup memory 128 kB |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom, 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom, COM2 serial link (rate: 2400...187500 bps)bottom, 1 Ethernetbottom, 1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C, Built-in 10...90 % RH |
| Downloadable protocols | Modbus, Uni-TE, Third party protocols |
| Product brand | Schneider Electric |
| Fixing mode | By 4 screws, mounting on 1.6...5 mm thick panel |
| Cut-out dimensions | 394 x 250 mm panel cut dimension |
| Height | 268 mm |
| Width | 412 mm |
| Depth | 50 mm |
| Net weight | 2.52 kg |
| Immunity to microbreaks | 5 ms |
|---|---|
| Enclosure material | PC |
| Front material | Plastic |
| Standards | IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-1-201 |
| Product certifications | CE, UL, EAC (pending), KC-Mark (pending) |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2, IP65 (front panel) conforming to IEC 61131-2 |
| NEMA degree of protection | NEMA 4 front panel (indoor use) |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 9.8 m/s² (f = 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Part number | HMIET6700 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.500 cm |
| Package 1 Width | 36.200 cm |
| Package 1 Length | 53.000 cm |
| Package 1 Weight | 3.397 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 38.176 kg |
| Shipping weight | 2.52 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for HMIET6700 is 852859.
HMIET6700 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
