Part number
HMIET6500
$697.65 On request Dispatch — · From TürkiyeGet a Quote
Harmony ET6

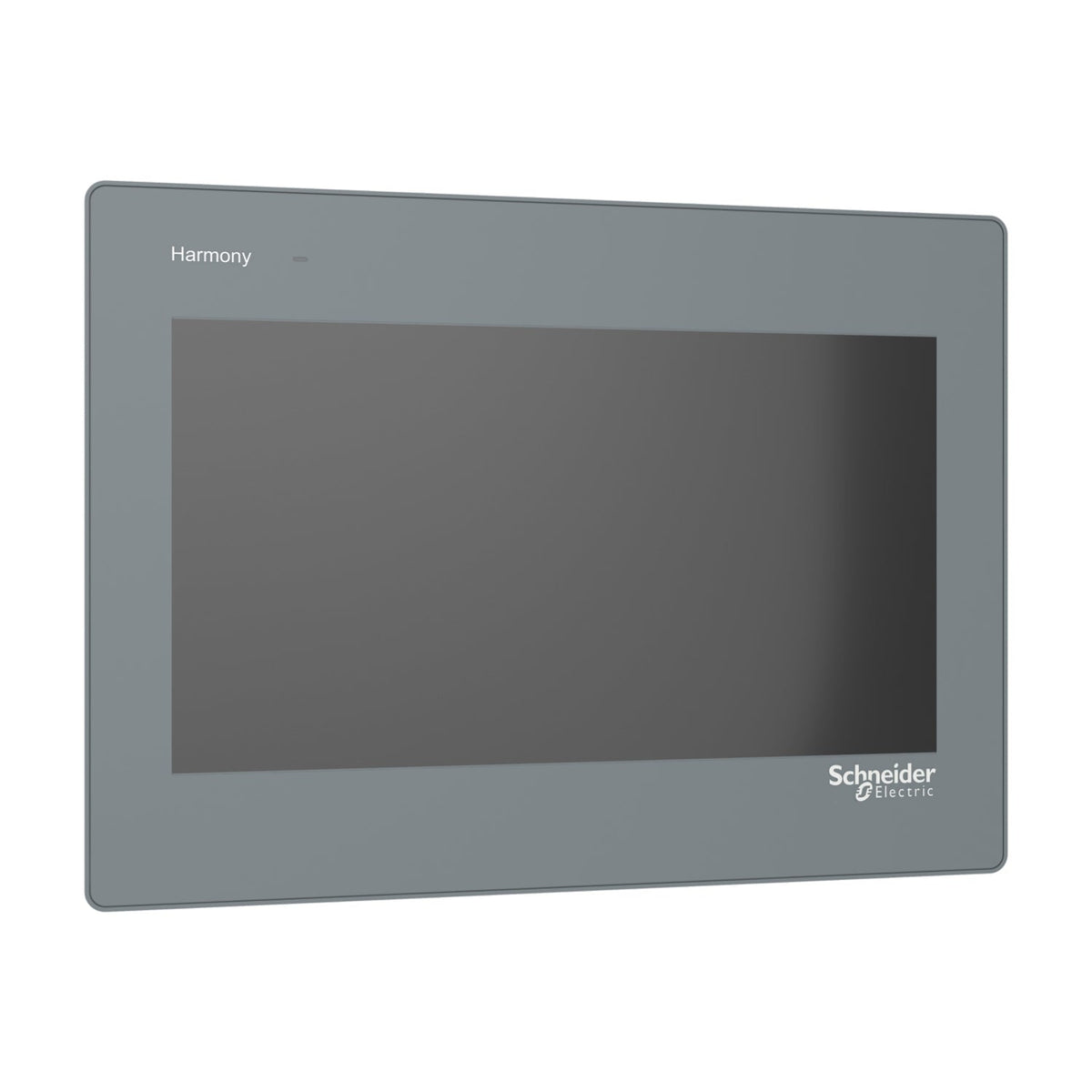

Schneider Electric HMIET6500 Easy Harmony ET6 10-inch Wide Touch Panel 1024x600 16M Colors HMI Operator Panel

10-inch Easy Harmony ET6 touch panel, WSVGA, 16M colors, 2 COM, Ethernet, USB, 24V DC, IP65 front.

Communication
1 Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), USB 2.0 Type A host, USB 2.0 Micro-B device
Display
10-inch color TFT LCD, 1024 x 600 (WSVGA), 16M colors, single-touch resistive
Description

About the HMIET6500

The Schneider Electric HMIET6500 is a 10-inch touch panel in the Easy Harmony ET6 range, built around a 1024 x 600 (WSVGA) color TFT display with 16 million colors and single-touch resistive sensing. It runs on 24 V DC, connects via COM1, COM2, Ethernet, USB host/device, and is configured with Vijeo Designer Basic software for machine-level operator interfaces.

Certifications & Standards

  • CE
  • UL
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-1-201

Selection Notes

The HMIET6500 is the 10-inch member of the Easy Harmony ET6 line; pick it over the smaller or larger variants in the range when the panel cut-out and viewing distance call for a 10-inch screen specifically. Its WSVGA resolution and 16M-color display, combined with COM1, COM2, Ethernet, USB host/device, suit OEM machine HMIs that need Modbus or Uni-TE supervision without a separate gateway.

Applications

Typical use cases include packaging lines, HVAC skids, pump stations, and general machine tool interfaces where the panel is flush-mounted into an enclosure door and wired directly to the controller over serial or Ethernet.

Specification

Full specification

66 values · Last verified 30 Oct 2026

Main 4

Range of product Harmony ET6
Product or component type Touch panel screen
Software package Vijeo Designer Basic
Processor name ARM Cortex-A8

Complementary 25

Display size 10 inch
Display type Colour TFT LCD
Display colour 16 million colours
Display resolution 1024 x 600 pixels WSVGA
Touch panel Single touch analogue resistive
Brightness 16 levels
Character font ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
[Us] rated supply voltage 24 V DC +/- 20 %
Inrush current 30 A
Local signalling Status LED green, steady for operating, Status LED orange, steady for software starting up, Status LED red, steady for power supply (ON), Status LED, off for power supply (OFF)
Power consumption in W 11 W
Number of pages 200 application pages
Port Ethernet 10/100BASE
Memory description Device memory 256 MB, User data memory 256 MB, Backup memory 128 kB
Integrated connection type 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom, 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom, COM2 serial link (rate: 2400...187500 bps)bottom, 1 Ethernetbottom, 1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback
Supply External supply
Realtime clock Built-in 0...50 °C, Built-in 10...90 % RH
Downloadable protocols Modbus, Uni-TE, Third party protocols
Product brand Schneider Electric
Fixing mode By 4 screws, mounting on 1.6...5 mm thick panel
Cut-out dimensions 255 x 185 mm panel cut dimension
Height 201 mm
Width 271 mm
Depth 47 mm
Net weight 0.99 kg

Environment 14

Immunity to microbreaks 5 ms
Enclosure material PC
Front material Plastic
Standards IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-1-201
Product certifications CE, UL, EAC (pending), KC-Mark (pending)
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient air temperature for operation 0…50 °C
Ambient air temperature for storage -20…60 °C
Relative humidity 10…90 % non-condensing
Operating altitude 2000 m
IP degree of protection IP20 (rear panel) conforming to IEC 61131-2, IP65 (front panel) conforming to IEC 61131-2
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Vibration resistance +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 9.8 m/s² (f = 9…150 Hz)
Electromagnetic compatibility Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge)
Show all 66 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number HMIET6500
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 25.000 cm
Package 1 Length 37.000 cm
Package 1 Weight 1.557 kg
Unit Type of Package 2 S04
Number of Units in Package 2 5
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 8.602 kg
Shipping weight 0.99 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMIET6500

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • EAC
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-1-201
Quick answers

Questions about the HMIET6500

What is the HS code of HMIET6500 for customs?

The tariff (HS) code on file for HMIET6500 is 852859.

Where does HMIET6500 ship from, and how fast?

HMIET6500 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
