Part number
HMIET6401
$333.96 On request Dispatch — · From TürkiyeGet a Quote
Harmony ET6

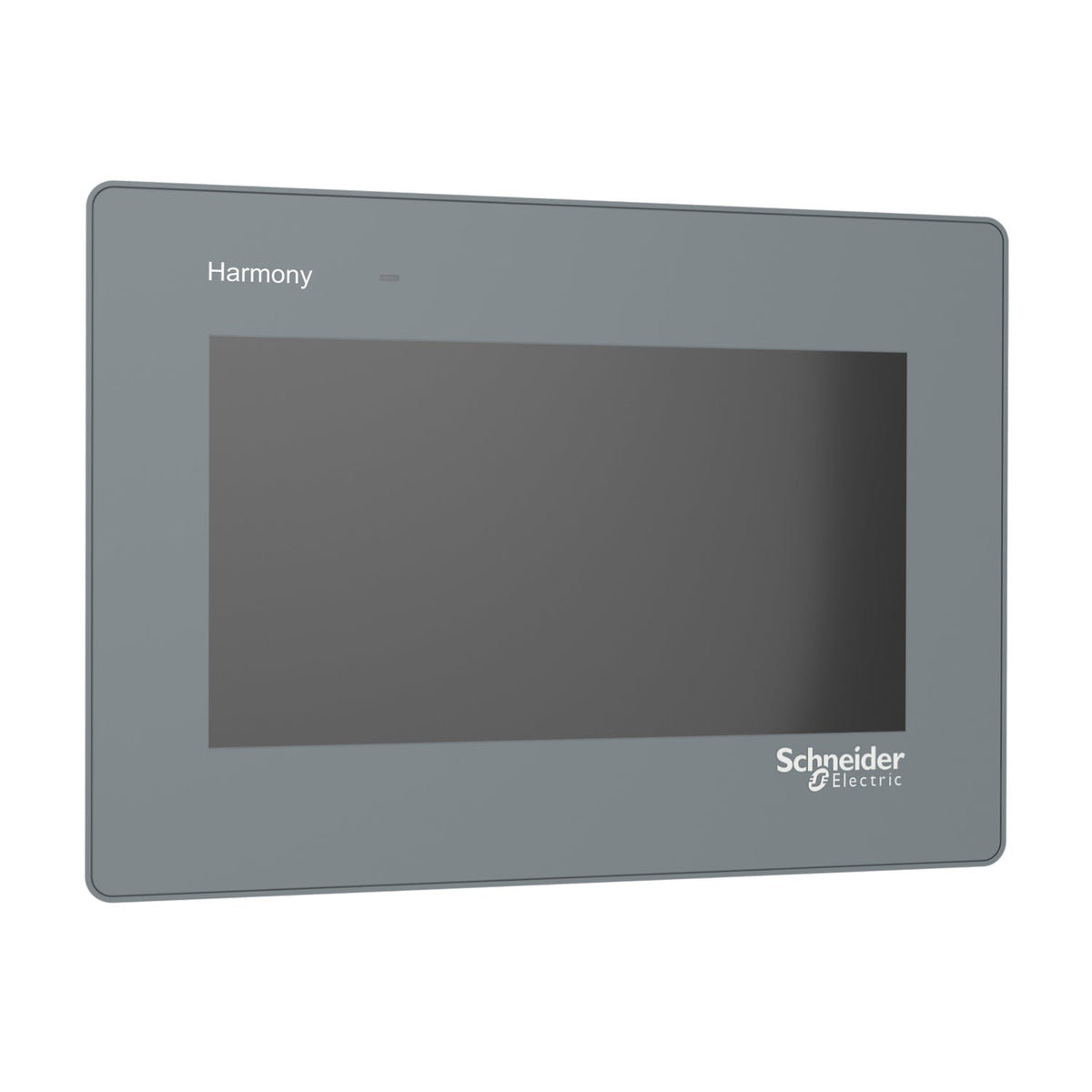

Schneider Electric HMIET6401 Easy Harmony ET6 7-inch Wide Touch Panel 800x480 16M Colors HMI Operator Panel

Schneider Electric HMIET6401 Easy Harmony ET6, 7-inch, 800 x 480, 16M colors, COM x2, USB.

Communication
COM1 (RS232C), COM2 (RS422/RS485), USB 2.0 Micro-B
Display
7-inch TFT, 800 x 480 (WVGA), 16M colors
EAN
3606481033437
Description

About the HMIET6401

The HMIET6401 is a Schneider Electric Easy Harmony ET6 touch panel: a 7-inch wide-screen HMI with 800 x 480 pixel resolution and 16 million colors. It is a single-touch analog resistive panel built around an 800 MHz ARM Cortex-A8 processor, with 256 MB of device memory and 24 V DC power input.

Certifications & Standards

  • CE
  • UL
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-1-201

Selection Notes

At 7 inches and 800 x 480 pixels, the HMIET6401 covers machine-level status and parameter screens where a compact panel footprint matters more than multi-window navigation. It carries COM1 (RS232C) and COM2 (RS422/RS485) but no Ethernet port; specify the HMIET6600 instead when the application needs an Ethernet connection alongside the larger 12-inch screen. Configuration runs through Vijeo Designer Basic, the same tool used across the Easy Harmony ET6 range, so screens built for this panel port directly to the ET6600 without redesign. The IP65-rated front panel supports flush panel mounting in an enclosure door with the stated 190 x 135 mm cut-out.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 4

Range of Product Harmony ET6
Product or Component Type Touch panel screen
Software package Vijeo Designer Basic
Processor name ARM Cortex-A8

Complementary 24

Display size 7 inch
Display Type Colour TFT LCD
Display colour 16 million colours
Display Resolution 800 x 480 pixels WVGA
Touch panel Single touch analogue resistive
Brightness 16 levels
Character font ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
[Us] rated supply voltage 24 V DC +/- 20 %
Inrush current 30 A
Local signalling Status LED green, steady operating, Status LED orange, steady software starting up, Status LED red, steady power supply (ON), Status LED, off power supply (OFF)
Power Consumption in W 9 W
Number of pages 200 application pages
Memory description Device memory 256 MB, User data memory 256 MB, Backup memory 128 kB
Integrated connection type 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C 2400...115200 bps)bottom, 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 2400...115200 bps)bottom, COM2 serial link 2400...187500 bps)bottom, 1 USB 2.0 type micro Bback
Supply External supply
Realtime clock Built-in 0...50 °C, Built-in 10...90 % RH
Downloadable protocols Modbus, Uni-TE, Third party protocols
Product brand Schneider Electric
Fixing mode By 4 screws 1.6...5 mm thick panel
Cut-out dimensions 190 x 135 mm panel cut dimension
Height 5.9 in (151 mm)
Width 8.1 in (206 mm)
Depth 1.8 in (45 mm)
Net Weight 1.32 lb(US) (0.60 kg)

Environment 14

Immunity to microbreaks 5 ms
Enclosure Material PC
Front material Plastic
Standards IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-1-201
Product Certifications CE, UL, EAC (pending), KC-Mark (pending)
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Ambient Air Temperature for Storage -4…140 °F (-20…60 °C)
Relative humidity 10…90 % non-condensing
Operating altitude 6561.68 ft (2000 m)
IP degree of protection IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel)
Shock resistance 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Vibration resistance +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz)
Electromagnetic compatibility Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge)
Show all 55 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number HMIET6401
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481033437

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMIET6401

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • EAC
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-1-201
Quick answers

Questions about the HMIET6401

What is the HS code of HMIET6401 for customs?

The tariff (HS) code on file for HMIET6401 is 852859.

What is the EAN of HMIET6401?

The EAN (GTIN) of HMIET6401 is 3606481033437.

Where does HMIET6401 ship from, and how fast?

HMIET6401 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
