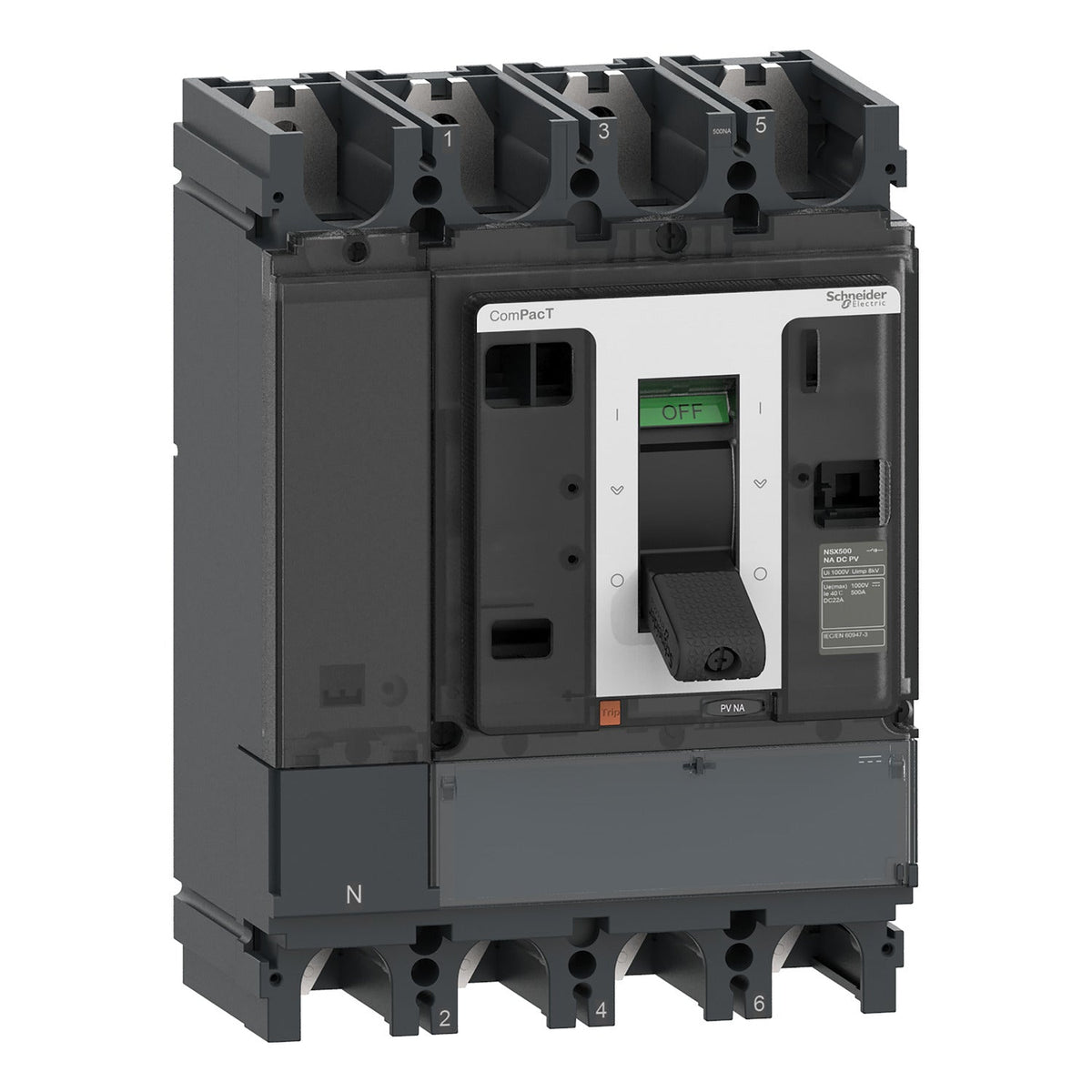

Schneider Electric C404400D1S ComPacT NSX400NA DC PV 4P 320 A 1000 V DC Switch Disconnector
ComPacT NSX400NA DC PV switch-disconnector, 4P 320 A at 1000 V DC, photovoltaic isolation.
Description
About the NSX400NA DC PV
About the NSX400NA DC PV
The Schneider Electric C404400D1S is a 4-pole ComPacT NSX400NA DC PV switch-disconnector rated 320 A (DC-22A) at 1000 V DC, built for photovoltaic DC distribution. It provides manual load-break isolation with a 6 kA short-time withstand and short-circuit making capacity, sized for the DC side of a solar array combiner or inverter input.
Certifications & Standards
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The C404400D1S is a switch-disconnector, not a circuit breaker, so it provides manual isolation of a PV DC string or inverter input but no overcurrent trip of its own; upstream fuses or a DC breaker still handle fault clearing. The 6 kA Icw/Icm rating and 1000 V DC insulation level size it for utility- and commercial-scale PV combiner boxes rather than low-voltage 600 V DC residential strings, where a lower-voltage ComPacT NSX switch-disconnector would be the better fit.
Specification
Full specification
Main 21
| Range | ComPacT |
|---|---|
| Product name | ComPacT NSX DC PV |
| Device short name | NSX400NA DC PV |
| Product or component type | Switch disconnector |
| Device application | Photovoltaic |
| Poles description | 4P |
| [Ith] conventional free air thermal current | 320 A at 65 °C |
| [Ie] rated operational current | DC-22A: 320 A DC 1000 V |
| [Ue] rated operational voltage | 1000 V DC |
| Network type | DC |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Utilisation category | DC-22A |
| Breaking capacity code | NA |
| Contact position indicator | Yes |
| Visible break | No |
| Mounting mode | Fixed |
| [Icw] rated short-time withstand current | 6 kA during 1 s |
| [Icm] rated short-circuit making capacity | 6 kA switch-disconnector alone |
| Control type | Toggle |
| [Ui] rated insulation voltage | 1000 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
Complementary 11
| Mounting support | Backplate |
|---|---|
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 45 mm |
| Mechanical durability | 5000 cycles |
| Electrical durability | 1000 cycles 1000 V DC In |
| Width (W) | 185 mm |
| Height (H) | 255 mm |
| Depth (D) | 110 mm |
| Net weight | 8.1 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
Environment 6
| IP degree of protection | IP40 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK07 conforming to IEC 62262 |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Show all 56 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | C404400D1S |
|---|---|
| Type designation | NSX400NA DC PV |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 10
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 29.000 cm |
| Package 1 Weight | 7.061 kg |
| Shipping weight | 8.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
