- Part number
- C125S4NAFM
Description
About the C125S4NAFM
About the C125S4NAFM

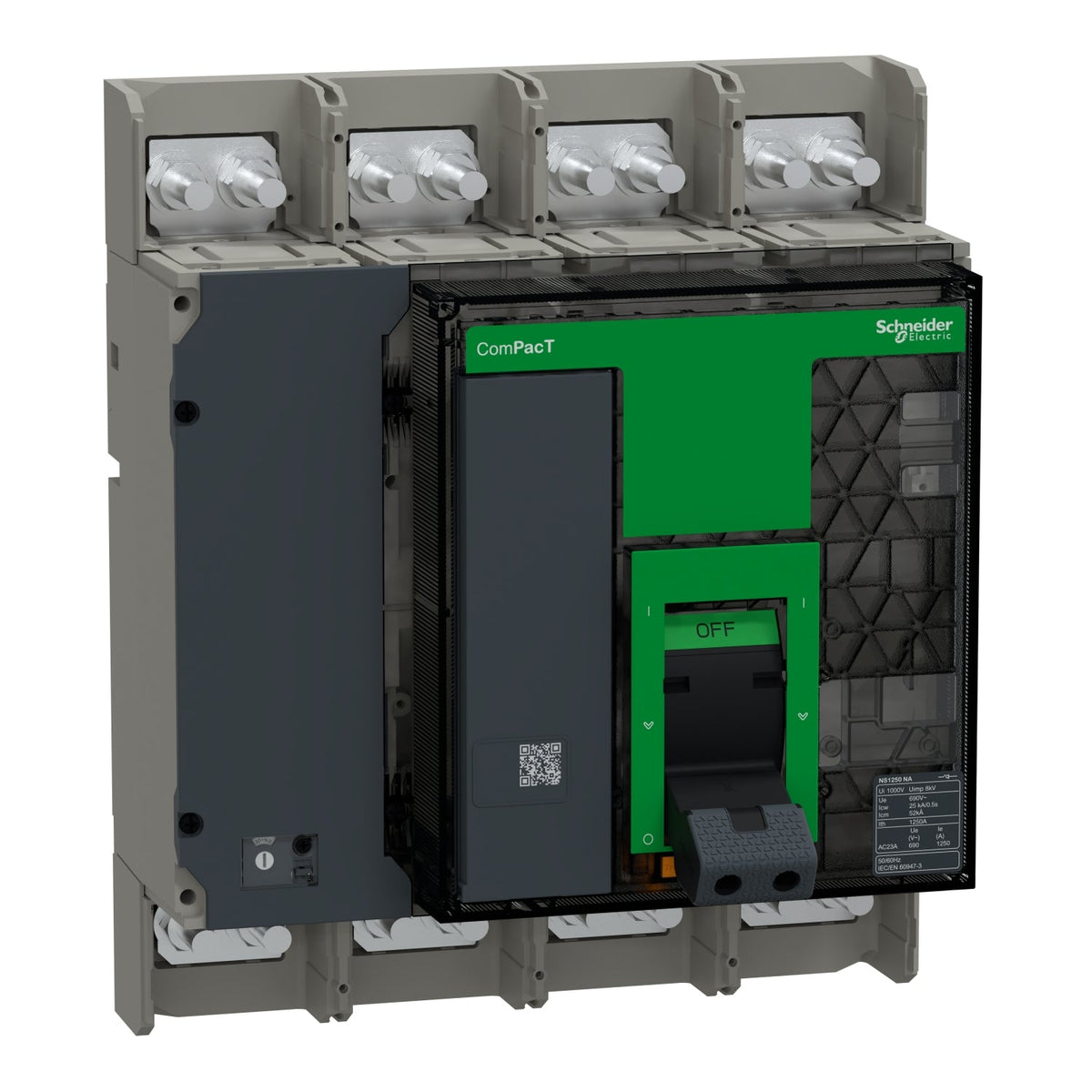

The Schneider Electric C125S4NAFM is a 4P ComPacT NS1250 NA switch-disconnector rated 1250 A (Ie, AC-23A) at up to 690 V AC, used to manually isolate and control low-voltage distribution circuits ahead of downstream protection devices. It is a fixed, front-connected device with a rated short-time withstand of 25 kA for 0.5 s and a short-circuit making capacity of 52 kA.
Certifications & Standards
- IECEE CB Scheme
- IEC 60947-3
Selection Notes
Use the 4P C125S4NAFM where the installation needs isolation on 4 conductors at 1250 A; pick the 3-pole version instead when the neutral conductor also needs a switched, isolatable pole. The 25 kA/0.5 s short-time withstand and 52 kA making capacity let this disconnector sit as a manually operated main incomer ahead of a ComPacT NSX breaker, without acting as a protection device itself.
Specification
Full specification
Main 7
| Product name | ComPacT NS new generation |
|---|---|
| Product or component type | Switch disconnector |
| Device application | Distribution |
| Poles description | 4P |
| Network type | AC |
| Breaking capacity code | NA |
| Suitability for isolation | Yes conforming to IEC 60947-3 |
Complementary 21
| Network frequency | 50/60 Hz |
|---|---|
| Control type | Manually operated |
| Mounting mode | Fixed |
| Upside connection | Front |
| Downside connection | Front |
| [Ie] rated operational current | AC-23A: 1250 A AC 50/60 Hz 220/240 V, AC-23A: 1250 A AC 50/60 Hz 380/415 V, AC-23A: 1250 A AC 50/60 Hz 440/480 V, AC-23A: 1250 A AC 50/60 Hz 500/525 V, AC-23A: 1250 A AC 50/60 Hz 660/690 V |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 1250 A at 60 °C |
| [Icw] rated short-time withstand current | 25 kA during 0.5 s conforming to IEC 60947-3, 4 kA during 20 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 52 kA 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| Contact position indicator | Yes |
| Visible break | No |
| Mechanical durability | 10000 cycles conforming to IEC 60947-3 |
| Electrical durability | 2000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3 |
| Connection pitch | 70 mm |
| Height | 280 mm |
| Width | 327 mm |
| Depth | 147 mm |
| Net weight | 18 kg |
Environment 7
| Standards | IEC 60947-3 |
|---|---|
| Product certifications | IECEE CB Scheme |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947-3 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Show all 58 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | C125S4NAFM |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 40.000 cm |
| Package 1 Length | 60.000 cm |
| Package 1 Weight | 15.311 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 44.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 72.244 kg |
| Shipping weight | 18.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
