Part number
C125S3NAFM
$1,712.18 On request Dispatch — · From TürkiyeGet a Quote

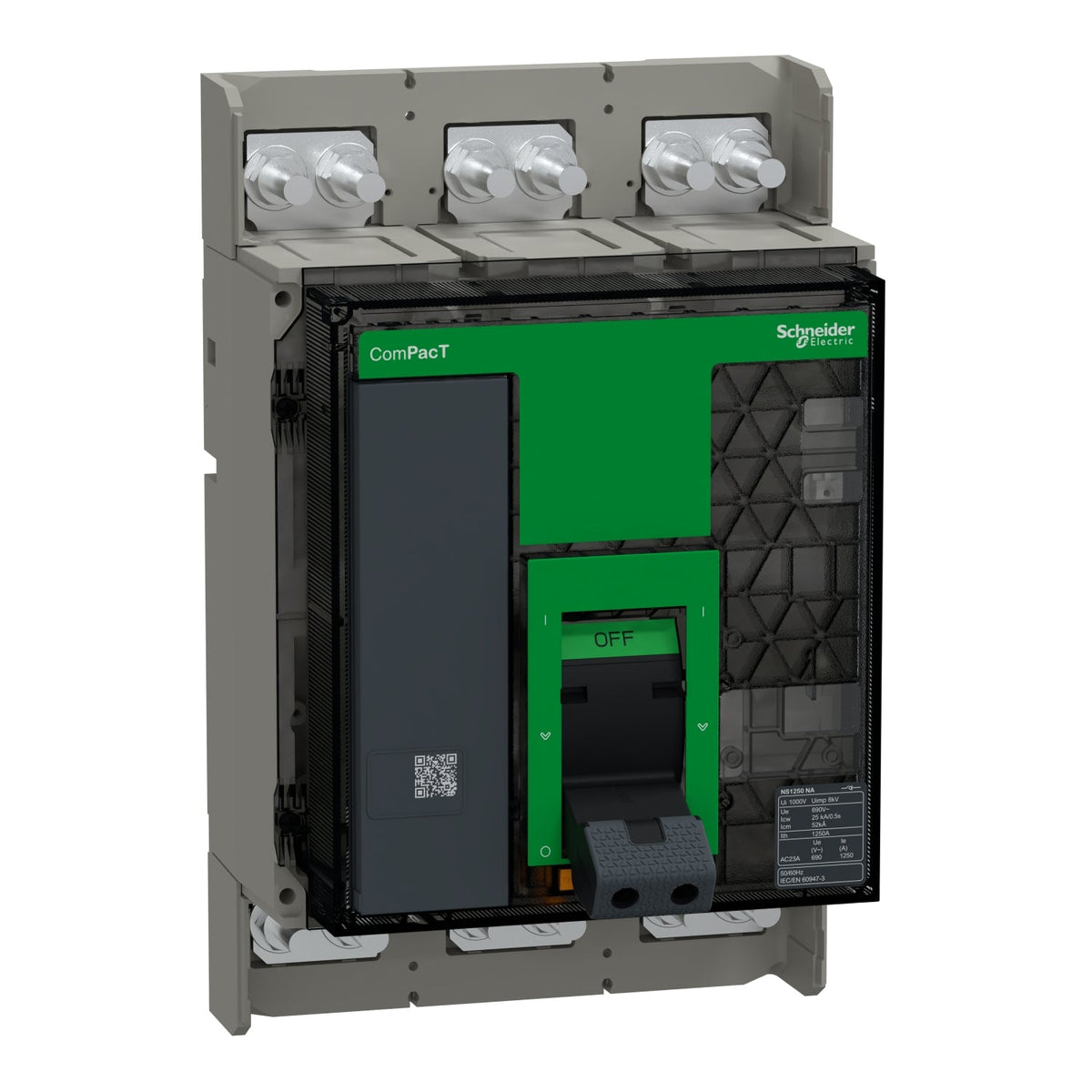

Schneider Electric C125S3NAFM ComPacT NS1250 NA 3P 1250 A Fixed Manually Operated Switch Disconnector

Schneider Electric C125S3NAFM - ComPacT NS1250 NA, 3P, 1250 A, fixed, manually operated.

Rated current
1250 A
Rated operational voltage
690 V AC
Description

About the C125S3NAFM

The Schneider Electric C125S3NAFM is a 3P ComPacT NS1250 NA switch-disconnector rated 1250 A (Ie, AC-23A) at up to 690 V AC, used to manually isolate and control low-voltage distribution circuits ahead of downstream protection devices. It is a fixed, front-connected device with a rated short-time withstand of 25 kA for 0.5 s and a short-circuit making capacity of 52 kA.

Certifications & Standards

  • IECEE CB Scheme
  • IEC 60947-3

Selection Notes

Use the 3P C125S3NAFM where the installation needs isolation on 3 conductors at 1250 A; pick the 4-pole version instead when the neutral conductor also needs a switched, isolatable pole. The 25 kA/0.5 s short-time withstand and 52 kA making capacity let this disconnector sit as a manually operated main incomer ahead of a ComPacT NSX breaker, without acting as a protection device itself.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 7

Product name ComPacT NS new generation
Product or component type Switch disconnector
Device application Distribution
Poles description 3P
Network type AC
Breaking capacity code NA
Suitability for isolation Yes conforming to IEC 60947-3

Complementary 21

Network frequency 50/60 Hz
Control type Manually operated
Mounting mode Fixed
Upside connection Front
Downside connection Front
[Ie] rated operational current AC-23A: 1250 A AC 50/60 Hz 220/240 V, AC-23A: 1250 A AC 50/60 Hz 380/415 V, AC-23A: 1250 A AC 50/60 Hz 440/480 V, AC-23A: 1250 A AC 50/60 Hz 500/525 V, AC-23A: 1250 A AC 50/60 Hz 660/690 V
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current 1250 A at 60 °C
[Icw] rated short-time withstand current 25 kA during 0.5 s conforming to IEC 60947-3, 4 kA during 20 s conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 52 kA 690 V AC at 50/60 Hz
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Contact position indicator Yes
Visible break No
Mechanical durability 10000 cycles conforming to IEC 60947-3
Electrical durability 2000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
Connection pitch 70 mm
Height 210 mm
Width 327 mm
Depth 147 mm
Net weight 14 kg

Environment 7

Standards IEC 60947-3
Product certifications IECEE CB Scheme
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947-3
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Show all 52 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number C125S3NAFM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 40.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 12.308 kg
Shipping weight 14.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C125S3NAFM

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CB Scheme
  • IEC 60947-3
Quick answers

Questions about the C125S3NAFM

What is the rated current of C125S3NAFM?

The rated current of C125S3NAFM is 1250 A.

Which supply voltage is C125S3NAFM rated for?

The rated operational voltage of C125S3NAFM is 690 V AC.

What is the HS code of C125S3NAFM for customs?

The tariff (HS) code on file for C125S3NAFM is 853650.

Where does C125S3NAFM ship from, and how fast?

C125S3NAFM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
