Schneider Electric BMXNOM0200 Modicon X80 Serial Link Module 2x RS232/RS485 Ports PLC Communication Module

% $-604.47

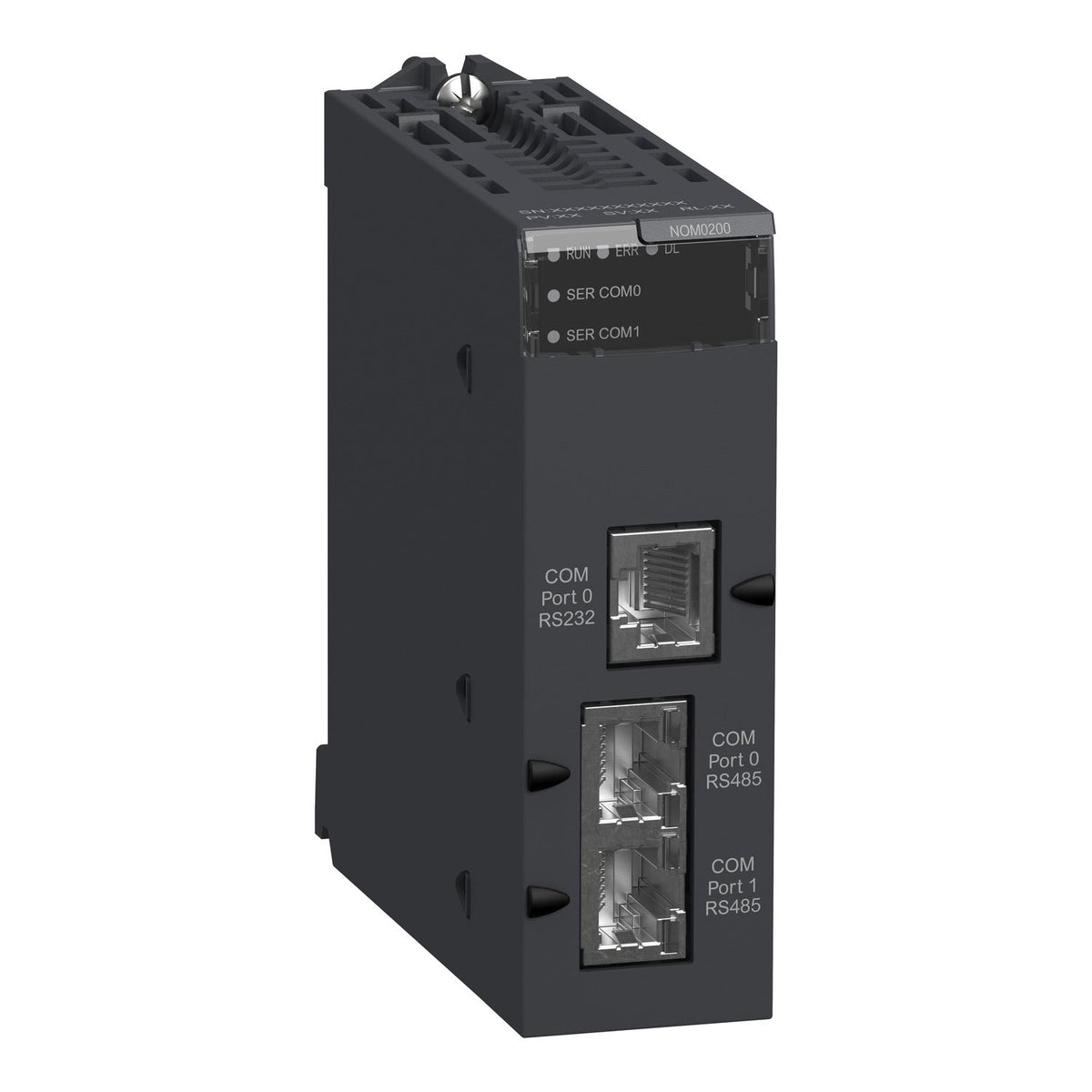

Schneider Electric BMXNOM0200 Modicon X80 Serial Link Module, 2x RS232/RS485 Ports
Schneider Electric BMXNOM0200 Modicon X80 Serial Link Module, 2x RS232/RS485 Ports

Schneider Electric BMXNOM0200 Modicon X80 Serial Link Module 2x RS232/RS485 Ports PLC Communication Module

Brand: Schneider Electric
Reference No: BMXNOM0200
Catalog No: BMXNOM0200
Series: Modicon X80
Tariff Code (HS): 851762
Communication: RS232/RS485 RJ45, Modbus RTU/ASCII master-slave, character mode, up to 115.2 kbit/s
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$604.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric BMXNOM0200 is a Modicon X80 serial link module with two RS232/RS485 ports supporting both Modbus and character mode, connecting through RJ45 at up to 115.2 kbit/s (RS232) or 57.6 kbit/s (RS485). It draws 80 mA at 24 V DC, carries an IP20 rating, and weighs 0.23 kg.

Technical Specifications

Reference BMXNOM0200
GTIN 3595864024431
Brand Schneider Electric
Range Modicon X80
Product Type Serial links module
Concept Serial link
Integrated Connection RS232 RJ45, 115.2 kbit/s, 8 wires; RS485 RJ45, 57.6 kbit/s, 1 twisted pair
Supply Internal, via rack
Current Consumption 80 mA at 24 V DC
Net Weight 0.23 kg
Ambient Air Temperature, Operation 0...60 degrees C
Relative Humidity 10...95%, non-condensing
IP Degree of Protection IP20
Local Signalling ERR, RUN, SER COM 0, SER COM 1 LEDs
Country of Origin United States (US)

Certifications & Standards

  • CE
  • UL 508
  • EN 61131-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61010-2-201

Selection Notes

Use the BMXNOM0200 to add two independent serial ports to a Modicon X80/M340 rack for Modbus RTU/ASCII master-slave links or raw character-mode communication with third-party serial devices. Running a port in character mode instead of Modbus hands the application full control of the byte stream for non-Modbus protocols.

Applications

Serial connectivity for Modicon X80/M340 PACs linking to Modbus RTU/ASCII field devices, third-party controllers, or metering/instrumentation equipment over RS232 or RS485.

Technical Details

Short Description
Modicon X80 serial link module, 2 RS232/RS485 ports, Modbus RTU/ASCII, IP20.
Mounting Type
Modicon X80 rack-mount module
Protection Type
IP20
Catalog No
BMXNOM0200
Delivery Date (Days)
30 days
Model Number
Serial Link Module
Tariff Code
851762
