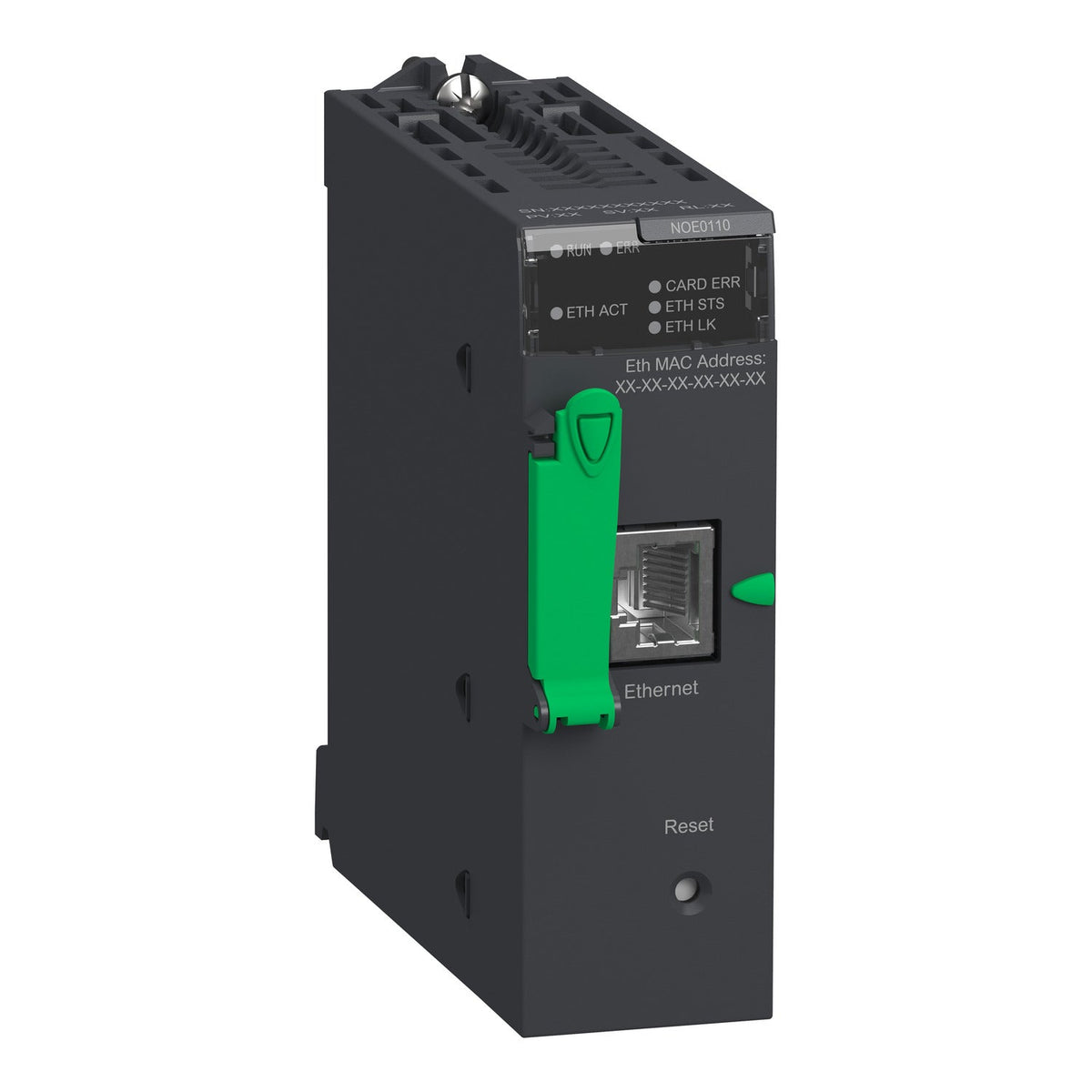

The Schneider Electric BMXNOE0110 is a Modicon M340 Ethernet TCP/IP network module with one RJ45 10/100 Mbit/s port, 16 MB of internal RAM for user web pages, and a supplied flash memory card for application storage. It draws 90 mA at 24 V DC, carries an IP20 rating, and adds a SOAP XML web service on top of Modbus TCP messaging and I/O scanning.
Specify the BMXNOE0110 over the base Ethernet module when the application needs onboard RAM for larger, field-editable web pages or a SOAP XML web service for external system integration; otherwise a flash-card-only Ethernet module covers Modbus TCP messaging and I/O scanning at the same 90 mA current draw.
Ethernet TCP/IP connectivity for Modicon M340 PACs that need onboard-RAM diagnostic web pages or SOAP XML integration with SCADA and MES systems, alongside Modbus TCP messaging and I/O scanning.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Product or Component Type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Protective treatment | TC |
| Communication service | Bandwidth management, FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, Web server configurable, Data Editor (via PC, pocket PC or PDA terminal), SOAP XML Web service (server) |
|---|---|
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M), Internal RAM 16000 kB |
| Memory usage | User web page size internal RAM, Activating the standard web server supplied Flash memory card (BMXRWSC016M), Application saving supplied Flash memory card (BMXRWSC016M) |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (green) for processor running (RUN), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (red) for data rate (ETH 100), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR) |
| Control Type | RESET push-button cold restart |
| Current consumption | 90 mA 24 V DC |
| Module format | Standard |
| Net Weight | 0.4 lb(US) (0.2 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Part number | BMXNOE0110 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863972856 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BMXNOE0110 is 851762.
The EAN (GTIN) of BMXNOE0110 is 3595863972856.
BMXNOE0110 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
