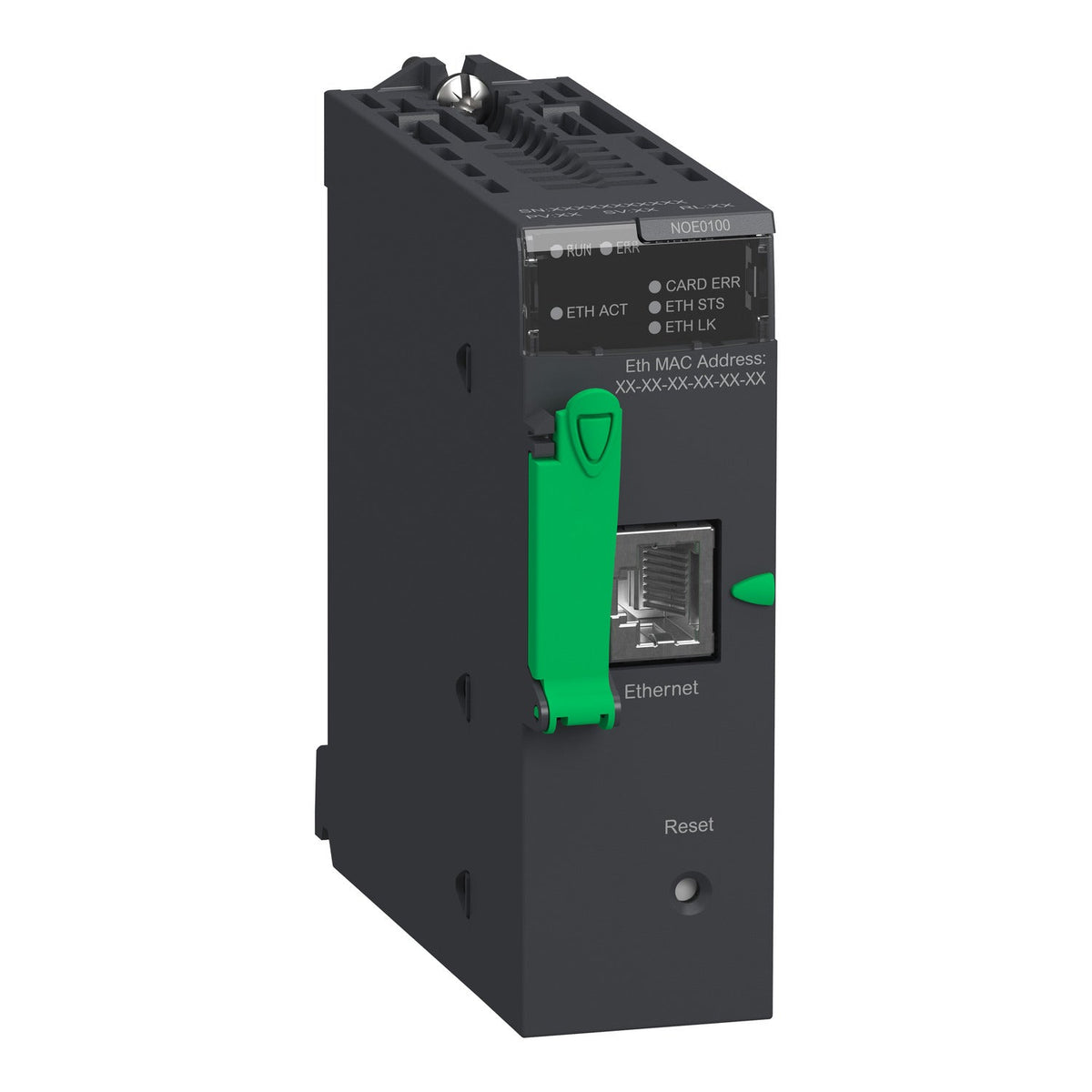

The Schneider Electric BMXNOE0100 is a Modicon M340 Ethernet TCP/IP network module with one RJ45 10/100 Mbit/s port, supplied with a flash memory card for application and web-server storage. It draws 90 mA at 24 V DC, carries an IP20 rating, and runs Modbus TCP messaging, I/O scanning, and a configurable web server.
Specify the BMXNOE0100 to add a single Ethernet TCP/IP port with Modbus TCP messaging and I/O scanning to a Modicon M340 rack; the supplied flash memory card stores the application and activates the onboard web server without an extra memory purchase. Choose a module with onboard RAM web-page storage instead when the application needs a larger, field-editable diagnostic web interface.
Ethernet TCP/IP connectivity for Modicon M340 PACs in process, water/wastewater, cement, manufacturing, and infrastructure applications that need Modbus TCP messaging, I/O scanning, and remote web-based diagnostics.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Product or Component Type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30 |
| Protective treatment | TC |
| Communication service | Bandwidth management, Data Editor (via PC terminal), FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, Web server configurable |
|---|---|
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M) |
| Memory usage | Application saving, Activating the standard web server |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (green) for processor running (RUN), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (red) for data rate (ETH 100), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR) |
| Control Type | RESET push-button cold restart |
| Current consumption | 90 mA 24 V DC |
| Module format | Standard |
| Net Weight | 0.4 lb(US) (0.2 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Part number | BMXNOE0100 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863910674 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BMXNOE0100 is 851762.
The EAN (GTIN) of BMXNOE0100 is 3595863910674.
BMXNOE0100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
