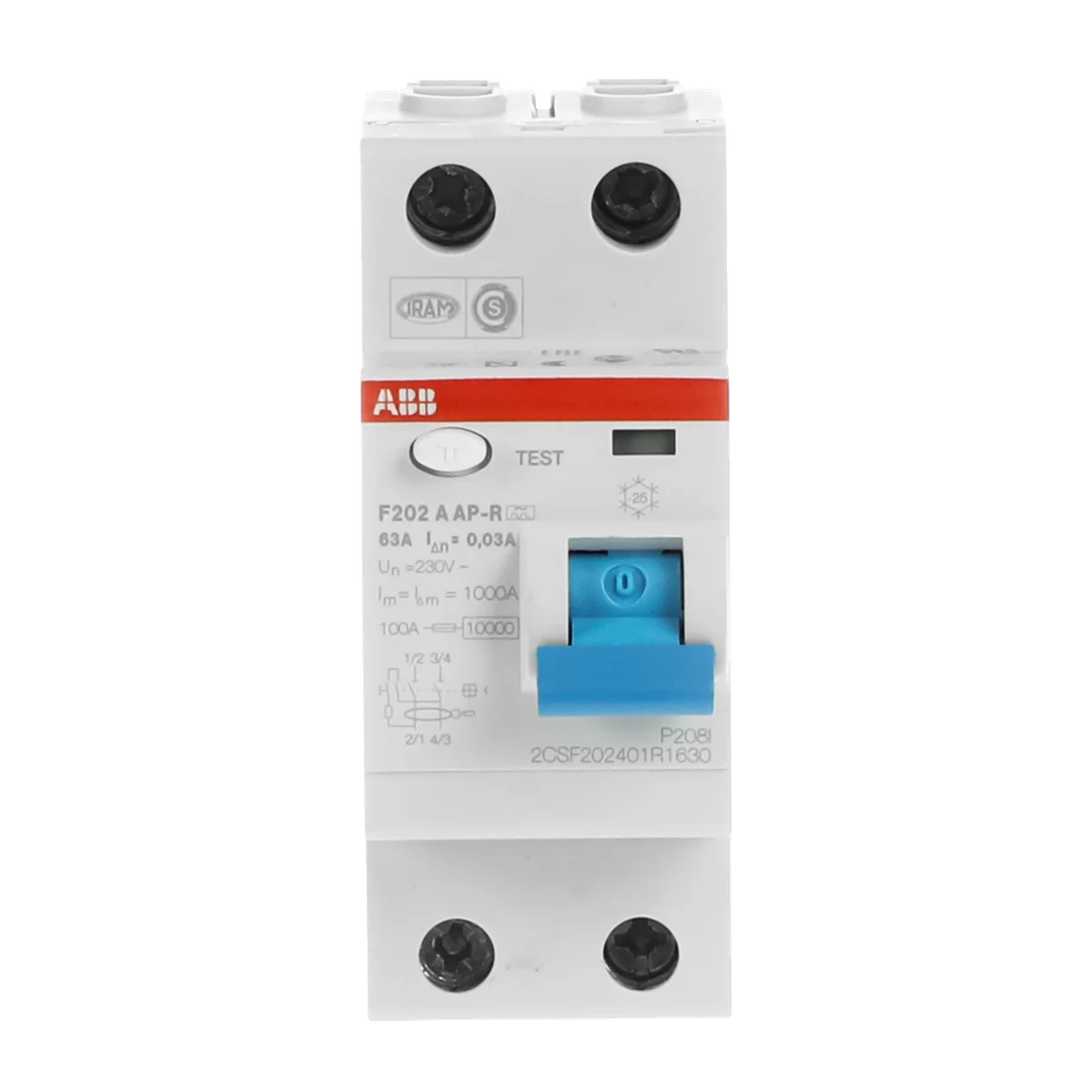

ABB 2CSF202401R1630 F202 A-63/0.03 AP-R 2P 63A 30mA Type A-APR Residual Current Circuit Breaker

The ABB F202 A-63/0.03 AP-R (SKU: 2CSF202401R1630) is a 2-pole residual current circuit breaker (RCCB) from the F200 series, rated at 63 A with a 30 mA sensitivity, designed for Type A-APR protection. Engineered for DIN-rail installation, the F202 A-63/0.03 AP-R delivers reliable earth-fault protection against both sinusoidal and pulsating DC fault currents in residential, commercial, and industrial control panel applications.

Technical Specifications

Certifications & Standards

• IEC 61008: International standard for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses
• EN 61008: European harmonised standard equivalent to IEC 61008 for RCCBs
• IEC 60068-2: Environmental testing standard covering durability under temperature, humidity, and mechanical stress
• EN 45555-82: Specific requirements under the European ecodesign framework for networked standby and related functions
• EN 45555: General methods for the assessment of the energy efficiency and other resource aspects of energy-related products
• CSA: Canadian Standards Association certification confirming compliance with North American safety requirements
• RoHS: Restriction of Hazardous Substances — free from lead, mercury, cadmium and other restricted substances
• REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals — compliant
• WEEE: Waste Electrical and Electronic Equipment directive compliance for responsible end-of-life recycling

Applications & Use Cases

• Personal protection against electric shock in residential distribution boards
• Earth-fault protection in commercial building automation and control panels
• Protection of circuits supplying frequency converters, UPS systems, and other loads generating pulsating DC fault currents (Type A-APR)
• Industrial automation panels requiring selective or time-delayed residual current protection
• Final circuits in industrial facilities where DIN-rail compact footprint is required
