ABB 2CSF202401R1400 F202 A-40/0.03 AP-R 2P 40A 30mA Residual Current Circuit Breaker

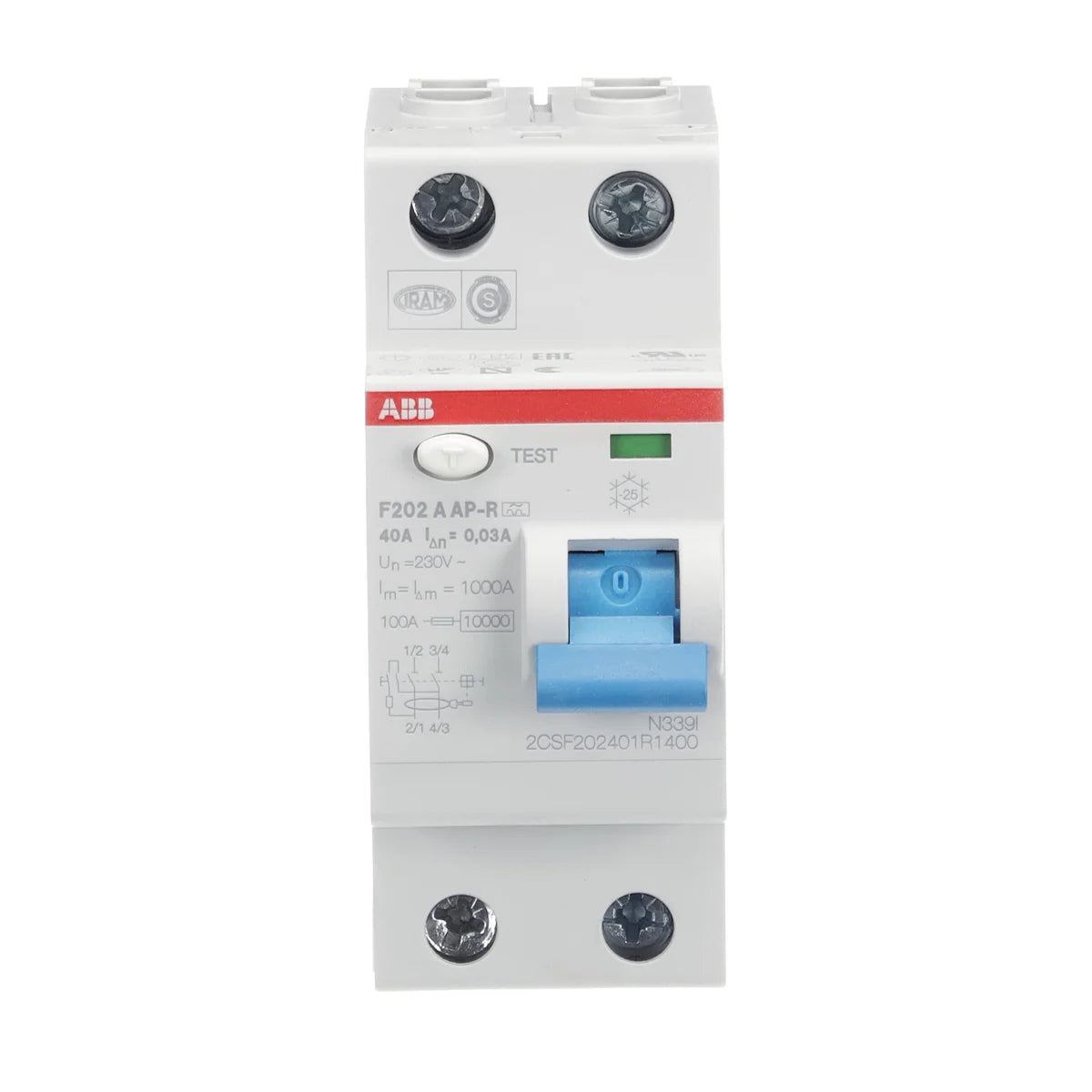

The ABB F202 A-40/0.03 AP-R (SKU: 2CSF202401R1400) is a 2-pole 40 A residual current circuit breaker (RCCB) from ABB's trusted F200 series, designed to provide reliable earth-fault and personal-shock protection in residential and industrial control panels. With a 30 mA rated residual current and DIN-rail mounting, the F202 A-40/0.03 AP-R delivers precision protection in a compact 35 mm × 85 mm × 69 mm footprint weighing only 200 g.

Technical Specifications

Certifications & Standards

• IEC 61008: International standard for residual current operated circuit breakers without integral overcurrent protection (RCCBs) for household and similar uses
• EN 61008: European harmonised standard equivalent to IEC 61008, confirming compliance for the EU market
• IEC 60068-2: Environmental testing standard covering robustness under climatic and mechanical stress conditions
• EN 45555-82: Standard addressing end-of-life and sustainability criteria for electrical and electronic equipment
• EN 45555: General methods for the assessment of the ability of electrical and electronic products to be repaired, reused, or recycled
• CSA: Canadian Standards Association certification confirming product safety compliance for North American markets
• RoHS: Restriction of Hazardous Substances — confirms the product is free from restricted hazardous materials
• REACH: EU chemical regulation compliance, confirming no substances of very high concern above threshold levels
• WEEE: Waste Electrical and Electronic Equipment directive compliance for responsible end-of-life disposal
• CE: Declaration of conformity with all applicable EU directives, mandatory for the European Economic Area

Applications & Use Cases

• Residential and commercial distribution boards requiring personal shock protection
• Industrial control panels with DIN-rail mounted protective devices
• Final circuit protection in offices, retail, and light industrial premises
• Earth-leakage detection in automation and motor control centres
• Protection of socket-outlet circuits per IEC wiring regulations
