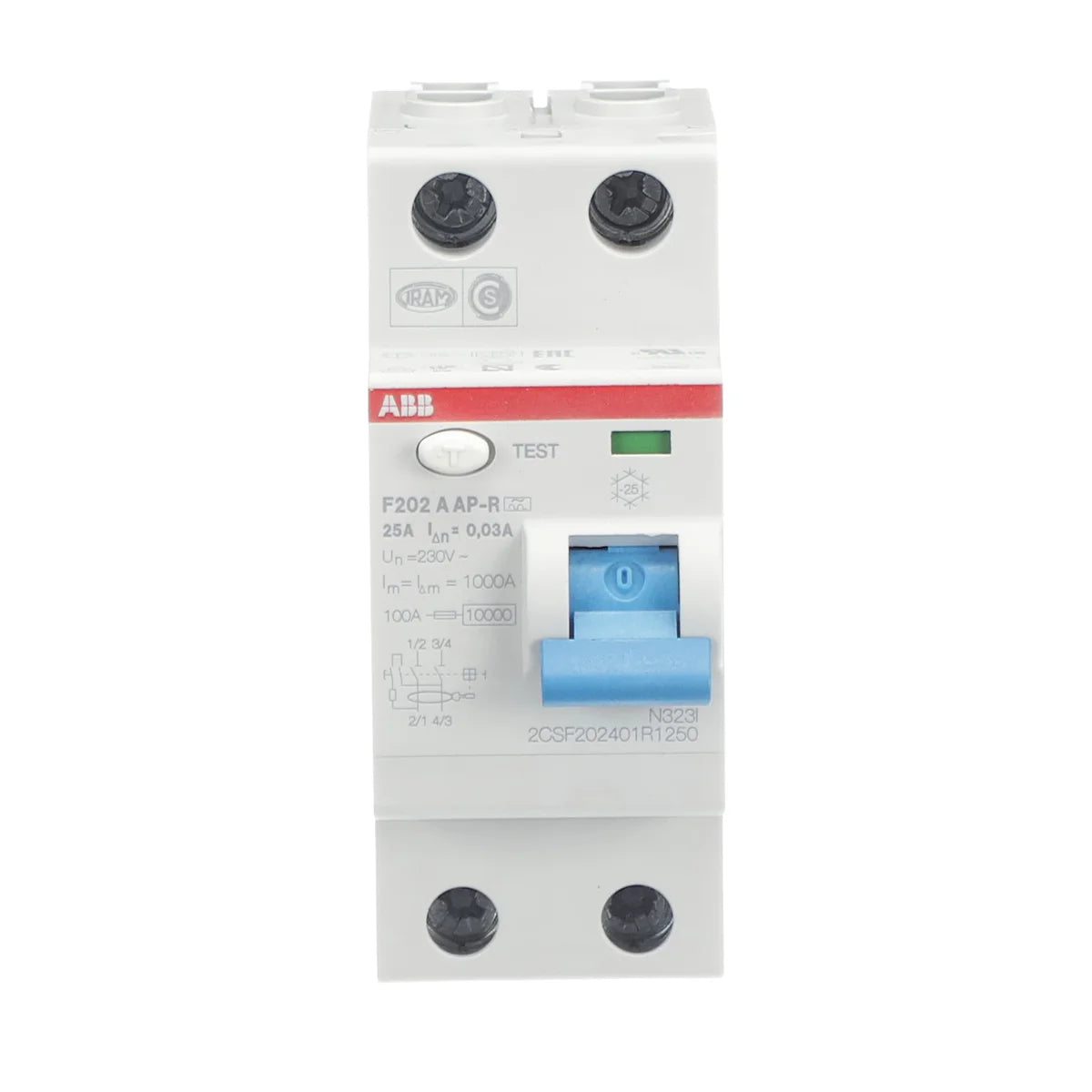

ABB 2CSF202401R1250 F202 A-25/0.03 AP-R 2P 25A 30mA Type A-APR Residual Current Circuit Breaker

The ABB F202 A-25/0.03 AP-R (SKU: 2CSF202401R1250) is a 2-pole, 25A residual current circuit breaker (RCCB) from the F200 series, designed to provide reliable personal protection and fire prevention in industrial and commercial installations. Featuring a 30mA trip sensitivity and Type A-APR classification, the F202 A-25/0.03 AP-R detects both sinusoidal and pulsating DC residual currents, making it suitable for modern electronic load environments. DIN-Rail mounted and compact at 35mm × 85mm × 69mm, this RCCB integrates seamlessly into standard control panels and distribution boards.

Technical Specifications

Certifications & Standards

• IEC 61008: International standard for residual current operated circuit breakers without integral overcurrent protection for household and similar uses
• EN 61008: European harmonised standard for RCCBs, ensuring compliance with EU low-voltage directive requirements
• IEC 60068-2: Environmental testing standard covering mechanical and climatic robustness across operating conditions
• EN 45555-82: European standard addressing specific end-of-life and sustainability performance requirements
• EN 45555: General methods for the assessment of the ability of electrical and electronic household and office equipment to be repaired, reused, and recycled
• CSA: Canadian Standards Association certification confirming compliance with North American safety requirements
• RoHS: Restriction of Hazardous Substances directive — free from lead, mercury, cadmium, and other restricted substances
• REACH: European chemicals regulation compliance, confirming safe substance use in manufacturing
• WEEE: Waste Electrical and Electronic Equipment directive compliance for responsible end-of-life disposal

Applications & Use Cases

• Personal protection against electric shock in residential, commercial, and light industrial distribution boards
• Fire prevention through detection of low-level earth leakage currents in final circuits
• Protection of circuits supplying modern electronic loads (variable speed drives, IT equipment) where pulsating DC fault currents may occur
• DIN-Rail installation in standard switchgear enclosures and control panels up to 25A
• Building installations requiring Type A sensitivity per IEC 61008 and CSA-certified equipment
