Part number
2CDS651061R0405
Model no
BMS611B40
$10.47 On request Dispatch — · From TürkiyeGet a Quote

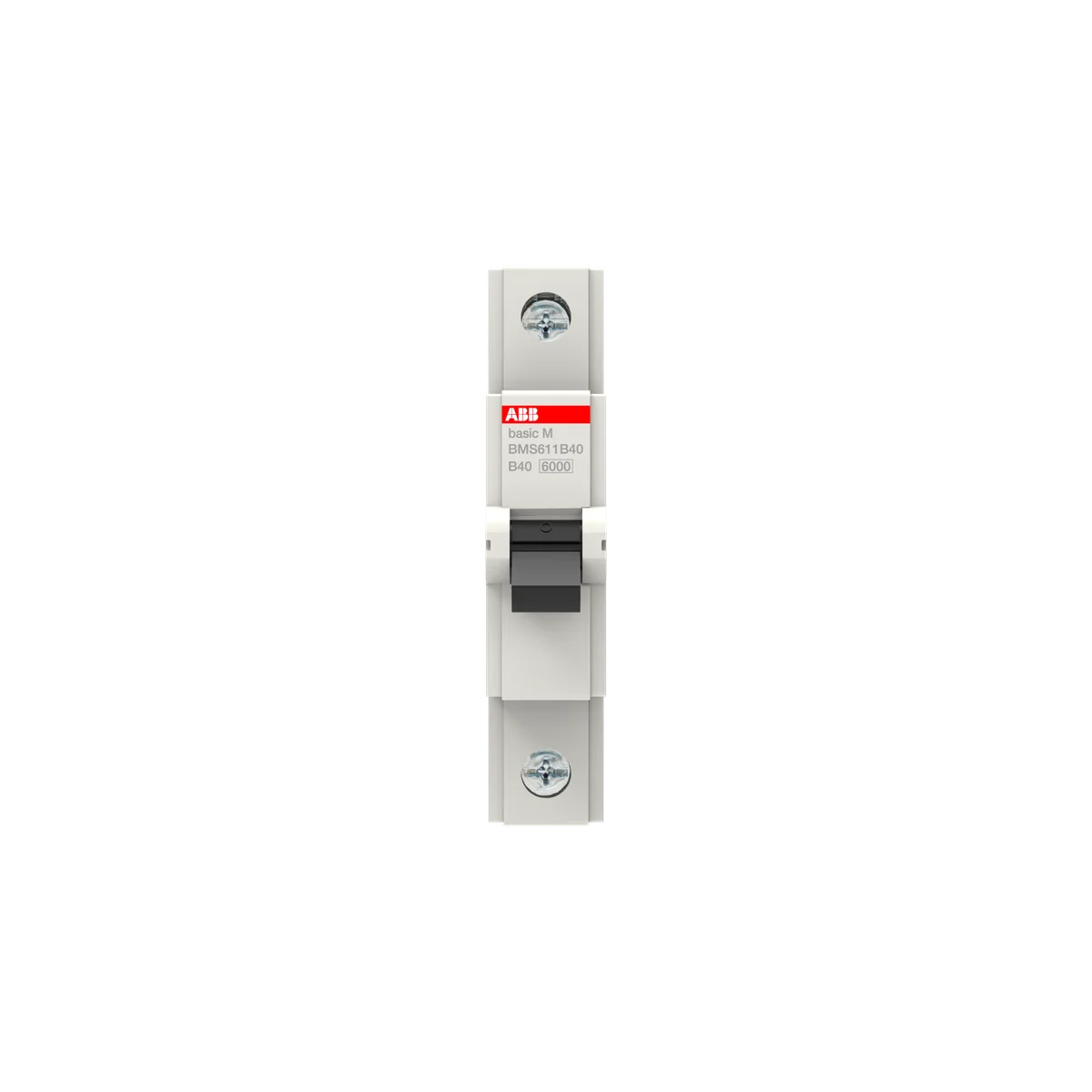

ABB 2CDS651061R0405 BMS611B40 1P 40A 6kA B-Curve DIN Rail Miniature Circuit Breaker

Rated current
40 A
Rated operational voltage
230 V AC
Poles
1P
EAN
4016779049405
Other ratings in ABB Basic M All 7 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
16 2CDS651061R0165 On request $8.05
20 2CDS651061R0205 On request $8.05
25 2CDS651061R0255 On request $8.05
32 2CDS651061R0325 On request $10.05
40 2CDS651061R0405This part On request $10.47
Description

About the BMS611B40

The ABB BMS611B40 miniature circuit breaker (MCB), catalog number BMS611B40 (SKU 2CDS651061R0405), is a 1-pole, 40 A, B-curve device from the Basic M BMS series delivering 6 kA breaking capacity at 230/400 V AC. Designed for DIN rail installation, it provides reliable overcurrent and short-circuit protection in residential, commercial, and light industrial control panel applications.

Certifications & Standards

  • IEC 60898-1: Miniature circuit breakers for overcurrent protection in household and similar installations
  • IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial use)
  • IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
  • IEC/EN 60664: Insulation coordination standard for low-voltage equipment
  • EN 60664: European adoption of IEC 60664 insulation coordination standard
  • IEC 60898: General standard for circuit breakers for overcurrent protection
  • IEC 60947: Low-voltage switchgear and controlgear family of standards
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
  • WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU recycling requirements
  • TSCA: Toxic Substances Control Act — compliant with US chemical safety requirements

Applications & Use Cases

  • Final circuit protection in residential and commercial distribution boards
  • Control panel and automation cabinet overcurrent protection
  • Light industrial machinery branch circuit protection
  • Protection of resistive and slightly inductive loads (B-curve)
  • Single-phase supply line protection in light commercial installations
Specification

Full specification

57 values · Last verified 30 Oct 2026

Technical 12

Energy Limiting Class 3
Electrical Endurance 4000 AC cycle
Mechanical Endurance 10000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2 N·m
Actuator Marking I / O
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Flexible 1 ... 16 mm², Rigid 1 ... 25 mm²
Wire Stripping Length 12.5 mm
Actuator Type Toggle

Electrical 10

Tripping Characteristic B
Rated Operational Voltage acc. to IEC 60898-1 230 V, acc. to IEC 60947-2 440 V
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Input Voltage Type AC
Rated Current (In) 40 A
Rated Short-Circuit Capacity (AC) 6 kA, (230 / 400 V AC) 6 kA, (230 V) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss at Rated Operating Conditions per Pole 4.8 W
Overvoltage Category III

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business
Show all 57 specifications ↓ Show less ↑29 more values in Identification, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS651061R0405
Type designation BMS611B40
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779049405
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 12 piece
Package Level 1 Gross Weight 1.2 kg

Environmental 3

Ambient Air Temperature Operation -5 ... +55 °C, Storage -40 ... +70 °C
Degree of Protection IP20, Enclosure with Cover IP40
Pollution Degree 2

Dimensions 6

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 93 g
Built-In Depth (t2) 69 mm

Installation 1

Instructions and Manuals No document needed

External Classifications and Standards 4

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC 60898-1

Logistics 4

Shipping weight 0.093 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS651061R0405

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 7 ratings in ABB Basic M

ABB ABB Basic M series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS651061R0065 BMS611B06 On request — $9.66 Quote
10 A 2CDS651061R0105 BMS611B10 On request — $8.05 Quote
16 A 2CDS651061R0165 BMS611B16 On request — $8.05 Quote
20 A 2CDS651061R0205 BMS611B20 On request — $8.05 Quote
25 A 2CDS651061R0255 BMS611B25 On request — $8.05 Quote
32 A 2CDS651061R0325 BMS611B32 On request — $10.05 Quote
40 A 2CDS651061R0405 This part BMS611B40 On request — $10.47 Quote
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC 60898-1
Quick answers

Questions about the BMS611B40

What is the rated current of BMS611B40?

The rated current of BMS611B40 is 40 A.

Which supply voltage is BMS611B40 rated for?

The rated operational voltage of BMS611B40 is 230 V AC.

What is the HS code of BMS611B40 for customs?

The tariff (HS) code on file for BMS611B40 is 853620.

What is the EAN of BMS611B40?

The EAN (GTIN) of BMS611B40 is 4016779049405.

Where does BMS611B40 ship from, and how fast?

BMS611B40 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
