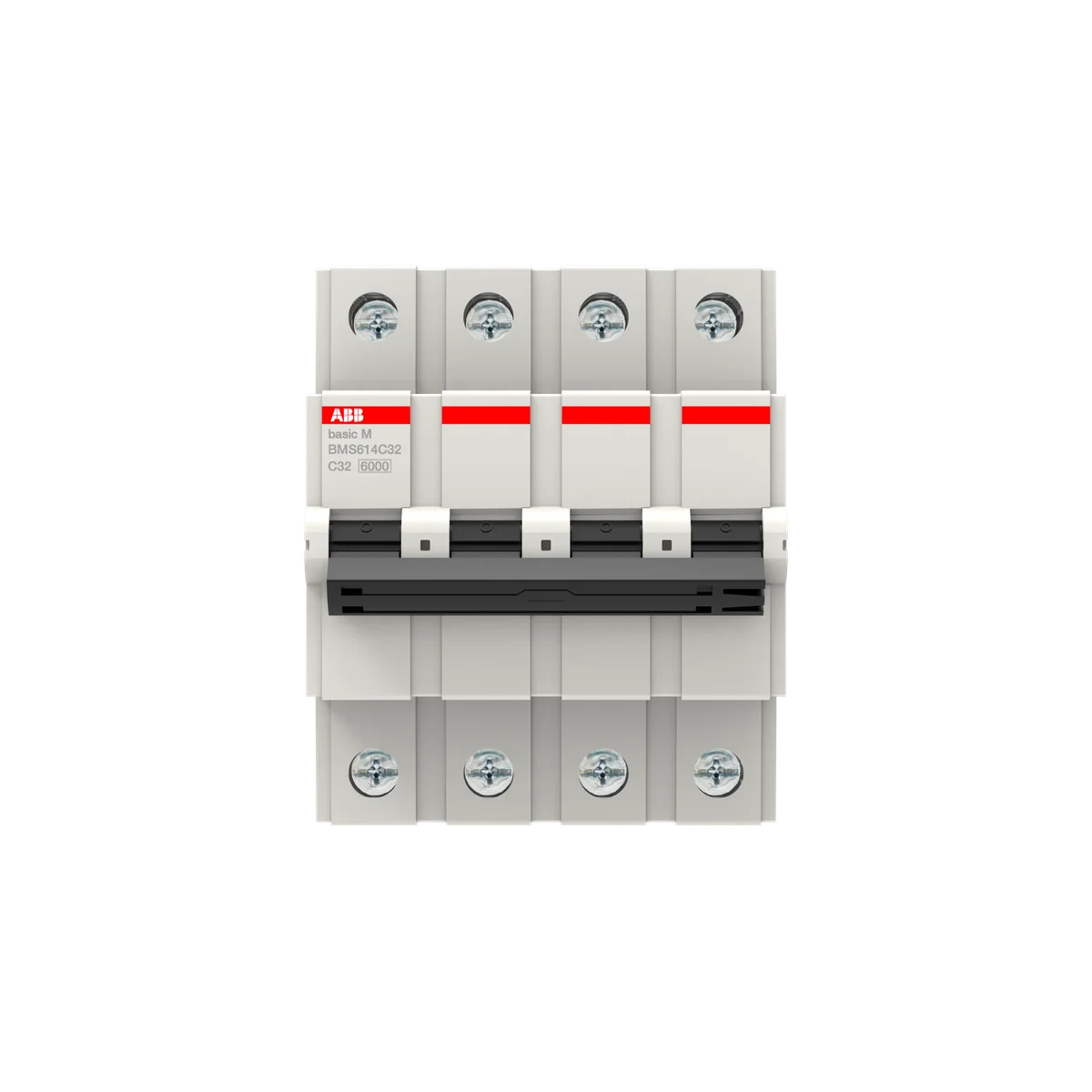

ABB 2CDS654061R0324 BMS614C32 4P 32A 6kA 400V AC Miniature Circuit Breaker

The ABB BMS614C32 (SKU: 2CDS654061R0324) is a 4-pole miniature circuit breaker from the Basic M BMS series, rated at 32 A and 400 V AC with a breaking capacity of 6 kA at 400 V AC per IEC 60898-1. Designed for DIN rail mounting, this MCB delivers reliable overcurrent and short-circuit protection in residential, commercial, and light industrial control panel installations. With a compact footprint of 70 × 88 × 69 mm and a weight of just 372 g, the BMS614C32 is an efficient choice for space-constrained distribution boards.

Technical Specifications

Certifications & Standards

• IEC 60898-1: Miniature circuit breakers for household and similar installations
• IEC 60947-2: Low-voltage switchgear — circuit breakers for industrial applications
• IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
• IEC/EN 60664: Insulation coordination for low-voltage equipment (general series)
• EN 60664: European harmonised insulation coordination standard
• IEC 60898: Circuit breakers for overcurrent protection in household and similar installations
• IEC 60947: Low-voltage switchgear and controlgear series standard
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006 on chemical safety
• TSCA: Compliant with US Toxic Substances Control Act requirements
• WEEE: Waste Electrical and Electronic Equipment Directive — properly classified for recycling
