Part number
2CDS651061R0255
Model no
BMS611B25
$8.05 On request Dispatch — · From TürkiyeGet a Quote

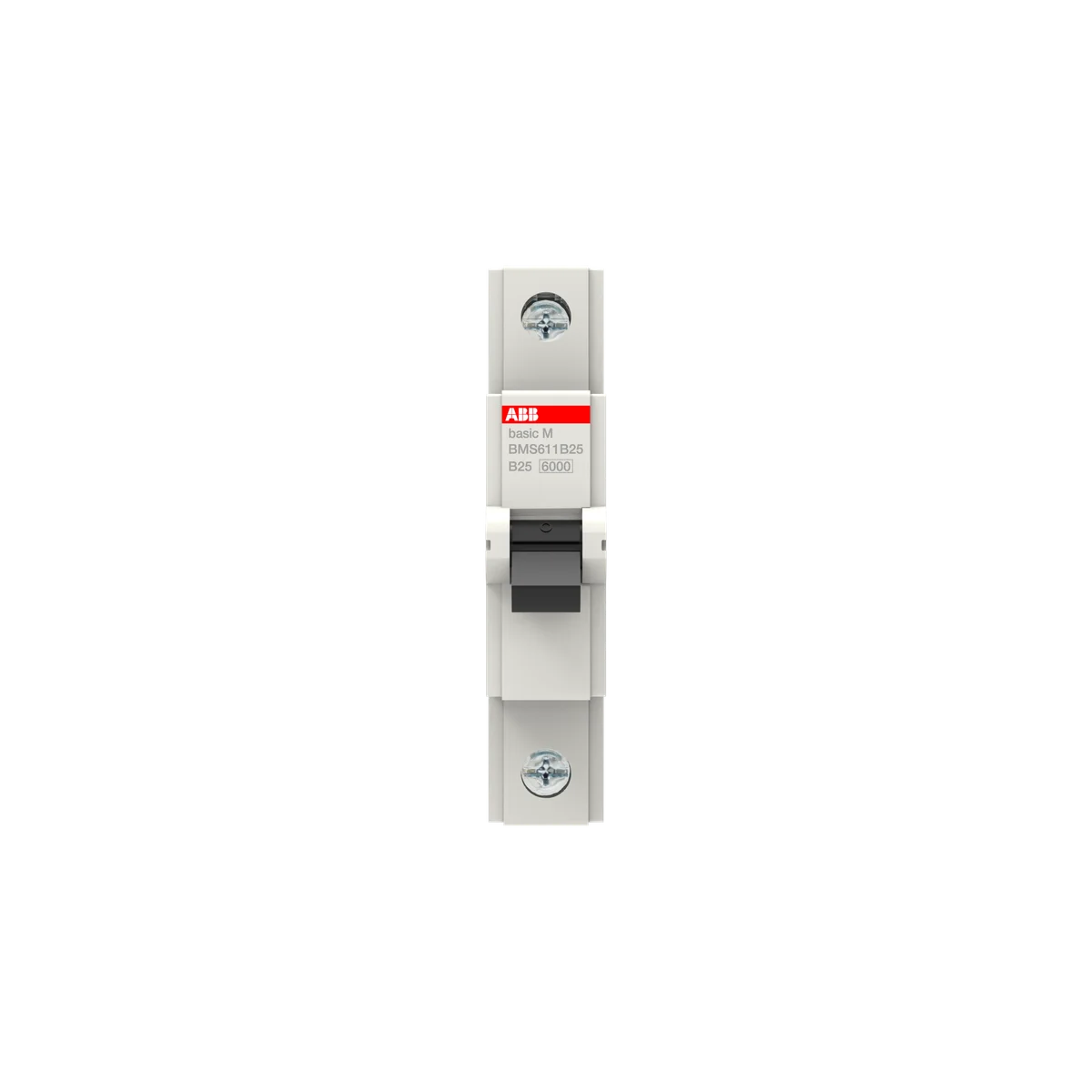

ABB 2CDS651061R0255 BMS611B25 1P 25A 6kA B-Curve Miniature Circuit Breaker

Rated current
25 A
Rated operational voltage
230 V AC
Poles
1P
EAN
4016779049245
Other ratings in ABB Basic M All 7 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
16 2CDS651061R0165 On request $8.05
20 2CDS651061R0205 On request $8.05
25 2CDS651061R0255This part On request $8.05
32 2CDS651061R0325 On request $10.05
40 2CDS651061R0405 On request $10.47
Description

About the BMS611B25

The ABB BMS611B25 miniature circuit breaker (MCB), reference 2CDS651061R0255, is a 1-pole 25 A B-curve device from the Basic M BMS series offering 6 kA breaking capacity at 230/400 V AC. Rated to both IEC 60898-1 and IEC 60947-2, the BMS611B25 delivers reliable overcurrent and short-circuit protection in a compact 17.5 mm wide DIN-rail-mount form factor suited for residential distribution boards, light commercial panels, and industrial control enclosures.

Certifications & Standards

  • IEC 60898-1: Household and similar installations — miniature circuit breakers
  • IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers
  • IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
  • IEC/EN 60664: Insulation coordination for low-voltage equipment
  • EN 60664: European harmonised insulation coordination standard
  • IEC 60898: Circuit breakers for overcurrent protection in household installations
  • RoHS: Restriction of Hazardous Substances — compliant for EU market
  • REACH: EU chemicals regulation — substance compliance confirmed
  • WEEE: Waste Electrical and Electronic Equipment directive compliance
  • TSCA: Toxic Substances Control Act compliance for US market

Applications & Use Cases

The ABB BMS611B25 is ideal for overcurrent and short-circuit protection of branch circuits in residential distribution boards, light commercial switchboards, and industrial control panels. The B-curve characteristic makes the BMS611B25 well suited for resistive and lightly inductive loads, cable protection, and general-purpose circuit protection where moderate inrush currents are expected. Its slim 17.5 mm footprint enables high-density panel layouts on standard 35 mm DIN rail.

Specification

Full specification

57 values · Last verified 30 Oct 2026

Technical 12

Energy Limiting Class 3
Electrical Endurance 4000 AC cycle
Mechanical Endurance 10000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2 N·m
Actuator Marking I / O
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Flexible 1 ... 16 mm², Rigid 1 ... 25 mm²
Wire Stripping Length 12.5 mm
Actuator Type Toggle

Electrical 10

Tripping Characteristic B
Rated Operational Voltage acc. to IEC 60898-1 230 V, acc. to IEC 60947-2 440 V
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Input Voltage Type AC
Rated Current (In) 25 A
Rated Short-Circuit Capacity (AC) 6 kA, (230 / 400 V AC) 6 kA, (230 V) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss at Rated Operating Conditions per Pole 3.2 W
Overvoltage Category III

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business
Show all 57 specifications ↓ Show less ↑29 more values in Identification, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS651061R0255
Type designation BMS611B25
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779049245
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 12 piece
Package Level 1 Gross Weight 1.2 kg

Environmental 3

Ambient Air Temperature Operation -5 ... +55 °C, Storage -40 ... +70 °C
Degree of Protection IP20, Enclosure with Cover IP40
Pollution Degree 2

Dimensions 6

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 93 g
Built-In Depth (t2) 69 mm

Installation 1

Instructions and Manuals No document needed

External Classifications and Standards 4

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC 60898-1

Logistics 4

Shipping weight 0.093 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS651061R0255

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 7 ratings in ABB Basic M

ABB ABB Basic M series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS651061R0065 BMS611B06 On request — $9.66 Quote
10 A 2CDS651061R0105 BMS611B10 On request — $8.05 Quote
16 A 2CDS651061R0165 BMS611B16 On request — $8.05 Quote
20 A 2CDS651061R0205 BMS611B20 On request — $8.05 Quote
25 A 2CDS651061R0255 This part BMS611B25 On request — $8.05 Quote
32 A 2CDS651061R0325 BMS611B32 On request — $10.05 Quote
40 A 2CDS651061R0405 BMS611B40 On request — $10.47 Quote
Certifications

Certifications and standards

  • RoHS
  • IEC 60898-1
Quick answers

Questions about the BMS611B25

What is the rated current of BMS611B25?

The rated current of BMS611B25 is 25 A.

Which supply voltage is BMS611B25 rated for?

The rated operational voltage of BMS611B25 is 230 V AC.

What is the HS code of BMS611B25 for customs?

The tariff (HS) code on file for BMS611B25 is 853620.

What is the EAN of BMS611B25?

The EAN (GTIN) of BMS611B25 is 4016779049245.

Where does BMS611B25 ship from, and how fast?

BMS611B25 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
