Part number
2CDS651061R0065
Model no
BMS611B06
$9.66 On request Dispatch — · From TürkiyeGet a Quote

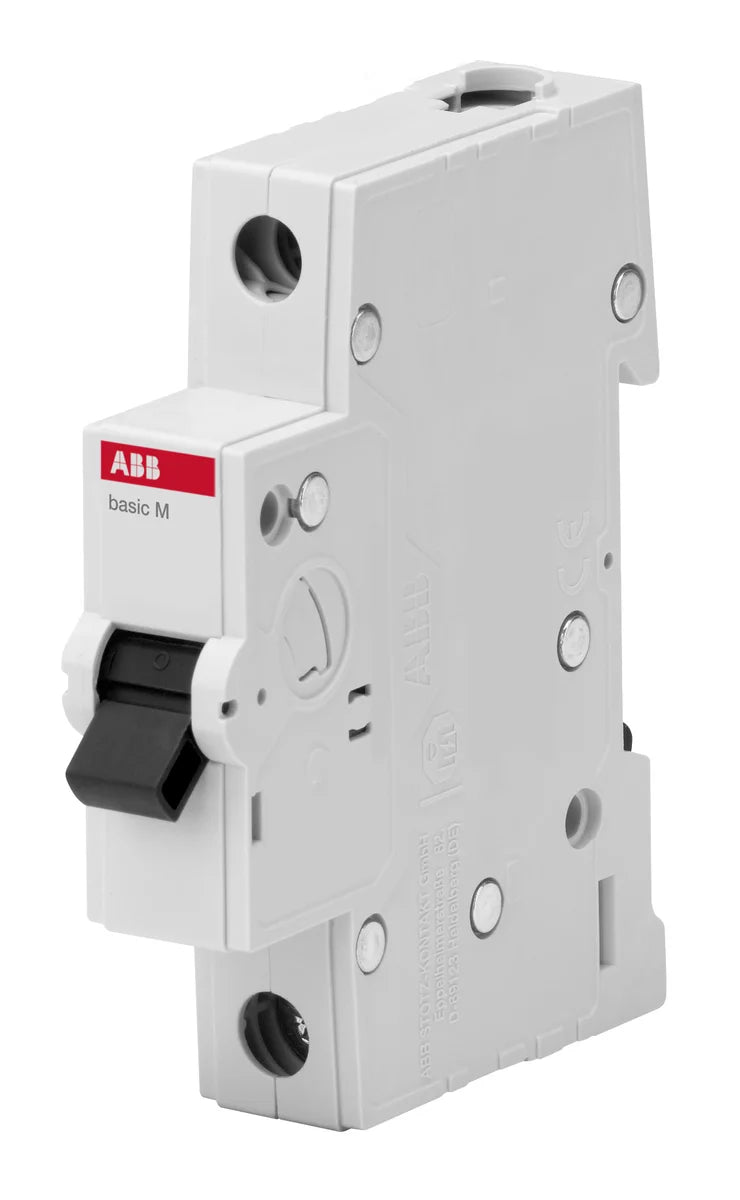

ABB 2CDS651061R0065 BMS611B06 1P 6A 6kA B-Curve Miniature Circuit Breaker

Rated current
6 A
Rated operational voltage
230 V AC
Poles
1P
EAN
4016779048927
Other ratings in ABB Basic M All 7 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
6 2CDS651061R0065This part On request $9.66
10 2CDS651061R0105 On request $8.05
16 2CDS651061R0165 On request $8.05
20 2CDS651061R0205 On request $8.05
25 2CDS651061R0255 On request $8.05
Description

About the BMS611B06

The ABB BMS611B06 miniature circuit breaker (MCB), catalog number BMS611B06 / SKU 2CDS651061R0065, is a 1-pole, 6 A, B-curve device from the Basic M BMS series rated at 6 kA breaking capacity per IEC 60898-1 and IEC 60947-2. Designed for DIN rail installation, it delivers reliable overcurrent and short-circuit protection in residential, commercial, and light industrial control panel applications. Weighing just 93 g and occupying a compact 17.5 mm wide footprint, the BMS611B06 is ideal for space-constrained distribution boards operating on 230 V AC systems.

Certifications & Standards

  • IEC 60898-1: Miniature circuit breakers for overcurrent protection in household and similar installations
  • IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers
  • IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage supply systems
  • IEC 60898: Circuit breakers for overcurrent protection for household and similar installations
  • IEC 60947: Low-voltage switchgear and controlgear — general rules
  • EN 60664: European standard for insulation coordination in low-voltage systems
  • RoHS: Compliant with EU Restriction of Hazardous Substances Directive
  • REACH: Compliant with EU REACH regulation on chemical substances
  • EU Directive 2011/65/EU: Restriction of hazardous substances in electrical and electronic equipment
  • Amendment 2015/863: Updates to RoHS substance restrictions under Directive 2011/65/EU
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

  • Overcurrent and short-circuit protection in residential distribution boards
  • Commercial building final circuit protection (lighting, socket outlets)
  • Light industrial control panels and machinery enclosures
  • DIN rail assemblies in compact 17.5 mm modular systems
  • Secondary distribution in automation and control panel applications
Specification

Full specification

57 values · Last verified 30 Oct 2026

Technical 12

Energy Limiting Class 3
Electrical Endurance 4000 AC cycle
Mechanical Endurance 10000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2 N·m
Actuator Marking I / O
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Flexible 1 ... 16 mm², Rigid 1 ... 25 mm²
Wire Stripping Length 12.5 mm
Actuator Type Toggle

Electrical 10

Tripping Characteristic B
Rated Operational Voltage acc. to IEC 60898-1 230 V, acc. to IEC 60947-2 440 V
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Input Voltage Type AC
Rated Current (In) 6 A
Rated Short-Circuit Capacity (AC) 6 kA, (230 / 400 V AC) 6 kA, (230 V) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss at Rated Operating Conditions per Pole 2 W
Overvoltage Category III

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business
Show all 57 specifications ↓ Show less ↑29 more values in Identification, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS651061R0065
Type designation BMS611B06
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779048927
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 12 piece
Package Level 1 Gross Weight 1.2 kg

Environmental 3

Ambient Air Temperature Operation -5 ... +55 °C, Storage -40 ... +70 °C
Degree of Protection IP20, Enclosure with Cover IP40
Pollution Degree 2

Dimensions 6

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 93 g
Built-In Depth (t2) 69 mm

Installation 1

Instructions and Manuals No document needed

External Classifications and Standards 4

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC 60898-1

Logistics 4

Shipping weight 0.093 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS651061R0065

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 7 ratings in ABB Basic M

ABB ABB Basic M series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS651061R0065 This part BMS611B06 On request — $9.66 Quote
10 A 2CDS651061R0105 BMS611B10 On request — $8.05 Quote
16 A 2CDS651061R0165 BMS611B16 On request — $8.05 Quote
20 A 2CDS651061R0205 BMS611B20 On request — $8.05 Quote
25 A 2CDS651061R0255 BMS611B25 On request — $8.05 Quote
32 A 2CDS651061R0325 BMS611B32 On request — $10.05 Quote
40 A 2CDS651061R0405 BMS611B40 On request — $10.47 Quote
Certifications

Certifications and standards

  • RoHS
  • IEC 60898-1
Quick answers

Questions about the BMS611B06

What is the rated current of BMS611B06?

The rated current of BMS611B06 is 6 A.

Which supply voltage is BMS611B06 rated for?

The rated operational voltage of BMS611B06 is 230 V AC.

What is the HS code of BMS611B06 for customs?

The tariff (HS) code on file for BMS611B06 is 853620.

What is the EAN of BMS611B06?

The EAN (GTIN) of BMS611B06 is 4016779048927.

Where does BMS611B06 ship from, and how fast?

BMS611B06 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
