Part number
2CDS252001R0824
Model no
S202-C100
$104.04 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

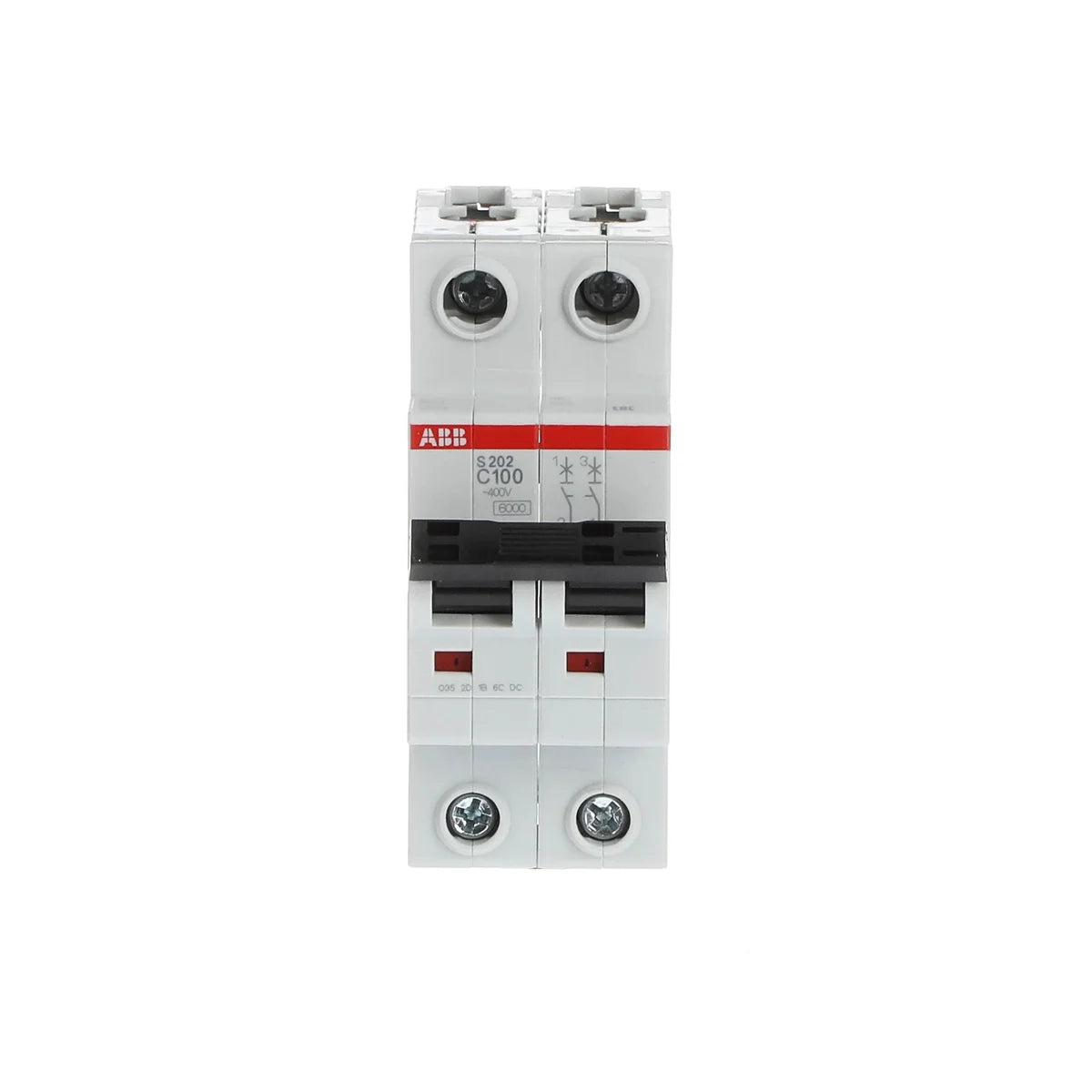

ABB 2CDS252001R0824 S202-C100 2P 100A 6kA 400V AC Miniature Circuit Breaker

Rated current
100 A
Rated operational voltage
400 V AC
Poles
2P
Breaking capacity
(230) 10 kA
EAN
4016779916684
Other ratings in ABB S200 All 15 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
40 2CDS252001R0404 In stock $27.06
50 2CDS252001R0504 In stock $31.21
63 2CDS252001R0634 In stock $35.40
80 2CDS252001R0804 In stock $83.21
100 2CDS252001R0824This part In stock $104.04
Description

About the S202-C100

The ABB S202-C100 miniature circuit breaker (MCB), SKU 2CDS252001R0824, is a 2-pole, 100 A, Type C device rated at 400 V AC with a breaking capacity of 6 kA — engineered for reliable overcurrent and short-circuit protection in residential, commercial, and light industrial installations. Part of the trusted ABB S200 series, the S202-C100 delivers consistent performance in compact DIN-rail enclosures where panel space is at a premium.

Certifications & Standards

  • CE: European Conformity — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — approved for Great Britain market
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
  • WEEE: Waste Electrical and Electronic Equipment Directive compliant
  • IEC 60898-1: International standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60898-1: Combined IEC and European harmonised standard for MCB performance and safety
  • EN 60898-1: European standard for miniature circuit breakers
  • IEC 60898: Core IEC standard for miniature circuit breakers
  • IEC/EN 60947-2: Standard for low-voltage switchgear and controlgear — circuit breakers
  • EN 60947-2: European harmonised standard for low-voltage circuit breakers
  • IEC 60947: Low-voltage switchgear and controlgear general requirements
  • IEC 60068-2: Environmental testing standard — climatic and mechanical durability
  • EN 60664: Insulation coordination for equipment within low-voltage systems

Applications & Use Cases

  • Final circuit and distribution board protection in commercial and light industrial buildings
  • Overcurrent and short-circuit protection for motor loads and equipment with high inrush currents (Type C characteristic)
  • Control panel sub-circuit protection in automation and process control environments
  • DIN-rail mounted installation in compact switchgear assemblies
  • Protection of cables and conductors in 400 V AC three-phase and single-phase systems
Specification

Full specification

75 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 10 kA, (400 V AC) 6 kA, (400 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (400 V AC) 6 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 2
Number of Poles 2P
Tightening Torque 3 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 16/16 mm², Conductor 2.5 ... 50 mm², Flexible 4 ... 35 mm², Rigid 2.5 ... 50 mm², Stranded 2.5 ... 50 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 400 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Maximum (Incl. Tolerance) 110 V DC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC
Rated Current (In) 100 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA, (230 V AC) 6 kA, (400 V AC) 6 kA, (400 V) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss 19.6 W, at Rated Operating Conditions per Pole 9.8 W
Overvoltage Category III

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 75 specifications ↓ Show less ↑43 more values in Identification, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS252001R0824
Type designation S202-C100
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779916684
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 5 piece
Package Level 1 Gross Weight 1.46 kg

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 6

Width in Number of Modular Spacings 2
Product Net Width 35 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.24 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC185394_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 16.0 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS252001R0824

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 15 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
20 A 2CDS252001R0204 S202-C20 In stock $20.83
25 A 2CDS252001R0254 S202-C25 In stock $20.83
32 A 2CDS252001R0324 S202-C32 In stock $26.01
40 A 2CDS252001R0404 S202-C40 In stock $27.06
50 A 2CDS252001R0504 S202-C50 In stock $31.21
63 A 2CDS252001R0634 S202-C63 In stock $35.40
80 A 2CDS252001R0804 S202-C80 In stock $83.21
100 A 2CDS252001R0824 This part S202-C100 In stock $104.04
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
Quick answers

Questions about the S202-C100

What is the rated current of S202-C100?

The rated current of S202-C100 is 100 A.

Which supply voltage is S202-C100 rated for?

The rated operational voltage of S202-C100 is 400 V AC.

What is the HS code of S202-C100 for customs?

The tariff (HS) code on file for S202-C100 is 853620.

What is the EAN of S202-C100?

The EAN (GTIN) of S202-C100 is 4016779916684.

Where does S202-C100 ship from, and how fast?

S202-C100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
