Part number
2CDS252001R0324
Model no
S202-C32
$26.01 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

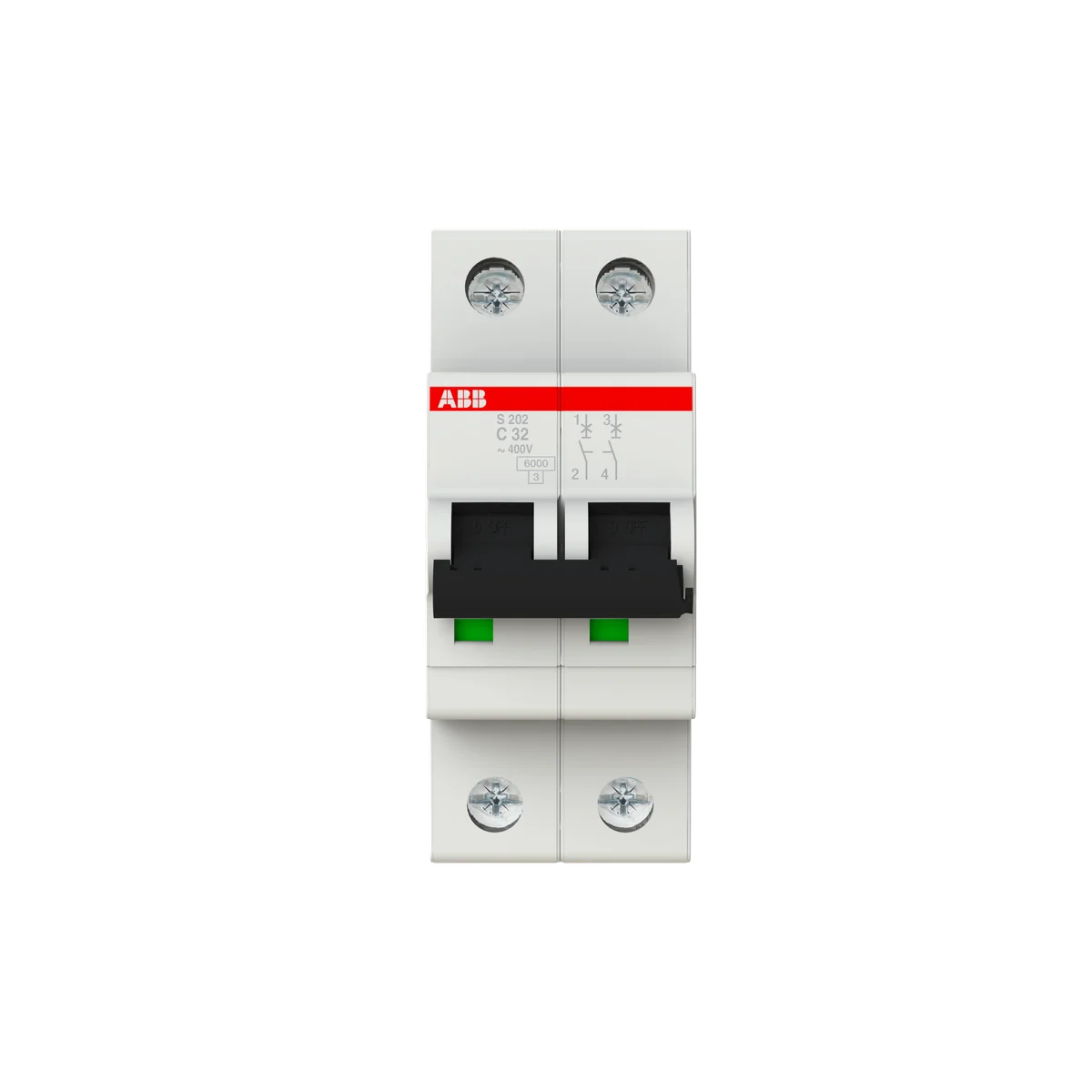

ABB 2CDS252001R0324 S202-C32 2P 32A 6kA Curve-C DIN-Rail Miniature Circuit Breaker

Rated current
32 A
Rated operational voltage
230–400 V AC
Poles
2P
Breaking capacity
(125) 10 kA
EAN
4016779466202
Other ratings in ABB S200 All 15 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
20 2CDS252001R0204 In stock $20.83
25 2CDS252001R0254 In stock $20.83
32 2CDS252001R0324This part In stock $26.01
40 2CDS252001R0404 In stock $27.06
50 2CDS252001R0504 In stock $31.21
Description

About the S202-C32

The ABB S202-C32 miniature circuit breaker (MCB), SKU 2CDS252001R0324, is a 2-pole, 32A, 6 kA breaking capacity device from the proven S200 series, designed for reliable overcurrent and short-circuit protection in residential, commercial, and light industrial control panels. Featuring Curve-C tripping characteristics and rated at 230/400 V AC, the S202-C32 mounts directly onto standard DIN rail and delivers consistent protection performance to IEC/EN 60898-1 and IEC/EN 60947-2 standards.

Certifications & Standards

  • IEC/EN 60898-1: International/European standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60947-2: International/European standard for low-voltage switchgear and controlgear — circuit breakers
  • IEC 60898-1: IEC standard for household and similar overcurrent protection circuit breakers
  • EN 60898-1: European harmonised standard for overcurrent protection circuit breakers
  • IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial rating)
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
  • IEC 60898-1400: Extended IEC standard reference for MCB performance
  • IEC 60947-2440: Extended IEC standard reference for industrial circuit breakers
  • IEC 60068-2: Environmental testing standard (climatic and mechanical robustness)
  • EN 60947-2: European standard for low-voltage industrial circuit breakers
  • EN 60664: European insulation coordination standard for low-voltage equipment
  • EN 45555: European standard for end-of-life treatment of electrical and electronic equipment
  • UL 1077: UL standard for supplementary protectors for use in electrical equipment (North America)
  • CSA: Canadian Standards Association approval for North American market compliance
  • CE: European Conformity marking — meets all applicable EU directives
  • UKCA: UK Conformity Assessed marking — meets Great Britain market requirements post-Brexit
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive

Applications & Use Cases

  • Overcurrent and short-circuit protection in residential distribution boards and consumer units
  • Commercial building electrical panels and sub-distribution boards
  • Light industrial control panels and machinery protection circuits
  • Protection of resistive and inductive loads (motors, transformers, lighting) requiring Curve-C characteristics
  • DIN-rail mounted distribution assemblies in switchgear enclosures
  • Branch circuit protection in automation and control cabinets

Frequently Asked Questions

  • What does the "C" in S202-C32 mean? The "C" denotes the tripping curve, which triggers between 5× and 10× the rated current. Curve-C is suitable for inductive and mixed loads such as motors, transformers, and fluorescent lighting where moderate inrush currents are expected.
  • What is the breaking capacity of the ABB S202-C32? The S202-C32 has a rated breaking capacity (Icu) of 6 kA at 230/400 V AC, suitable for standard distribution networks.
  • How many poles does the S202-C32 have? It is a 2-pole (2P) device, protecting both live and neutral conductors simultaneously — ideal for single-phase circuits in 230/400 V AC systems.
  • Is the ABB S202-C32 DIN-rail compatible? Yes, the S202-C32 is designed for standard 35 mm DIN-rail mounting as per EN 60715.
  • What certifications does the S202-C32 hold? It carries CE, UKCA, UL 1077, CSA, IEC/EN 60898-1, IEC/EN 60947-2, RoHS, REACH, and WEEE compliance, making it suitable for global deployments.
Specification

Full specification

84 values · Last verified 30 Oct 2026

Technical 21

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (125 V DC) 10 kA, (230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (48 V DC) 20 kA, (230 V) 20 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 2
Number of Poles 2P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 12.5 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 125 V DC, Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 32 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 7.4 W, at Rated Operating Conditions per Pole 3.7 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS252001R0324
Type designation S202-C32
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779466202
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 5 piece
Package Level 1 Gross Weight 1.24 kg
E-Number (Sweden) 2100566

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 110 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA, (240 V) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 2
Product Net Width 35 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.24 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC204436_EPLAN

Installation 3

Mounting Type DIN-Rail
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC, UL
Standardization Body EN, IEC, UL

Logistics 4

Shipping weight 1.3 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS252001R0324

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 15 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
16 A 2CDS252001R0164 S202-C16 In stock $20.83
20 A 2CDS252001R0204 S202-C20 In stock $20.83
25 A 2CDS252001R0254 S202-C25 In stock $20.83
32 A 2CDS252001R0324 This part S202-C32 In stock $26.01
40 A 2CDS252001R0404 S202-C40 In stock $27.06
50 A 2CDS252001R0504 S202-C50 In stock $31.21
63 A 2CDS252001R0634 S202-C63 In stock $35.40
80 A 2CDS252001R0804 S202-C80 In stock $83.21
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S202-C32

What is the rated current of S202-C32?

The rated current of S202-C32 is 32 A.

Which supply voltage is S202-C32 rated for?

The rated operational voltage of S202-C32 is 230–400 V AC.

What is the HS code of S202-C32 for customs?

The tariff (HS) code on file for S202-C32 is 853620.

What is the EAN of S202-C32?

The EAN (GTIN) of S202-C32 is 4016779466202.

Where does S202-C32 ship from, and how fast?

S202-C32 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
