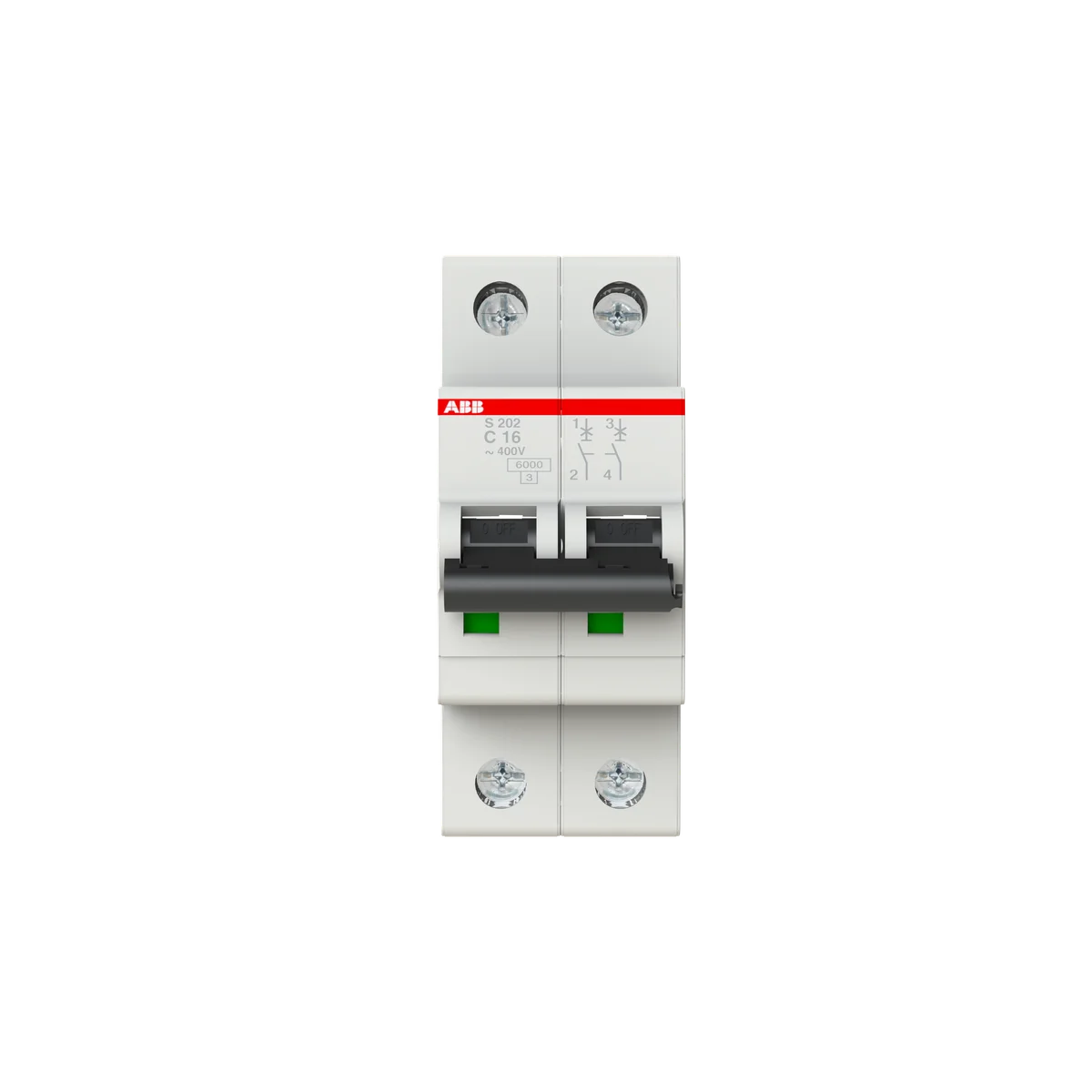

ABB 2CDS252001R0164 S202-C16 2P 16A 6kA C-Curve DIN-Rail Miniature Circuit Breaker

The ABB S202-C16 miniature circuit breaker (MCB), SKU 2CDS252001R0164, is a 2-pole 16A device from the S200 series designed to provide reliable overcurrent and short-circuit protection in residential, commercial, and light-industrial control panels. Rated at 230/400V AC with a 6kA breaking capacity and C-curve tripping characteristic, the S202-C16 is DIN-rail mounted and engineered to IEC/EN 60898-1 and IEC/EN 60947-2 standards for dependable circuit protection.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: Household and similar installations — circuit breakers for overcurrent protection
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers
• IEC 60898-1: International standard for circuit breaker performance
• EN 60898-1: European harmonised standard for circuit breakers
• IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
• IEC 60898-1400: Extended IEC standard compliance
• IEC 60947-2440: Extended IEC low-voltage switchgear compliance
• IEC 60068-2: Environmental testing standard
• EN 60947-2: European harmonised low-voltage switchgear standard
• EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
• EN 60664: European insulation coordination standard
• UL 1077: Supplementary protectors for use in electrical equipment (UL listed)
• CSA: Canadian Standards Association approval for North American markets
• CE: European Conformity marking — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — compliant for the United Kingdom market
• RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials
• REACH: Compliant with EU chemicals regulation
• WEEE: Waste Electrical and Electronic Equipment Directive compliant
