Part number
1SFA619552R1051
Model no
CE4K1-10R-02
$29.30 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Compact

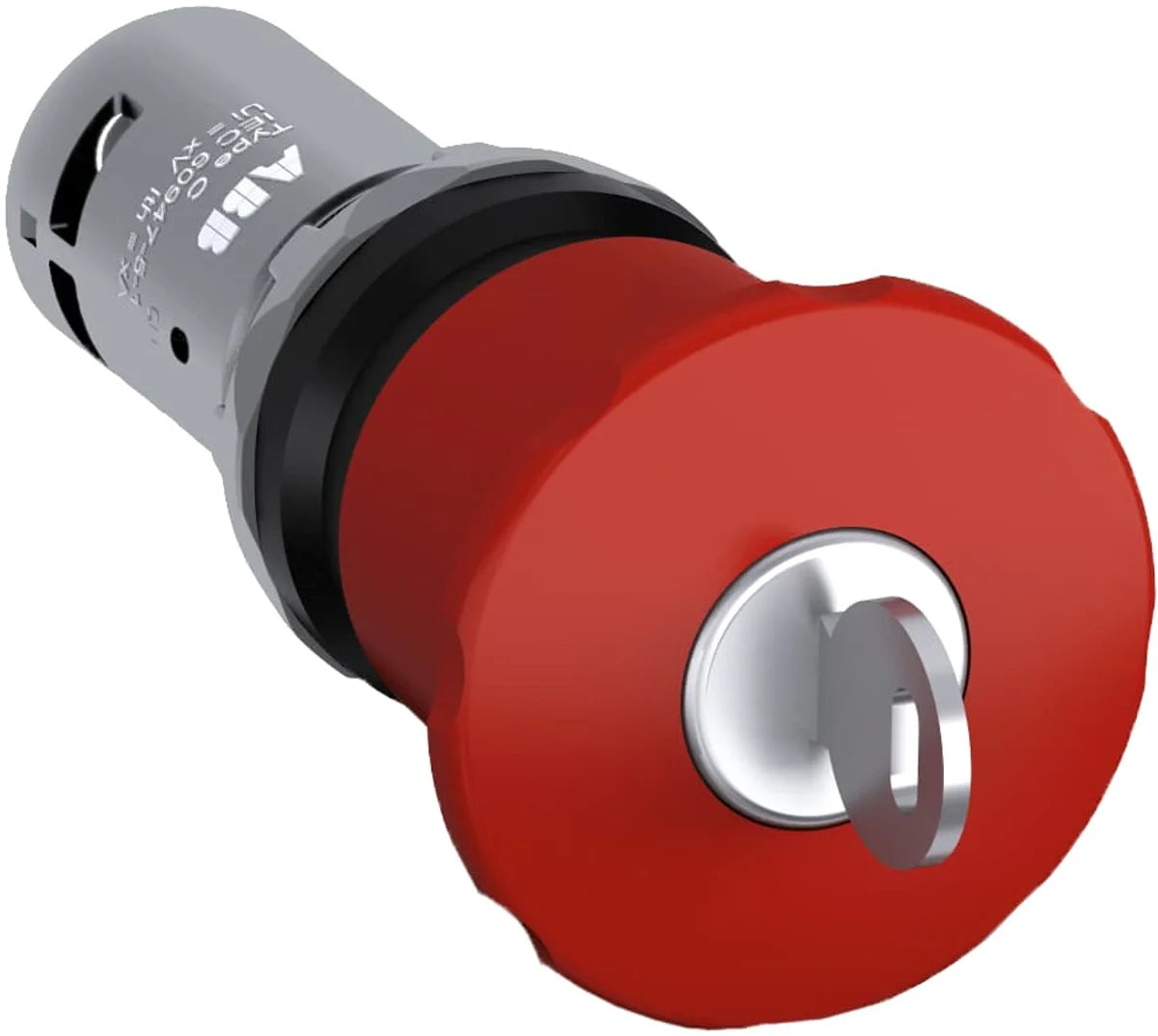

ABB 1SFA619552R1051 CE4K1-10R-02 Compact 40mm Emergency Stop Button 24-300V 1NC

Rated operational voltage
24–300 V AC
EAN
7320500308820
Description

About the CE4K1-10R-02

The ABB CE4K1-10R-02 (SKU: 1SFA619552R1051) is a Compact Series 40 mm emergency stop button designed for reliable machine safety and operator protection in industrial control panels and automation systems. Operating across a wide voltage range of 24 to 300 V, the CE4K1-10R-02 delivers dependable circuit interruption in emergency situations, making it a trusted choice for engineers and safety system designers worldwide.

Certifications & Standards

  • CE: Complies with European Union safety, health, and environmental protection requirements
  • cULus: Listed by UL for both US and Canadian markets per applicable safety standards
  • CSA: Certified to Canadian Standards Association requirements
  • CCC: China Compulsory Certification for the Chinese market
  • UKCA: UK Conformity Assessed marking for Great Britain market access
  • EAC: Eurasian Conformity mark for Russia and EAEU member states
  • RoHS: Restriction of Hazardous Substances compliant — restricts lead, mercury, and other harmful materials
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Compliant with Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

  • Machine tool and manufacturing line emergency stop circuits
  • Industrial control panels and operator workstations
  • li>
  • Conveyor systems and automated production lines
  • Robotics cells and motion control enclosures
  • Process automation and SCADA panel integration
Specification

Full specification

60 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 40 mm
Product Net Height 40 mm
Product Net Depth / Length 103 mm
Product Net Weight 0.068 kg

Technical 23

Ambient Air Temperature Operation -40 ... 70 °C, Storage -40 ... +85 °C
Color Red
Illumination Non-illuminated
Function Maintained
Sub-Function Key release
Key Code Key code 71
Number of Auxiliary Contacts NC 2
Number of Auxiliary Contacts NO 0
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage 24 ... 300 V
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A, (125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (240 V) 2 A, (220 / 240 V) 2 A
Power Loss Maximum 3.5 W
Mechanical Durability 50000 cycle
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 60 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619552R1051
Type designation CE4K1-10R-02
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500308820
eCl@ss 27371244
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC002034 - Emergency stop complete
ETIM 7 EC002034 - Emergency stop complete
eClass V11.0 : 27371244
UNSPSC 39121545
E-Number (Sweden) 3711526

Logistics 10

Package Level 1 Units bag 1 piece
Package Level 1 Width 165 mm
Package Level 1 Depth / Length 90 mm
Package Level 1 Height 45 mm
Package Level 1 Gross Weight 0.07 kg
Package Level 1 EAN 7320500308820
Shipping weight 0.07 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619552R1051

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
Quick answers

Questions about the CE4K1-10R-02

Which supply voltage is CE4K1-10R-02 rated for?

The rated operational voltage of CE4K1-10R-02 is 24–300 V AC.

What is the HS code of CE4K1-10R-02 for customs?

The tariff (HS) code on file for CE4K1-10R-02 is 8536508090.

What is the EAN of CE4K1-10R-02?

The EAN (GTIN) of CE4K1-10R-02 is 7320500308820.

Where does CE4K1-10R-02 ship from, and how fast?

CE4K1-10R-02 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
