- Part number
- 1SFA611524R1001
- Model no
- MPEP4-10R
Description
About the MPEP4-10R
About the MPEP4-10R

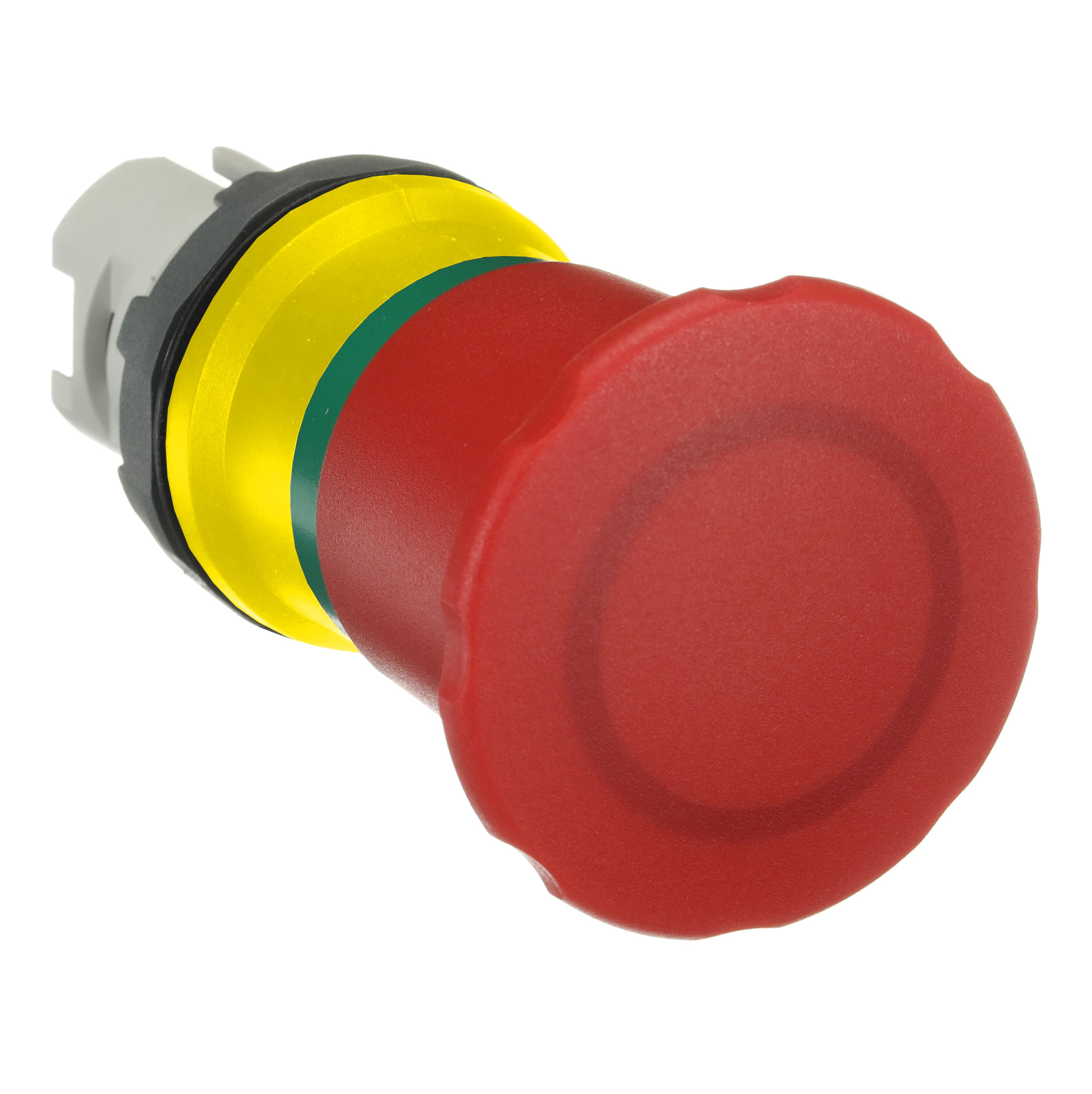

The ABB MPEP4-10R (SKU: 1SFA611524R1001) is a certified emergency stop button engineered for reliable personnel and equipment protection in industrial control panel applications. The MPEP4-10R features compact 40 mm × 40 mm × 68 mm dimensions and a robust design suited for demanding automation environments. With global certifications including CE, cULus, CCC, and RoHS compliance, this emergency stop device meets the most stringent international safety and regulatory standards.
Certifications & Standards
- CE: Complies with European Union directives for electrical safety and electromagnetic compatibility
- cULus: Listed by Underwriters Laboratories for use in both Canadian and US markets
- CCC: China Compulsory Certification for sale and installation in the Chinese market
- RoHS: Restriction of Hazardous Substances — free from restricted materials including lead, mercury, and cadmium
- REACH: Compliant with EU REACH regulation on chemical substance safety
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
- UKCA: UK Conformity Assessed — authorised for sale and installation in Great Britain post-Brexit
Applications & Use Cases
- Emergency shutdown of industrial machinery and production lines
- Control panel operator safety interfaces in manufacturing facilities
- Automation systems requiring IEC-compliant emergency stop devices
- Machine tool, conveyor, and packaging equipment safety circuits
- Process control panels in oil & gas, food & beverage, and automotive industries
Specification
Full specification
Dimensions 4
| Product Net Width | 40 mm |
|---|---|
| Product Net Height | 40 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.036 kg |
Technical 7
| Ambient Air Temperature | Operation -40 ... 70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Pull release |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 100000 cycle |
Environmental 1
| Degree of Protection | Front IP66, Terminals IP20 |
|---|
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611524R1001 |
|---|---|
| Type designation | MPEP4-10R |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500372647 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC001038 - Front element for mushroom push-button |
|---|---|
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3705077 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Height | 45 mm |
| Package Level 1 Gross Weight | 0.039 kg |
| Package Level 1 EAN | 7320500372647 |
| Shipping weight | 0.039 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611524R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MPEP4-10R
What is the HS code of MPEP4-10R for customs?
The tariff (HS) code on file for MPEP4-10R is 85369001.
What is the EAN of MPEP4-10R?
The EAN (GTIN) of MPEP4-10R is 7320500372647.
Where does MPEP4-10R ship from, and how fast?
MPEP4-10R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
