- Part number
- 1SFA619550R1041
- Model no
- CE4T-10R-01
Description
About the CE4T-10R-01
About the CE4T-10R-01

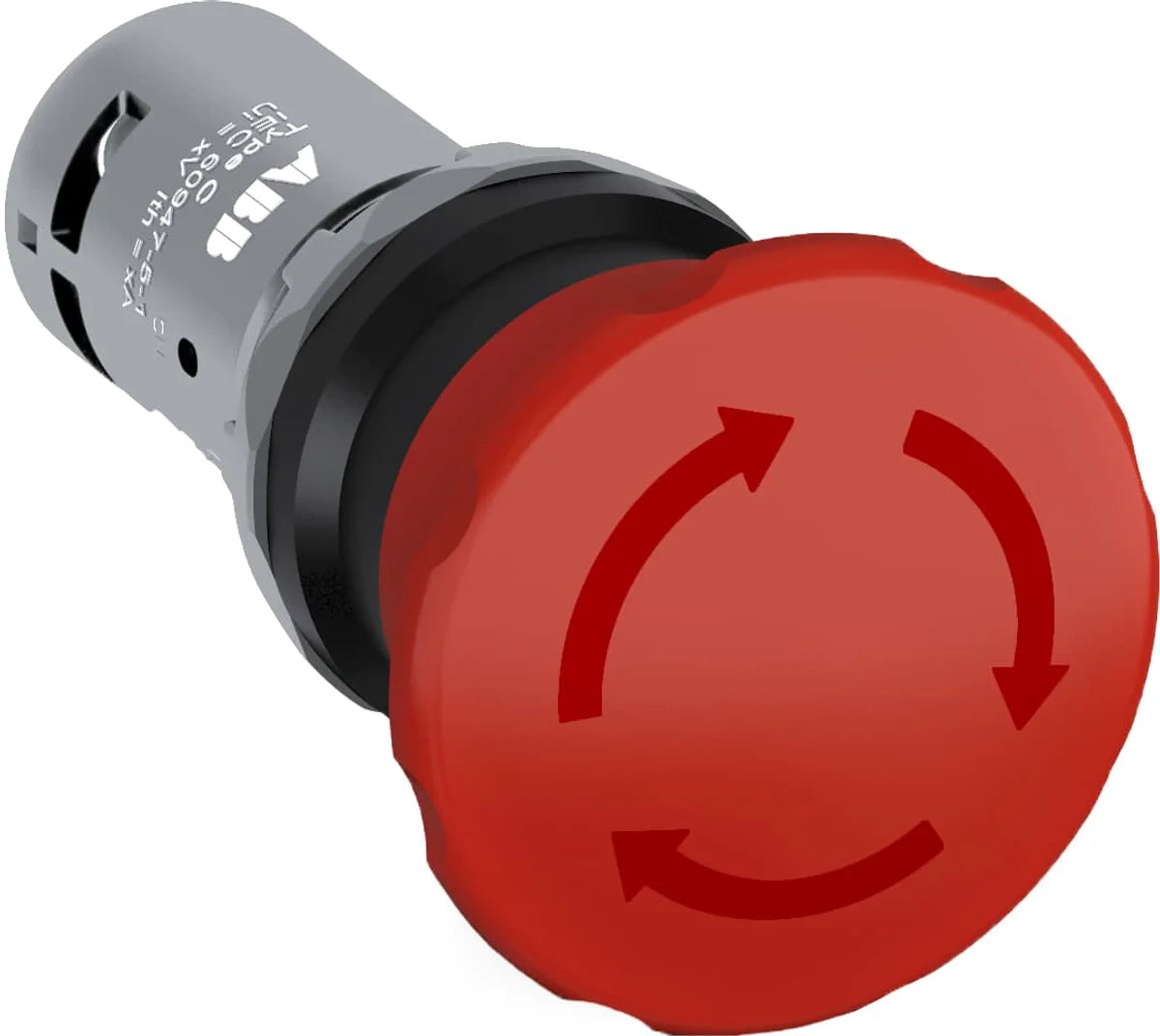

The ABB CE4T-10R-01 (SKU: 1SFA619550R1041) is an emergency stop button from ABB's CE4T series, designed for immediate machine shutdown in industrial control panels and automation systems. Operating across a wide voltage range of 24 to 300 V, this pilot device delivers reliable 1NC contact operation with a distinctive red mushroom head for fast, intuitive operator response. Compact and lightweight at just 34 g with a 40 × 40 × 73 mm footprint, the CE4T-10R-01 integrates easily into standard control enclosures and pendant stations.
Certifications & Standards
- CE: Compliant with EU directives for sale and use within the European Economic Area
- CCC: China Compulsory Certification for the Chinese market
- UKCA: UK Conformity Assessed marking for the Great Britain market post-Brexit
- CSA: Canadian Standards Association certification for North American safety requirements
- cULus: Underwriters Laboratories certification covering both US (UL) and Canadian (cUL) markets
- EAC: Eurasian Conformity mark for the Eurasian Economic Union
- REACH: Compliant with EU REACH regulation on chemicals in electrical products
- RoHS: Restriction of Hazardous Substances compliant — free from lead, mercury, cadmium, and other restricted substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
Applications & Use Cases
- Emergency machine shutdown on industrial automation lines and assembly equipment
- Control panel and operator station safety interlocking
- Pendant control stations requiring immediate stop functionality
- Conveyor, press, and packaging machinery safety circuits
- Wide voltage compatibility (24–300 V) suits diverse PLC and relay logic architectures
Specification
Full specification
Dimensions 4
| Product Net Width | 40 mm |
|---|---|
| Product Net Height | 40 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 0.034 kg |
Technical 22
| Ambient Air Temperature | Operation -40 ... 70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Twist release |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 ... 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 0.5 W |
| Mechanical Durability | 50000 cycle |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
|---|
Show all 59 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619550R1041 |
|---|---|
| Type designation | CE4T-10R-01 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500260715 |
| eCl@ss | 27371244 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC002034 - Emergency stop complete |
|---|---|
| ETIM 7 | EC002034 - Emergency stop complete |
| eClass | V11.0 : 27371244 |
| UNSPSC | 39121545 |
| E-Number (Sweden) | 3711514 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 165 mm |
| Package Level 1 Depth / Length | 90 mm |
| Package Level 1 Height | 45 mm |
| Package Level 1 Gross Weight | 0.036 kg |
| Package Level 1 EAN | 7320500260715 |
| Shipping weight | 0.036 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619550R1041
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the CE4T-10R-01
Which supply voltage is CE4T-10R-01 rated for?
The rated operational voltage of CE4T-10R-01 is 24–300 V AC.
What is the HS code of CE4T-10R-01 for customs?
The tariff (HS) code on file for CE4T-10R-01 is 8536508090.
What is the EAN of CE4T-10R-01?
The EAN (GTIN) of CE4T-10R-01 is 7320500260715.
Where does CE4T-10R-01 ship from, and how fast?
CE4T-10R-01 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
