- Part number
- 1SFA611520R1001
- Model no
- MPET3-10R
Description
About the MPET3-10R
About the MPET3-10R

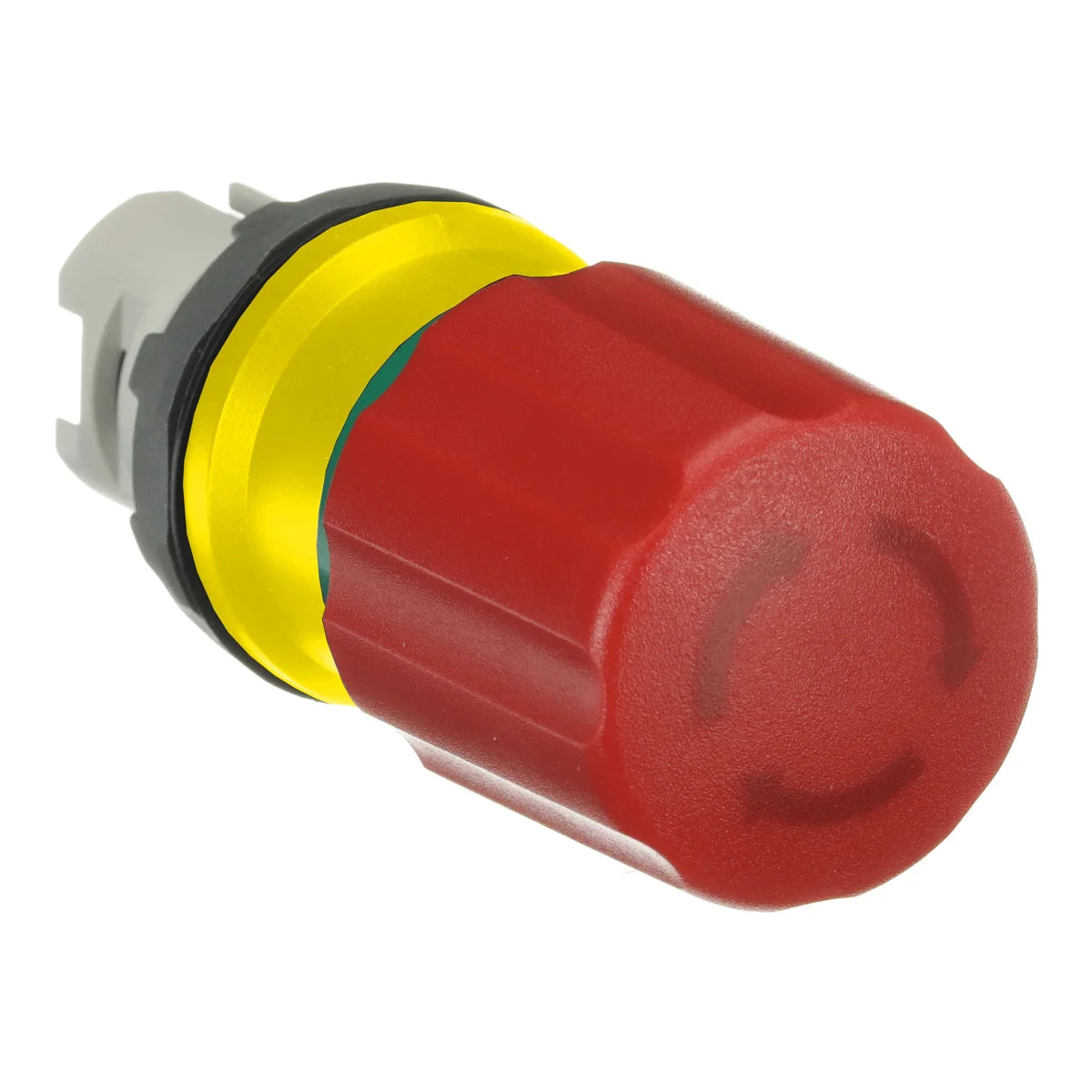

The ABB MPET3-10R (SKU: 1SFA611520R1001) is a 30 mm emergency stop button from ABB's Modular Plastic Range, designed for reliable machine safety and emergency shutdown in industrial control panels and automation systems. Compact and robust, the MPET3-10R delivers a dependable mushroom-head actuator solution for operators requiring immediate circuit interruption in hazardous or emergency conditions.
Certifications & Standards
- CE: Complies with European Union product safety, health, and environmental requirements
- cULus: Listed by Underwriters Laboratories for both Canadian and US markets
- CCC: China Compulsory Certification for the Chinese market
- RoHS: Restriction of Hazardous Substances — free from restricted materials including lead and mercury
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with Waste Electrical and Electronic Equipment directive for responsible disposal
- UKCA: UK Conformity Assessed marking for the Great Britain market
Applications & Use Cases
- Emergency shutdown of industrial machinery and automation equipment
- Control panel and operator station integration Control cabinet door and front panel mounting for operator safety
- Manufacturing, process control, and general industrial automation
- Pilot device applications requiring a compact 30 mm footprint
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.036 kg |
Technical 7
| Ambient Air Temperature | Operation -40 ... 70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Twist release |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 100000 cycle |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611520R1001 |
|---|---|
| Type designation | MPET3-10R |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500372494 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC001038 - Front element for mushroom push-button |
|---|---|
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3705071 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.039 kg |
| Package Level 1 EAN | 7320500372494 |
| Shipping weight | 0.039 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611520R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MPET3-10R
What is the HS code of MPET3-10R for customs?
The tariff (HS) code on file for MPET3-10R is 85369001.
What is the EAN of MPET3-10R?
The EAN (GTIN) of MPET3-10R is 7320500372494.
Where does MPET3-10R ship from, and how fast?
MPET3-10R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Reviews
Customer reviews
Series
ABB Modular Plastic Range
- Brand
- ABB
- Series
- Modular Plastic Range
