- Part number
- 1SFA611525R1101
- Model no
- MPEK4-11R
- CE
- RoHS
- UKCA
- CCC
Description
About the MPEK4-11R
About the MPEK4-11R

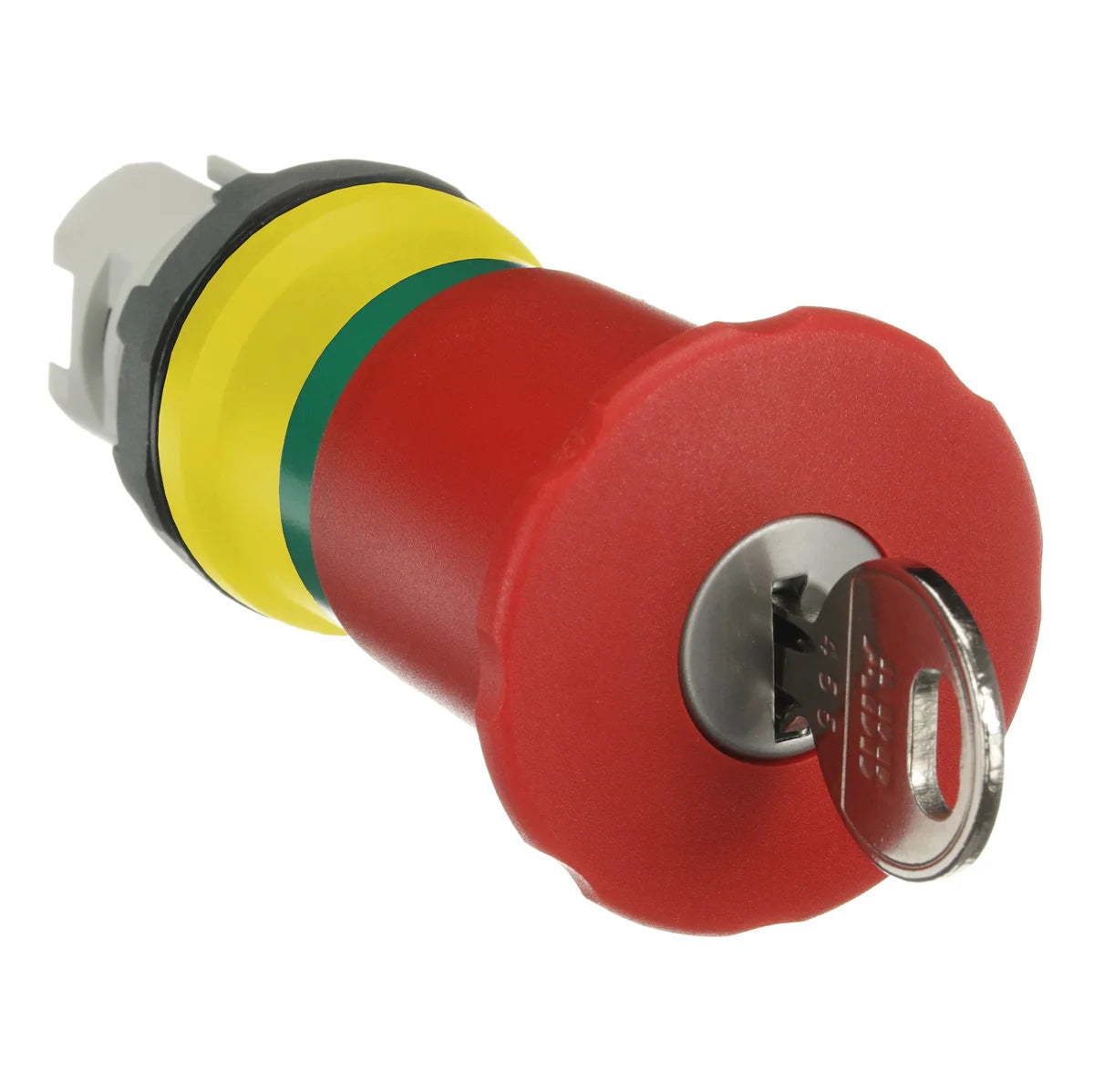

The ABB MPEK4-11R (SKU: 1SFA611525R1101) is a compact emergency stop push button device designed for industrial control panel and automation safety applications. Featuring a 1NO+1NC contact configuration, the MPEK4-11R provides reliable emergency stop functionality in a 40 mm x 40 mm footprint, making it suitable for machine control stations and operator panels where rapid, dependable circuit interruption is essential.
Certifications & Standards
- CE: Complies with European Union directives for health, safety, and environmental protection.
- cULus: Listed by Underwriters Laboratories for both Canadian and US markets, confirming product safety to North American standards.
- CCC: China Compulsory Certification, required for sale and import into the Chinese market.
- RoHS: Restriction of Hazardous Substances — free from lead, mercury, cadmium, and other restricted substances per EU Directive 2011/65/EU.
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances.
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal.
- UKCA: UK Conformity Assessed marking for products placed on the Great Britain market post-Brexit.
Applications & Use Cases
- Machine tool and industrial machinery emergency stop circuits
- Control panel operator interfaces requiring safety stop functionality
- Automation lines where rapid circuit interruption is mandated by safety standards
- Pendant control stations and operator consoles
- General industrial automation and process control environments
Frequently Asked Questions
What does MPEK4-11R mean?
The MPEK4-11R catalog number designates an ABB emergency stop push button in the MPEK4 model range, with a 1NO+1NC (one normally open, one normally closed) contact block configuration and a standard mushroom-head actuator.
Is the ABB 1SFA611525R1101 suitable for North American installations?
Yes. The MPEK4-11R carries cULus certification, confirming compliance with safety standards for both the United States and Canada.
What are the physical dimensions of this emergency stop?
The MPEK4-11R measures 40 mm (W) × 40 mm (H) × 68 mm (D) and weighs 65 g, making it a compact choice for space-constrained panels.
Specification
Full specification
Dimensions 4
| Product Net Width | 40 mm |
|---|---|
| Product Net Height | 40 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.065 kg |
Technical 8
| Ambient Air Temperature | Operation -40 ... 70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Key release |
| Key Code | Key code 71 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 100000 cycle |
Environmental 1
| Degree of Protection | Front IP66, Terminals IP20 |
|---|
Show all 43 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611525R1101 |
|---|---|
| Type designation | MPEK4-11R |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500372746 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC001038 - Front element for mushroom push-button |
|---|---|
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3705078 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Height | 45 mm |
| Package Level 1 Gross Weight | 0.068 kg |
| Package Level 1 EAN | 7320500372746 |
| Shipping weight | 0.068 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611525R1101 8
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 1SFC151007C02__
Data Sheet, Technical Information 1SFC151007C02__
-
Manual
ProductDownload PDF: Instructions and Manuals 1SFC151011M0201
Instructions and Manuals 1SFC151011M0201
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 2CMT2022-006479
REACH Declaration 2CMT2022-006479
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 2CMT2022-006498
RoHS Declaration 2CMT2022-006498
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 2CMT2015-005452
Declaration of Conformity - CE 2CMT2015-005452
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - UKCA 2CMT2020-006122
Declaration of Conformity - UKCA 2CMT2020-006122
-
Certificate
ProductDownload PDF: cULus Certificate 9AKK108470A5430
cULus Certificate 9AKK108470A5430
-
Certificate
ProductDownload PDF: DNV GL Certificate E-14107
DNV GL Certificate E-14107
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MPEK4-11R
What is the HS code of MPEK4-11R for customs?
The tariff (HS) code on file for MPEK4-11R is 85369001.
What is the EAN of MPEK4-11R?
The EAN (GTIN) of MPEK4-11R is 7320500372746.
Where does MPEK4-11R ship from, and how fast?
MPEK4-11R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
