- Part number
- 1SFA611523R1001
- Model no
- MPET4-10R
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
Description
About the MPET4-10R
About the MPET4-10R

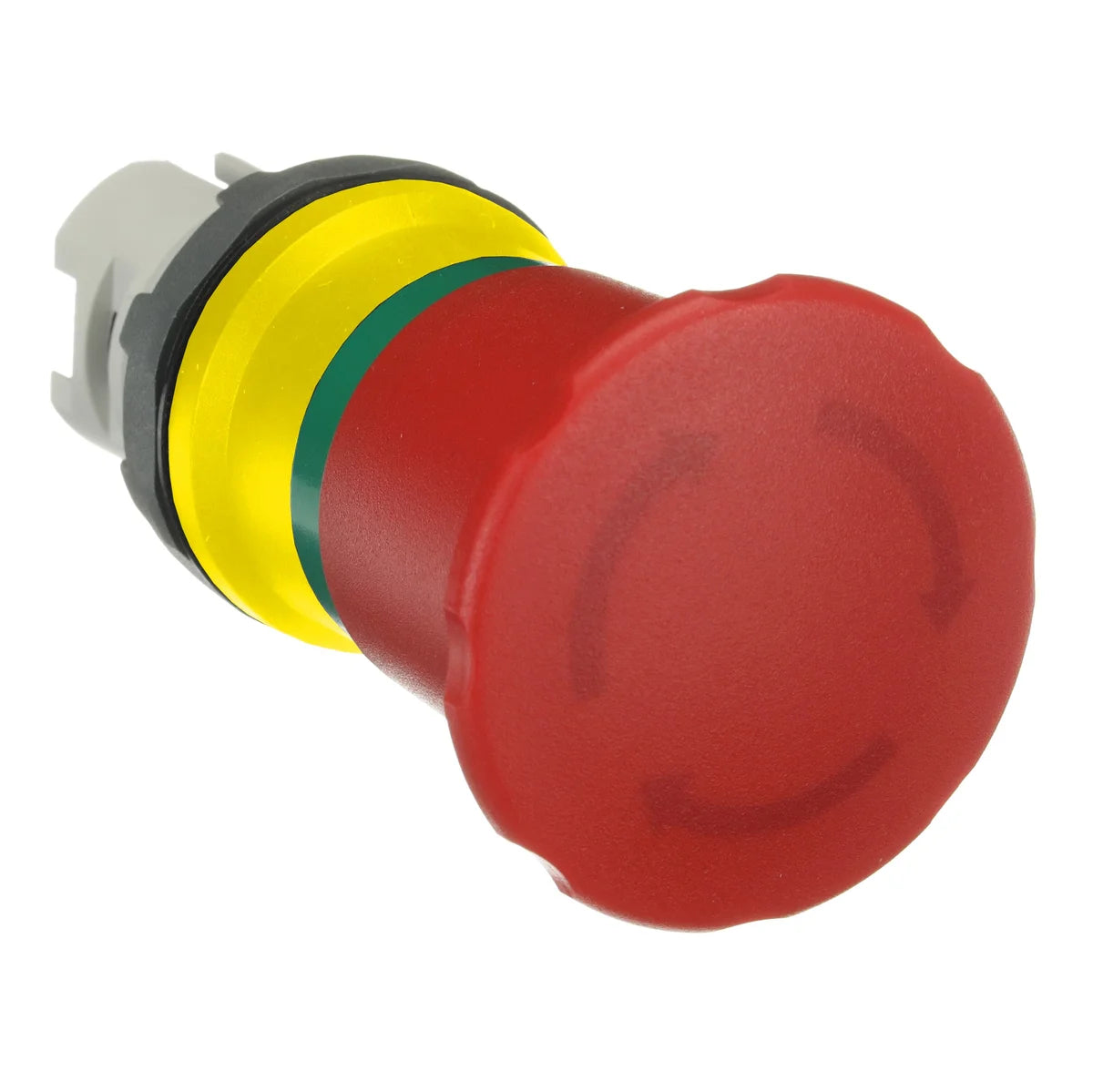

The ABB MPET4-10R (SKU: 1SFA611523R1001) is an emergency stop button from ABB's Modular Plastic Range, designed for reliable safety shutdown in industrial control panels and automation systems. Compact at 40 x 40 x 68 mm and weighing just 36 g, the MPET4-10R delivers a robust, space-efficient solution for machinery guarding and operator safety applications.
Certifications & Standards
- CCC: China Compulsory Certification — meets mandatory safety requirements for the Chinese market
- REACH: Compliant with EU regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU
- WEEE: Waste Electrical and Electronic Equipment Directive compliance for environmentally responsible end-of-life disposal
Applications & Use Cases
- Industrial machinery emergency shutdown circuits
- Control panel operator safety interfaces
- Automated production line safety interlocks
- Conveyor and material handling safety systems
- Process plant emergency stop stations
Specification
Full specification
Dimensions 4
| Product Net Width | 40 mm |
|---|---|
| Product Net Height | 40 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.036 kg |
Technical 7
| Ambient Air Temperature | Operation -40 ... 70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Twist release |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 100000 cycle |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611523R1001 |
|---|---|
| Type designation | MPET4-10R |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500372548 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC001038 - Front element for mushroom push-button |
|---|---|
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3705076 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Height | 45 mm |
| Package Level 1 Gross Weight | 0.039 kg |
| Package Level 1 EAN | 7320500372548 |
| Shipping weight | 0.039 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611523R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- CCC
Quick answers
Questions about the MPET4-10R
What is the HS code of MPET4-10R for customs?
The tariff (HS) code on file for MPET4-10R is 85369001.
What is the EAN of MPET4-10R?
The EAN (GTIN) of MPET4-10R is 7320500372548.
Where does MPET4-10R ship from, and how fast?
MPET4-10R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Reviews
Customer reviews
Series
ABB Modular Plastic Range
- Brand
- ABB
- Series
- Modular Plastic Range
