- Part number
- 1SFA611521R1001
- Model no
- MPEP3-10R
Description
About the MPEP3-10R
About the MPEP3-10R

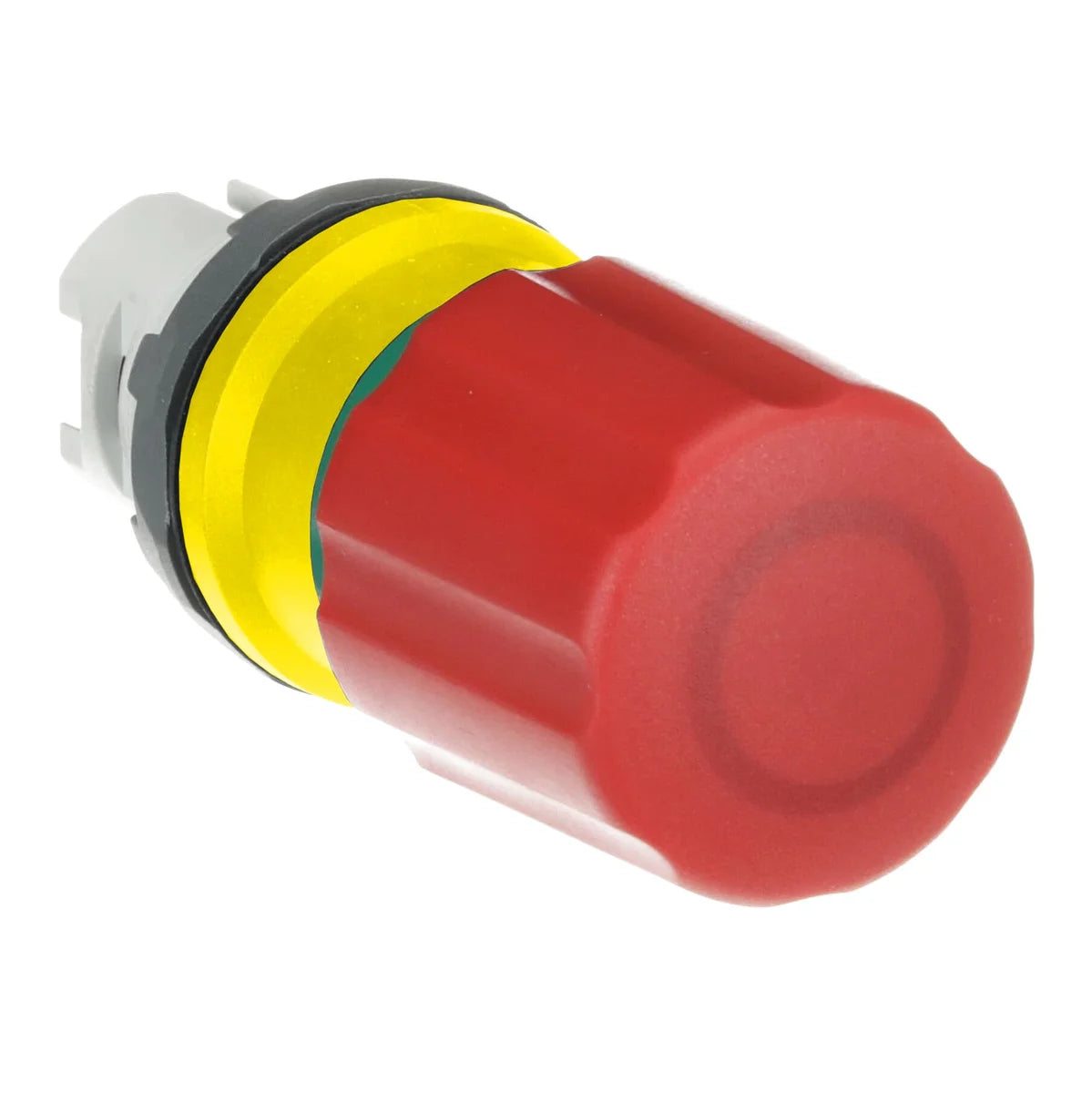

The ABB MPEP3-10R (SKU: 1SFA611521R1001) is a 30mm emergency stop button from the ABB Modular Plastic Range, designed for reliable machine and panel protection in industrial automation and control applications. The MPEP3-10R provides a robust, clearly identifiable emergency stop function and is built to integrate seamlessly into control panels and operator interfaces. Compact and lightweight at just 36 g, this pilot device suits a wide range of industrial environments.
Certifications & Standards
- CCC: China Compulsory Certification — meets Chinese national safety and quality standards for market access
- REACH: Compliant with EU Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorisation and Restriction of Chemicals
- RoHS: Compliant with EU Directive 2011/65/EU restricting hazardous substances in electrical and electronic equipment
- WEEE: Compliant with EU Directive 2012/19/EU on waste electrical and electronic equipment, supporting responsible end-of-life disposal
Applications & Use Cases
- Emergency machine shutdown in manufacturing and process automation
- Control panel operator interface stations
- Industrial machinery and conveyor systems
- Packaging, assembly, and production line safety circuits
- Any application requiring a clearly identifiable, accessible emergency stop device
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.036 kg |
Technical 7
| Ambient Air Temperature | Operation -40 ... 70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Red |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Pull release |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Mechanical Durability | 100000 cycle |
Environmental 1
| Degree of Protection | Front IP66, Terminals IP20 |
|---|
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611521R1001 |
|---|---|
| Type designation | MPEP3-10R |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500372593 |
| eCl@ss | 27371210 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 5
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC001038 - Front element for mushroom push-button |
|---|---|
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| E-Number (Sweden) | 3705072 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.039 kg |
| Package Level 1 EAN | 7320500372593 |
| Shipping weight | 0.039 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611521R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- CCC
Quick answers
Questions about the MPEP3-10R
What is the HS code of MPEP3-10R for customs?
The tariff (HS) code on file for MPEP3-10R is 85369001.
What is the EAN of MPEP3-10R?
The EAN (GTIN) of MPEP3-10R is 7320500372593.
Where does MPEP3-10R ship from, and how fast?
MPEP3-10R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Reviews
Customer reviews
Series
ABB Modular Plastic Range
- Brand
- ABB
- Series
- Modular Plastic Range
