Part number
1SFA611510R1101
Model no
MPMT3-11R
$39.24 On request Dispatch — · From TürkiyeGet a Quote
Modular Plastic Range

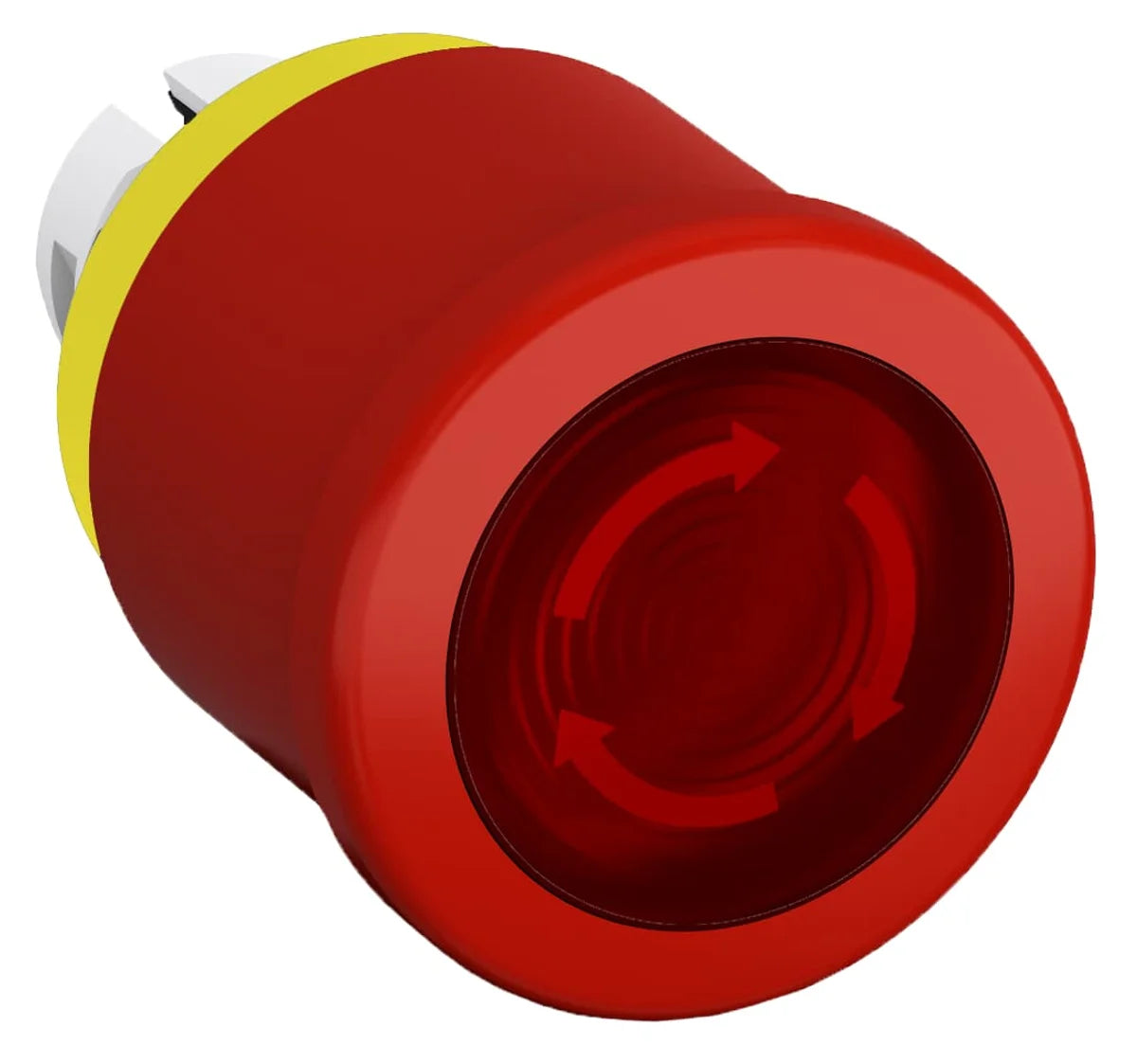

ABB 1SFA611510R1101 MPMT3-11R Emergency Stop Button 1NO+1NC Modular Plastic Range

Product Net Width
42 mm
Product Net Height
42 mm
Product Net Depth / Length
67 mm
Product Net Weight
0.041 kg
EAN
7320500307038
Description

About the MPMT3-11R

The ABB MPMT3-11R (SKU: 1SFA611510R1101) is an emergency stop button from the ABB Modular Plastic Range, designed for reliable machine shutdown and personnel safety in industrial control panels and automation systems. Featuring a 1NO+1NC contact configuration, the MPMT3-11R provides immediate circuit interruption when activated, meeting the demands of safety-critical applications. Weighing just 41 g, this compact pilot device is built for easy panel integration.

Certifications & Standards

  • CE: Conformity with European Union safety, health, and environmental protection requirements
  • cULus: Certified by UL for both Canadian (cUL) and US (UL) market safety requirements
  • RoHS: Compliant with EU Restriction of Hazardous Substances Directive — restricted materials kept within permitted limits
  • REACH: Compliant with EU REACH regulation on chemical substances used in manufacturing
  • WEEE: Registered under the EU Waste Electrical and Electronic Equipment Directive for proper end-of-life disposal
  • UKCA: UK Conformity Assessed marking for Great Britain market compliance

Applications & Use Cases

  • Machine safety shutdown in manufacturing and assembly lines
  • Emergency stop stations in control panels and operator interfaces
  • Industrial automation systems requiring immediate power interruption
  • Pendant control stations and pushbutton enclosures
  • OEM equipment requiring compact, modular pilot devices

Frequently Asked Questions

What does the MPMT3-11R contact configuration mean?
The 1NO+1NC designation means the MPMT3-11R includes one Normally Open and one Normally Closed contact, enabling both circuit energisation and de-energisation functions simultaneously upon actuation.

Is the ABB MPMT3-11R compatible with the Modular Plastic Range accessories?
Yes. The MPMT3-11R is part of ABB's Modular Plastic Range (MPMT3 series) and is designed to be used with compatible contact blocks and enclosures within that product family.

Which markets is the MPMT3-11R approved for?
The MPMT3-11R carries CE and UKCA markings for European and UK markets, plus cULus certification for North American applications, making it suitable for global deployments.

Specification

Full specification

42 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 42 mm
Product Net Height 42 mm
Product Net Depth / Length 67 mm
Product Net Weight 0.041 kg

Technical 7

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Red
Illumination Illuminated
Function Maintained
Sub-Function Twist release
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Mechanical Durability 100000 cycle

Environmental 1

Degree of Protection Front IP66
Show all 42 specifications ↓ Show less ↑30 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611510R1101
Type designation MPMT3-11R
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500307038
eCl@ss 27371210
Minimum Order Quantity 1 piece
Customs Tariff Number 8536508000

Material Compliance 5

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE Category Product Not in WEEE Scope

External Classifications and Standards 5

ETIM 6 EC001038 - Front element for mushroom push-button
ETIM 7 EC001038 - Front element for mushroom push-button
eClass V11.0 : 27371210
UNSPSC 39122216
E-Number (Sweden) 3716554

Logistics 10

Package Level 1 Units bag 1 piece
Package Level 1 Width 110 mm
Package Level 1 Depth / Length 150 mm
Package Level 1 Height 42 mm
Package Level 1 Gross Weight 0.041 kg
Package Level 1 EAN 7320500307038
Shipping weight 0.041 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611510R1101

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
Quick answers

Questions about the MPMT3-11R

What is the HS code of MPMT3-11R for customs?

The tariff (HS) code on file for MPMT3-11R is 8536508090.

What is the EAN of MPMT3-11R?

The EAN (GTIN) of MPMT3-11R is 7320500307038.

Where does MPMT3-11R ship from, and how fast?

MPMT3-11R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
