Part number
1SDA104715R1
$125.97 On request Dispatch — · From TürkiyeGet a Quote
Tmax XT

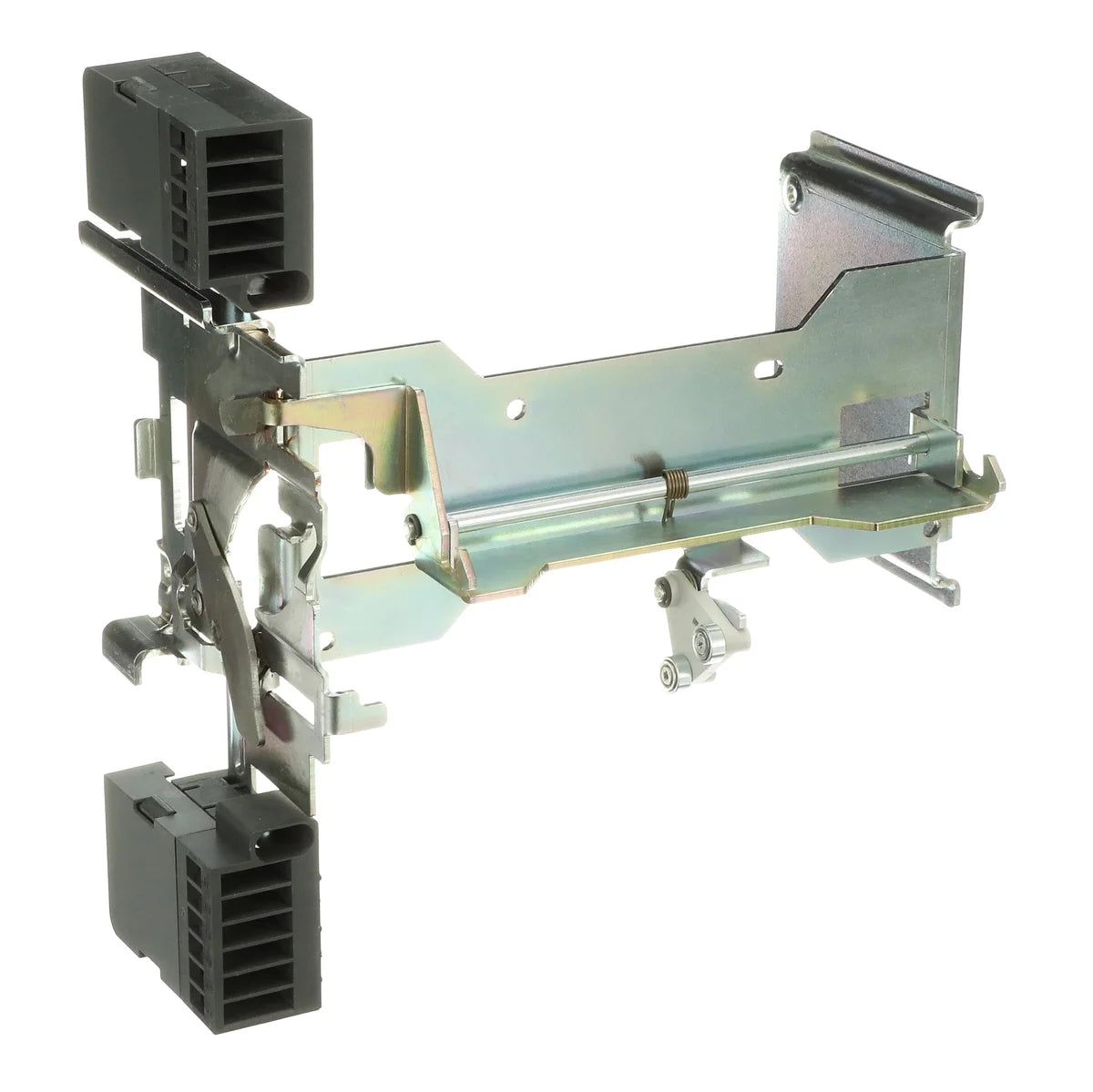

ABB 1SDA104715R1 Kit W MP XT6 800A 3p Modification Set for Power Circuit Breaker

Poles
3P
EAN
8015644068073
Description

About the 1SDA104715R1

The ABB 1SDA104715R1 Kit W MP XT6 800A 3p is a withdrawable modification set for the Tmax XT6 power circuit breaker series, enabling conversion or upgrade of 3-pole XT6 800A breakers to withdrawable mounting configuration. Designed for use in industrial switchgear and motor control centres, this compact kit (200 × 200 × 45 mm, 0.302 kg) provides a verified, OEM-quality solution for panel builders and maintenance engineers working with ABB Tmax XT distribution equipment.

Certifications & Standards

  • CE: Conforms to applicable European Union directives for electrical equipment
  • IEC 60947-2: Compliant with the international standard for low-voltage circuit breakers
  • IEC 60947: Meets the broader IEC low-voltage switchgear and controlgear standard family
  • UL 489: Listed to the UL standard for molded-case circuit breakers
  • RoHS: Restriction of Hazardous Substances directive compliant — free from restricted materials
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

  • Conversion of fixed-mounted ABB Tmax XT6 800A 3-pole circuit breakers to withdrawable configuration
  • Retrofit and maintenance upgrades in low-voltage main distribution boards (MDB) and motor control centres (MCC)
  • Industrial power distribution panels requiring hot-swap or draw-out breaker capability
  • OEM panel builders assembling new switchgear with ABB Tmax XT6 withdrawable breaker assemblies
Specification

Full specification

38 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 1

Product Net Weight 0.302 kg

Additional Information 6

Product Main Type Accessories for Tmax XT
Product Name Accessory
Product Type Accessory
Suitable For XT6
Suitable for Product Class SACE Tamx XT
Version W
Show all 38 specifications ↓ Show less ↑30 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 10

Part number 1SDA104715R1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644068073
ETIM class EC002049
eCl@ss 27370402
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 6

Configuration Type Loose or configurable
Number of Poles 3P
Order Multiple 1 piece
Rated Current (In) 800 A
Rated Uninterrupted Current (Iu) 800 A
Standards IEC60947-2, UL489

External Classifications and Standards 4

ETIM 10 EC002049 - Modification set for power circuit breaker
UNSPSC 39122221
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370402

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 200 mm
Package Level 1 Height 45 mm
Package Level 1 Depth / Length 200 mm
Package Level 1 Gross Weight 0.318 kg
Package Level 1 EAN 8015644068073
Shipping weight 0.302 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA104715R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC60947-2
  • UL489
Quick answers

Questions about the 1SDA104715R1

What is the HS code of 1SDA104715R1 for customs?

The tariff (HS) code on file for 1SDA104715R1 is 85389099.

What is the EAN of 1SDA104715R1?

The EAN (GTIN) of 1SDA104715R1 is 8015644068073.

Where does 1SDA104715R1 ship from, and how fast?

1SDA104715R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
