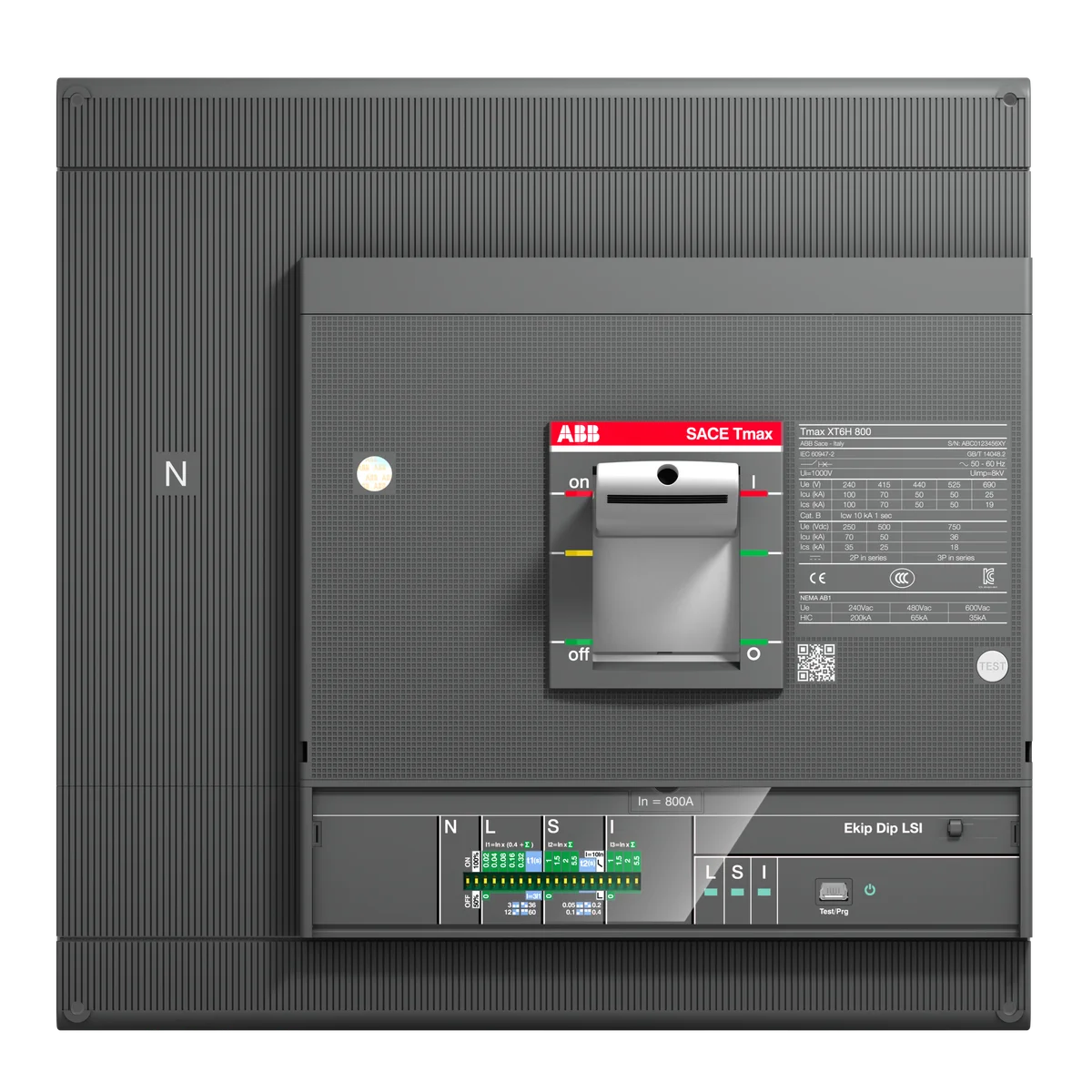

ABB 1SDA100754R1 XT6S 800 Ekip Dip LS/I In=800 4p F F 4-Pole 800A Fixed Moulded Case Circuit Breaker

The ABB XT6S 800 Ekip Dip LS/I In=800 4p F F (SKU: 1SDA100754R1) is a 4-pole, 800A fixed-mount power circuit-breaker from the Tmax XT6 series, engineered for transformer, generator, and installation protection in demanding industrial environments. With a breaking capacity of 85 kA at 220 V AC and the Ekip Dip LS/I electronic trip unit, this breaker delivers precise overcurrent and short-circuit protection for high-power distribution systems.

Technical Specifications

Certifications & Standards

• CE: Compliant with European Union safety, health, and environmental protection requirements
• IEC 60947-2: Meets international standard for low-voltage switchgear and controlgear — circuit-breakers
• RoHS: Restriction of Hazardous Substances compliant — restricts use of specific hazardous materials in electrical equipment
• REACH: Compliant with EU REACH regulation on chemicals and their safe use
• WEEE: Compliant with Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

• Transformer and generator feeder protection in industrial power distribution panels
• Main and sub-main circuit protection in large commercial and industrial installations
li>
• Protection of busbars and cable runs in high-power MCC and switchgear assemblies
• Control panel integration where 4-pole switching with neutral protection is required
