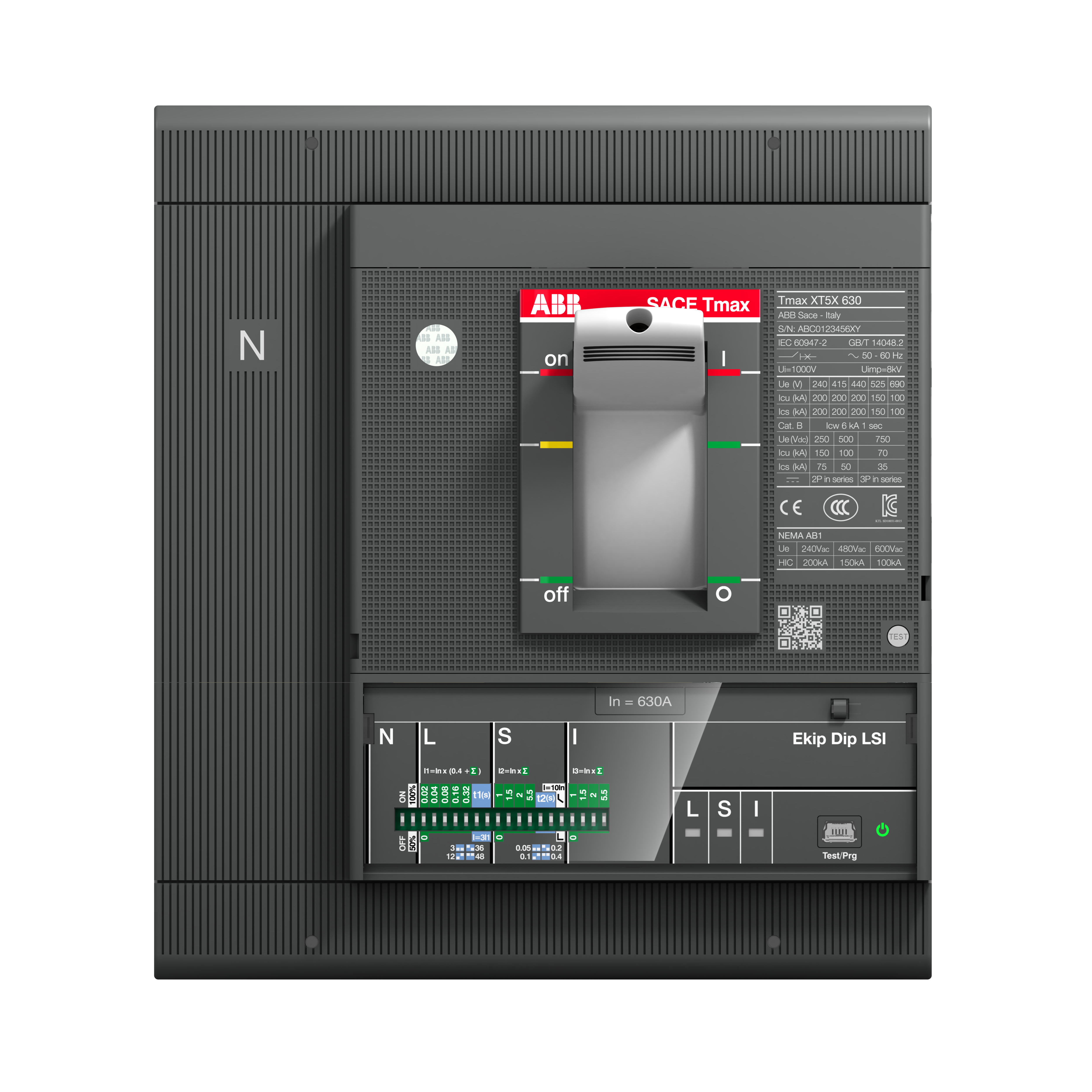

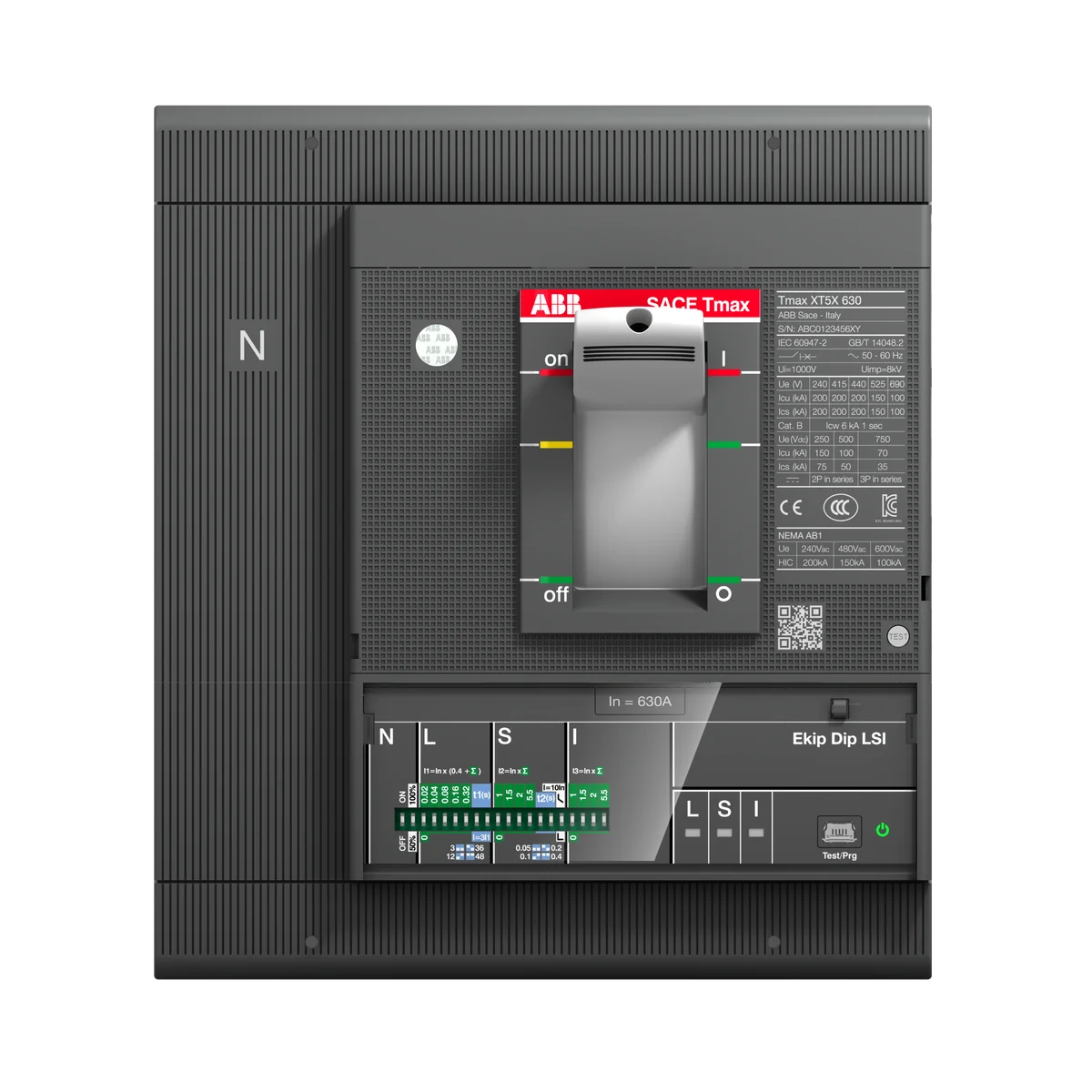

ABB 1SDA100467R1 XT5S 630 Ekip Dip LS/I In=630 4p F F 630A 4-Pole Fixed Molded Case Circuit Breaker

The ABB 1SDA100467R1 XT5S 630 Ekip Dip LS/I In=630 4p F F is a heavy-duty molded case circuit breaker (MCCB) rated at 630A with a 4-pole fixed configuration, delivering an exceptional breaking capacity of 85 kA at 220 V AC. Part of ABB's Tmax XT5 series, this MCCB integrates the Ekip Dip LS/I electronic trip unit for precise overload protection and short circuit protection, making it an ideal power circuit breaker for demanding industrial and commercial power distribution applications.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH chemical safety regulation
• IEC 60947-2: Certified to IEC standard for low-voltage switchgear and controlgear — circuit breakers
• IEC60947-2: Full conformity to IEC60947-2 for low-voltage circuit breaker performance requirements
• IEC61850: Compatible with IEC 61850 communication standard for substation automation
• CE: CE marked for conformity with applicable European Union directives

Applications & Use Cases

• Main and feeder protection in industrial power distribution panels
• Overload protection and short circuit protection for large motor circuits and transformer feeders
• Commercial building MV/LV switchboards requiring high breaking capacity
• Data centre and critical infrastructure power distribution with adjustable trip settings
• Applications requiring IEC 60947-2 compliant frame size 630A thermal magnetic or electronic trip MCCBs

Why Choose the ABB XT5S 630 Ekip Dip LS/I In=630 4p F F?

Engineered for reliability and precision, the XT5S 630 Ekip Dip LS/I In=630 4p F F offers procurement engineers and panel builders a compact yet powerful MCCB solution within the proven Tmax XT5 platform. The Ekip Dip LS/I electronic trip unit provides adjustable long-time (LS) and instantaneous (I) protection functions, offering flexibility across diverse load profiles. Its 85 kA breaking capacity ensures safe fault clearance in high-energy distribution networks, while the fixed 4-pole mounting design simplifies installation and maintenance in switchgear assemblies.
