Part number
1SDA073725R1
$506.58 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
ABB Emax 2

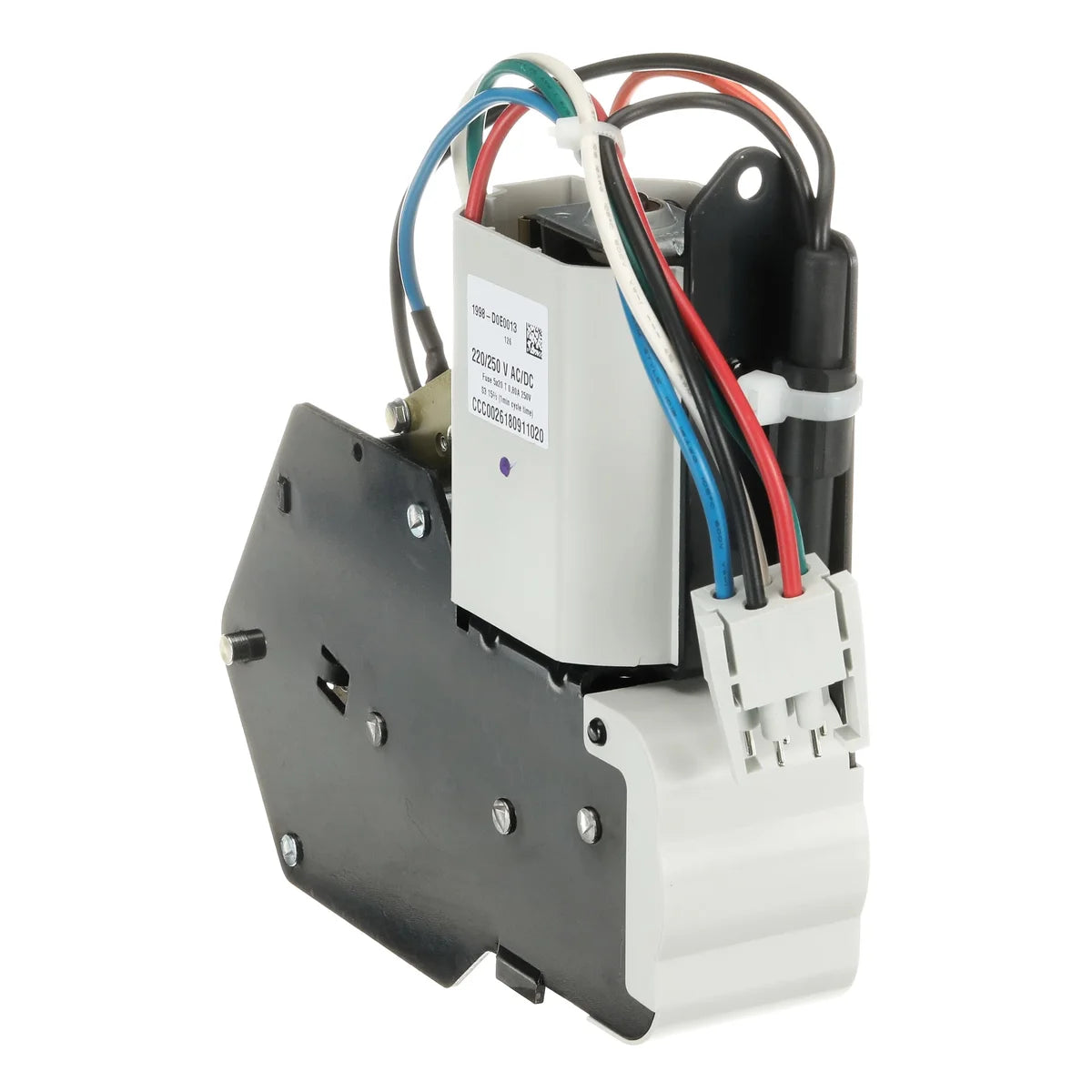

ABB 1SDA073725R1 M E2.2/3...E6.2/3 220-250 VAC/DC Geared Motor Device Accessory for Air Circuit Breaker

Rated operational voltage
220–250–DC V DC
EAN
8015644776589
Description

About the 1SDA073725R1

The ABB 1SDA073725R1 M E2.2/3...E6.2/3 220-250 VAC/DC is a geared motor device designed as an accessory for ABB Emax 2 series air circuit breakers, enabling remote electrical operation of the breaker's switching mechanism. Compatible across the full Emax 2 range from E2.2/3 through E6.2/3, this motor operator accepts a 220–250 V AC/DC supply and provides reliable, motorised spring charging for automated or remote control installations. Compact in design and weighing just under 2 kg, the M E2.2/3...E6.2/3 220-250 VAC/DC integrates directly into the Emax 2 breaker frame without additional mounting hardware.

Certifications & Standards

  • CE: Compliant with applicable European directives for electrical equipment
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • EU Directive 2011/65/EU: RoHS 2 directive compliance for restriction of hazardous substances in electrical equipment
  • EU Directive 2015/863: RoHS 3 amendment compliance extending the list of restricted substances
  • REACH: Compliant with EU REACH regulation (EC No 1907/2006) for chemical safety
  • IEC/UL: Designed and tested to IEC and UL international standards for electrical accessories
  • VDE: Verified to VDE standards for electrical safety in German and European markets
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for end-of-life disposal

Applications & Use Cases

  • Remote and automated spring charging of ABB Emax 2 air circuit breakers in main distribution boards
  • Motor control centres (MCCs) requiring motorised closing of high-current ACBs
  • Switchgear panels in industrial plants, data centres, and utility substations
  • Building management systems (BMS) where breaker operation must be initiated remotely or via PLC/SCADA
  • Standby and emergency power systems requiring automated transfer switching sequences
Specification

Full specification

39 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 5

Product Net Width 124 mm
Product Net Height 184 mm
Product Net Depth / Length 198 mm
Product Net Weight 1.944 kg
Gross Weight 2.046 kg

Additional Information 5

Product Main Type Accessories for Emax 2, Accessories for Emax 3
Product Name Accessory
Product Type Accessory
Suitable For E2.2, E4.2, E6.2, E2.3, E4.3, E6.3
Suitable for Product Class SACE Emax 2, SACE Emax 3
Show all 39 specifications ↓ Show less ↑28 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 10

Part number 1SDA073725R1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644776589
ETIM class EC001030
eCl@ss 27370412
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 4

Configuration Type Loose or configurable
Current Type AC/DC
Rated Voltage (Ur) 220...250 V
Standards IEC/UL

External Classifications and Standards 4

ETIM 10 EC001030 - Motor operator for power circuit-breaker
UNSPSC 39121601
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370412

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 124 mm
Package Level 1 Height 184 mm
Package Level 1 Depth / Length 198 mm
Package Level 1 Gross Weight 2.046 kg
Package Level 1 EAN 8015644776589
Shipping weight 2.046 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA073725R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • VDE
  • IEC/UL
Quick answers

Questions about the 1SDA073725R1

Which supply voltage is 1SDA073725R1 rated for?

The rated operational voltage of 1SDA073725R1 is 220–250–DC V DC.

What is the HS code of 1SDA073725R1 for customs?

The tariff (HS) code on file for 1SDA073725R1 is 85389099.

What is the EAN of 1SDA073725R1?

The EAN (GTIN) of 1SDA073725R1 is 8015644776589.

Where does 1SDA073725R1 ship from, and how fast?

1SDA073725R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
