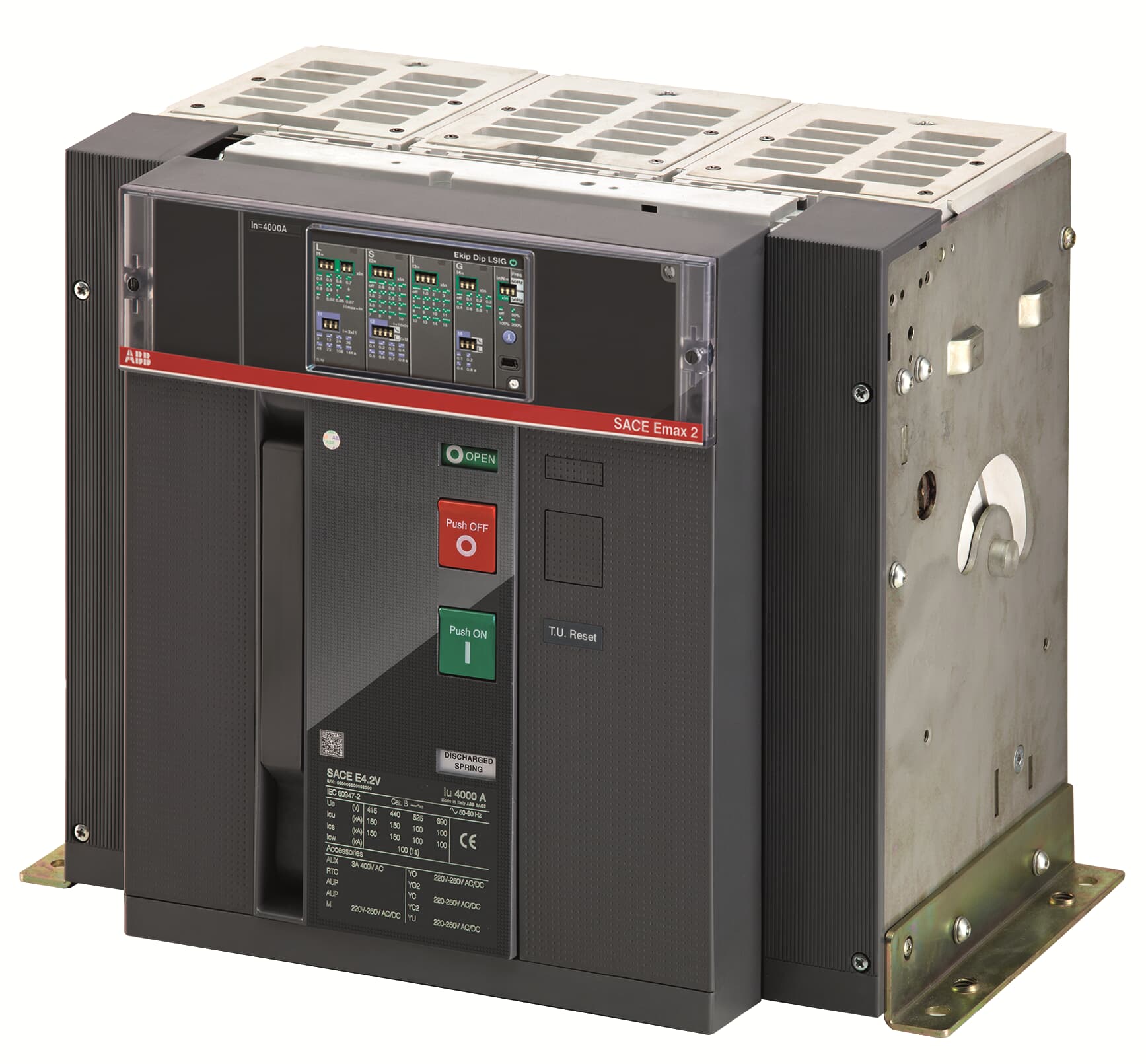

The ABB 1SDA071192R1 — catalog number E4.2N 4000 Ekip Dip LSI 3p F HR — is a heavy-duty 4000 A, 3-pole fixed-mount air circuit breaker from the SACE Emax 2 series, delivering a rated breaking capacity of 66 kA at 400 V AC. Designed for transformer, generator, and main installation protection, this breaker combines the Ekip Dip LSI protection unit with a robust fixed (F) horizontal rear (HR) connection, making it a reliable solution for demanding industrial and utility power distribution systems.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| Simplified SCIP | a16503c8-c993-4d7a-9277-704db1bb451b Germany, 8b03cfe9-7657-4778-acb1-5e456af5c76a Denmark, 64831dac-5718-413a-b2dd-c2a16236b94f Sweden, 7635dc57-155c-4b3b-8d16-637f7a9317ca Estonia, bf55e5c1-47fb-4603-bc85-150f2bba6810 Netherlands, 8d8d3917-aca7-4875-98c5-244d35793f56 Bulgaria, cc5cb3c7-f20f-4e57-a699-41c96b5a1eef Norway, 560d9c18-bf6e-4a6e-b95a-82f0dcbd0d2c Sweden, 55ebef71-4502-4891-8767-e9a15ef09392 Poland, 7e9377e0-b60f-471e-982f-360fb85b51c6 France, 5b96a5ce-08d7-4ea3-9d9d-b2ed25c73f5d Belgium, 7f3be359-1216-4d35-b9d4-eab9cbb290fd Poland, 13fc1439-00ad-45bf-abdd-5ede1ce20a7d Hungary, de9a0119-6bd3-4d97-a5d3-1e74d280ccf7 Belgium, 08ff7a7d-f7c4-4a97-ab1f-2f60e52ccc4e Germany, 18044daa-d0c0-4608-bafb-451bb9d8efe4 Croatia, de6447a0-df24-4a20-8466-f5f11a930a19 Finland, 5ede7a36-3b83-4497-b7e0-ef217691ad89 Czechia, f49fce99-7561-4c32-880a-478431f7efd7 Greece, e5eed5bf-546a-4db4-a608-d4b83c43c056 Poland, f40ef067-0a7a-4928-831d-6affa0d2f0c7 Germany, 8ad28a13-de77-4592-95fd-897a501569c8 Germany, 05702ea0-ab49-475f-8469-3cf48dabeb77 Portugal, 1ac41cb5-8851-4d50-97e5-9a58e2df1d99 Spain, 6e3f01fd-be03-4be8-9d80-b02a9984a4e1 Germany, 1c74a6dc-b960-484a-a4e4-4114d79c6a3d Hungary, a940f727-3880-42c1-bdc0-d5e1d498ddaf France |
| Product Net Width | 384 mm |
|---|---|
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Product Main Type | SACE Emax 2 |
|---|---|
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Part number | 1SDA071192R1 |
|---|---|
| Type designation | E4.2N |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644750428 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Connecting Capacity | 4000 mm² |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle, Ue = 500 ... 690 V 4000 cycle, 20 cycles per hour |
| Mechanical Durability | 15000 cycle, 60 cycles per hour |
| Number of Poles | 3P |
| Power Loss | 465 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 66 kA, (230 V AC) 66 kA, (380 V AC) 66 kA, (400 V AC) 66 kA, (415 V AC) 66 kA, (440 V AC) 66 kA, (500 V AC) 66 kA, (660 V AC) 66 kA, (690 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA, for 3 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 66 kA, (415 V AC) 66 kA, (440 V AC) 66 kA, (500 V AC) 66 kA, (525 V AC) 66 kA, (690 V AC) 66 kA |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644750428 |
| Shipping weight | 63.0 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Low stock |
