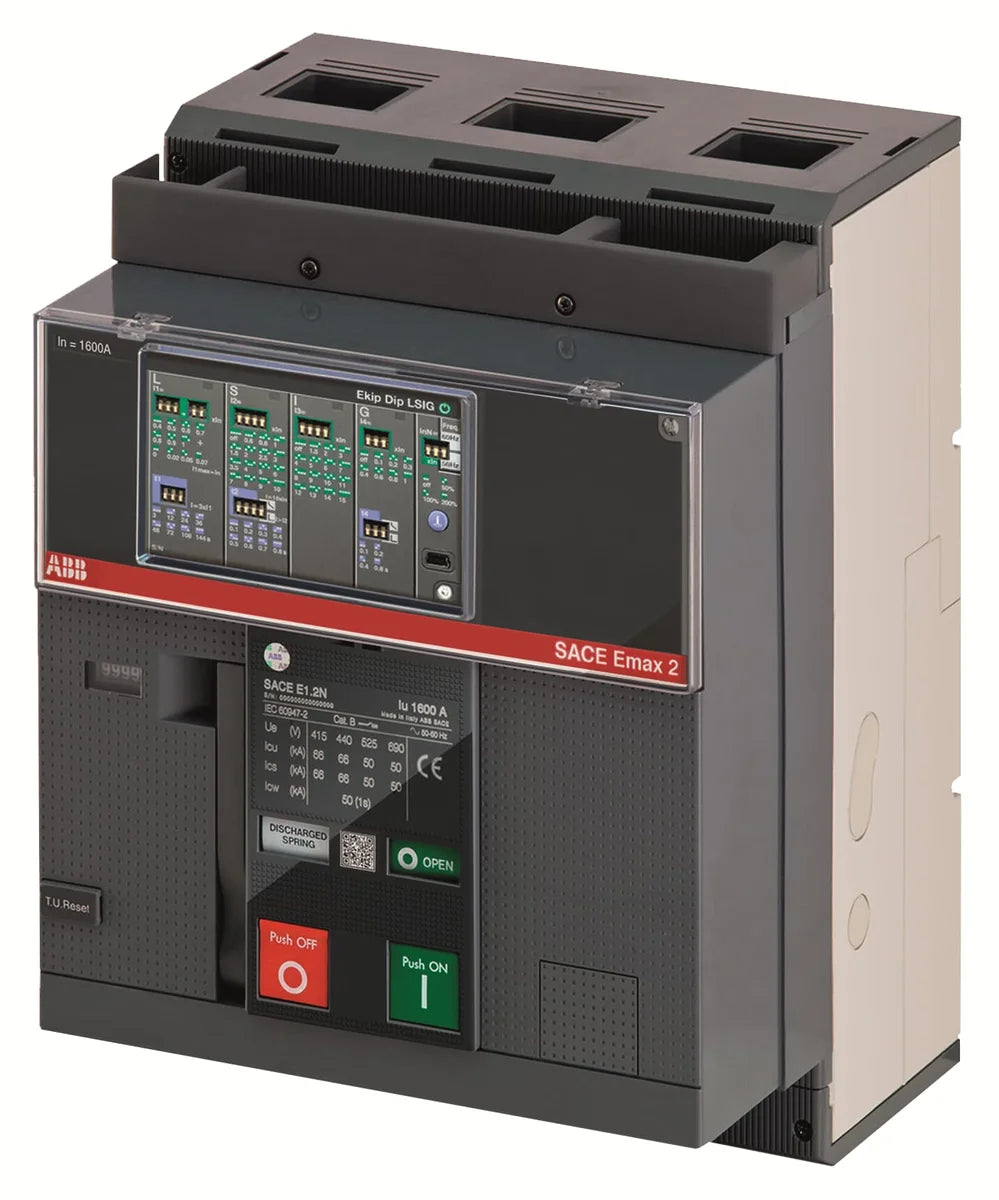

ABB 1SDA070802R1 E1.2N 1000 Ekip Dip LSI 3p F F 1000A 3P 66kA Air Circuit Breaker

The ABB 1SDA070802R1 E1.2N 1000 Ekip Dip LSI 3p F F is a 1000 A, 3-pole fixed-mount air circuit breaker from the SACE Emax2 E1.2 series, delivering a breaking capacity of 66 kA at 400 V AC. Equipped with the Ekip Dip LSI (Long-time, Short-time, Instantaneous) electronic trip unit, this ACB provides precise, field-adjustable overcurrent protection for demanding low-voltage power distribution networks.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• IEC: Manufactured and tested in accordance with IEC standards
• IEC 60947: Compliant with the IEC 60947 series for low-voltage switchgear and controlgear
• VDE: Certified by the German Association for Electrical, Electronic & Information Technologies
• ATEX: Approved for use in potentially explosive atmospheres
• CSA: Canadian Standards Association certification for North American markets
• UL 2799: UL certification under standard 2799
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical safety
• EU Directive 2011/65/EU: RoHS 2 directive compliance confirmed
• Amendment 2015/863: Compliant with the RoHS 3 amendment extending restricted substance list
• EN 45555: Compliant with general methods for assessment of the recyclability and recoverability of electrical and electronic equipment
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life management

Applications & Use Cases

The E1.2N 1000 Ekip Dip LSI 3p F F air circuit breaker is engineered for main incoming, bus-coupler, and feeder protection in low-voltage main distribution boards and sub-distribution panels. Its robust 66 kA breaking capacity at 400 V AC makes it well-suited for high-fault-level industrial installations including manufacturing plants, data centres, commercial high-rise buildings, infrastructure projects, and utility substations. The Ekip Dip LSI trip unit allows on-site adjustment of protection thresholds without additional tools, simplifying commissioning and system upgrades. The fixed (F F) mounting configuration ensures a compact, cost-effective installation where drawout functionality is not required.
