ABB 1SDA073282R1 E6.2V 6300 Ekip Dip LSI 4p WMP 150kA Air Circuit Breaker Accessory

% $-25,313.71
ABB 1SDA073282R1 E6.2V 6300 WMP Ekip Dip LSI withdrawable moving part
ABB 1SDA073282R1 E6.2V 6300 WMP Ekip Dip LSI withdrawable moving part

ABB 1SDA073282R1 E6.2V 6300 Ekip Dip LSI 4p WMP 150kA Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA073282R1
Catalog No: E6.2V 6300 Ekip Dip LSI 4p WMP
Series: Emax 2
Tariff Code (HS): 853890
Rated Current: 6300
Breaking Capacity: 150 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$25,313.71

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

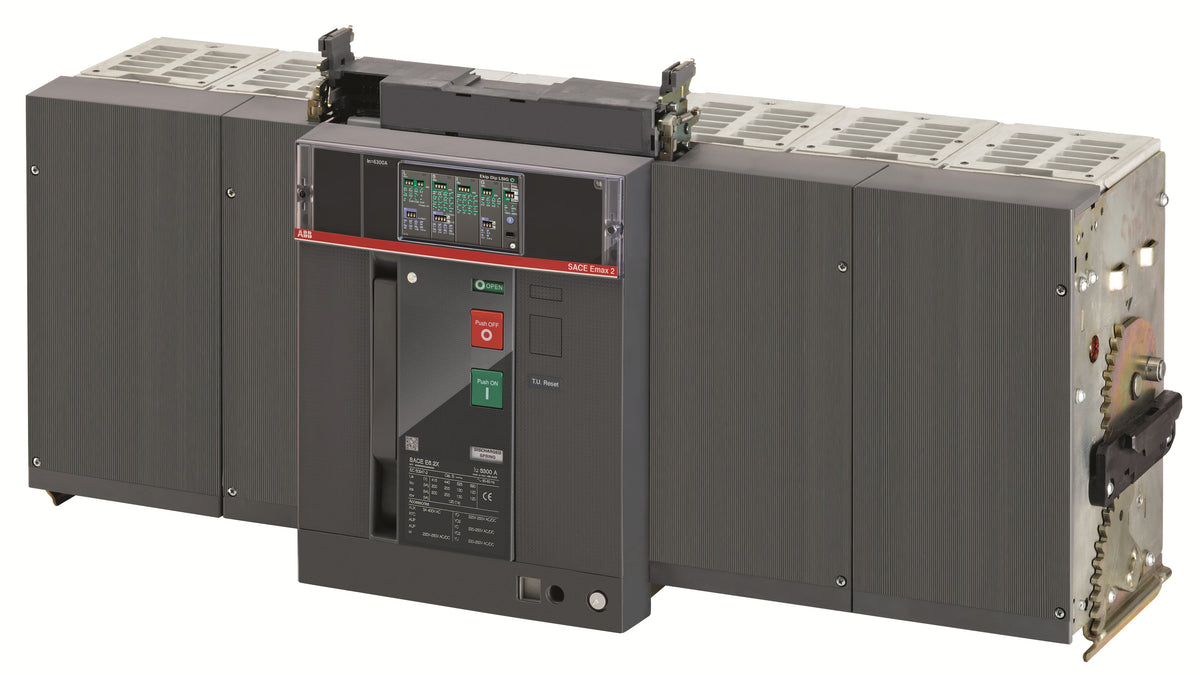

The ABB 1SDA073282R1 is the withdrawable moving part (plug-in truck) for the SACE Emax 2 E6.2V 6300 air circuit breaker, fitted with the Ekip Dip LSI electronic release and rated 6300 A across 4 poles. It carries the same 150 kA ultimate breaking capacity (Icu) at 400 V AC as the complete breaker and replaces or duplicates the draw-out unit for withdrawable installations.

Technical Specifications

SKU 1SDA073282R1
Brand ABB
Series Emax 2
Catalog Designation E6.2V 6300 Ekip Dip LSI 4p WMP
EAN 8015644771324
Component Type Withdrawable Moving Part (WMP)
Rated Current (In/Iu) 6300 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Number of Poles 4P
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 150 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 150 kA (100% of Icu)
Rated Short-time Withstand Current (Icw) 100 kA / 1s, 100 kA / 3s
Release Ekip Dip LSI
Release Type Electronic (EL)
Short-Circuit Performance Level V
Current Type AC
Power Loss 1550 W
Neutral Pole Current 50% of Iu
Dimensions (W x H x D) 929 x 425 x 383 mm
Net Weight 134 kg

Selection Notes

In a withdrawable (W) Emax 2 installation, the WMP is the drawout truck ordered separately from the fixed cassette - use this part number to add a spare or replacement unit without re-specifying the full breaker. Its Ekip Dip LSI release and 150 kA Icu at 400 V AC match the F HR fixed version in the same frame, so the two are not interchangeable positions: the WMP requires a withdrawable cassette, while the F HR variant bolts directly to fixed busbar connections.

Technical Details

Short Description
ABB E6.2V 6300 Ekip Dip LSI withdrawable moving part (WMP), 4-pole, 150 kA at 400 V AC.
Rated Current (Ampere)
6300
Breaking Capacity (kA)
150 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E6.2V 6300 Ekip Dip LSI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E6.2V 6300 Ekip Dip LSI 4p WMP
Tariff Code
853890
