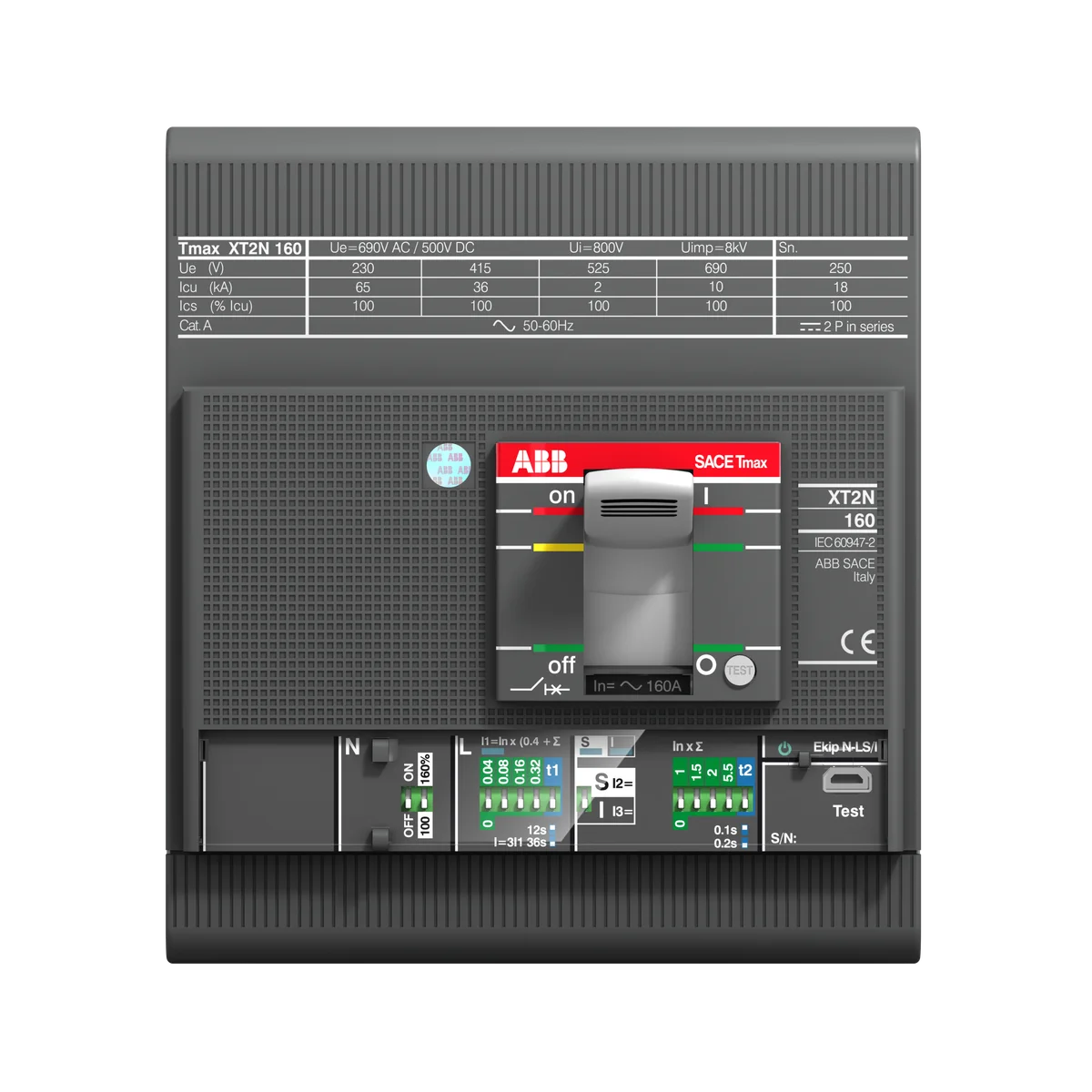

ABB 1SDA067095R1 XT2N 160 Ekip Dip LS/I In=160A 4pFF InN=100% 4-Pole 160A Fixed Air Circuit Breaker

The ABB 1SDA067095R1 — catalog number XT2N 160 Ekip Dip LS/I In=160A 4pFF InN=100% — is a 4-pole, 160 A fixed-mount air circuit breaker from the Tmax XT2 series, engineered for low-voltage power distribution and switchgear applications. Equipped with the Ekip Dip electronic trip unit providing LS/I (long-time and instantaneous) protection, this ACB offers precise, adjustable overcurrent and short-circuit protection with a rated neutral current of 100%. Its compact 120 × 130 × 82.5 mm footprint and 1.6 kg weight make it well-suited for space-constrained panel installations.

Technical Specifications

Certifications & Standards

• IEC 60947-2: International standard for low-voltage switchgear and controlgear — circuit breakers
• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• ATEX: Certified for use in potentially explosive atmospheres per EU Directive 2014/34/EU
• VDE: Verified by Verband der Elektrotechnik to German and European electrical safety standards
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU Regulation (EC) No 1907/2006 on chemical safety
• EU Directive 2011/65/EU: RoHS Directive — restriction of hazardous substances in electrical equipment
• Amendment 2015/863: EU RoHS amendment extending restricted substance list
• EN 45555: General methods for assessing the energy efficiency and other resource aspects of energy-related products
• UL 2799: Zero waste to landfill environmental claim validation
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU

Applications & Use Cases

• Main and sub-distribution boards in industrial and commercial buildings
• Protection of busbars, feeders, and outgoing circuits in low-voltage switchgear panels
• Motor feeder and generator protection requiring adjustable LS/I trip characteristics
• Data centres, infrastructure projects, and critical power systems
• Applications requiring ATEX compliance in hazardous area installations
