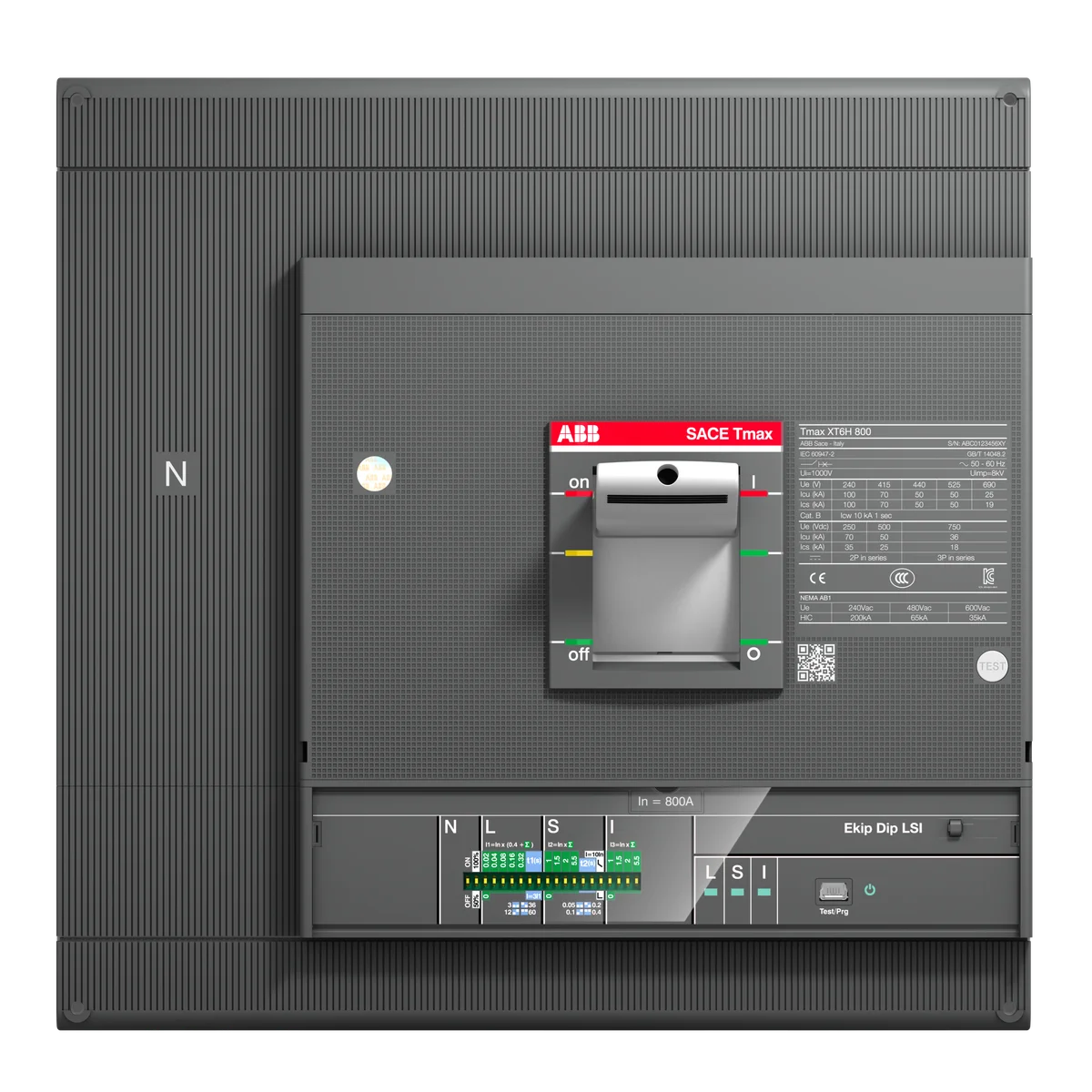

ABB 1SDA100732R1 XT6N 800 Ekip Dip LS/I In=800 4p F F 800A 4-Pole Fixed Moulded Case Circuit Breaker

The ABB 1SDA100732R1 XT6N 800 Ekip Dip LS/I In=800 4p F F is a 800A, 4-pole moulded case circuit breaker from ABB's Tmax XT6 series, engineered for reliable overcurrent and short-circuit protection in demanding industrial and commercial power distribution systems. Featuring the Ekip Dip LS/I electronic trip unit with a rated current of 800A and a breaking capacity of 36 kA at 400 V AC, this fixed-mount MCCB delivers precision protection for critical electrical installations.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with the Restriction of Hazardous Substances Directive, ensuring restricted use of harmful materials in electrical equipment.
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) concerning the registration, evaluation, authorisation and restriction of chemicals.
• EU Directive 2011/65/EU: Meets the European Union RoHS Directive for electrical and electronic equipment.
• Amendment 2015/863: Compliant with the 2015/863 amendment updating the restricted substances list under the RoHS framework.
• IEC 60947-2: Manufactured and tested in accordance with IEC 60947-2, the international standard governing low-voltage circuit breakers.
• CE: Carries the CE marking, confirming conformity with applicable European health, safety, and environmental protection standards.

Applications & Use Cases

• Main and feeder protection in industrial switchboards and power distribution panels
• Protection of motors, transformers, and large electrical loads rated up to 800 A
• Commercial building LV distribution boards requiring high breaking capacity
• Control panels in manufacturing, utilities, and infrastructure applications
• Data centres and critical power installations demanding reliable overcurrent protection
