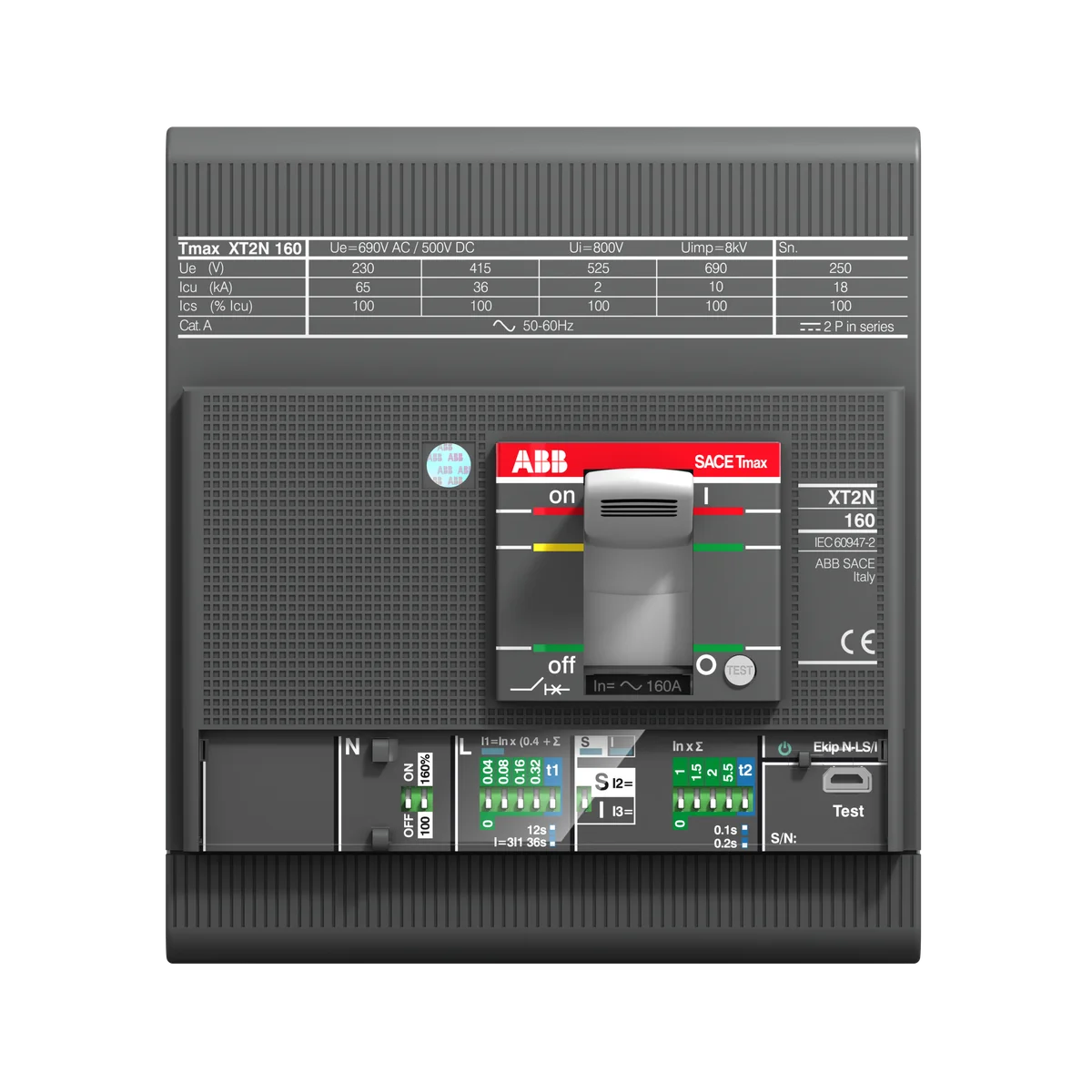

ABB 1SDA067093R1 XT2N 160 Ekip Dip LS/I In=100A 4p F F 4-Pole 100A Fixed Air Circuit Breaker

The ABB 1SDA067093R1 XT2N 160 Ekip Dip LS/I In=100A 4p F F is a 4-pole, 100 A fixed-mount air circuit breaker from the Tmax XT2 series, designed for low-voltage power distribution and motor circuit protection. Featuring the Ekip Dip electronic trip unit with LS/I (long-time and instantaneous) protection functions, the XT2N 160 Ekip Dip LS/I In=100A 4p F F delivers precise, field-adjustable overcurrent protection for industrial switchgear panels, MCC assemblies, and distribution boards.

Technical Specifications

Certifications & Standards

• IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers standard compliance
• CE: Conformité Européenne — meets all applicable EU product safety, health, and environmental requirements
• ATEX: Certified for use in explosive atmospheres per EU ATEX directive
• VDE: Verified by the Association for Electrical, Electronic & Information Technologies (Germany)
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation (Registration, Evaluation, Authorisation and Restriction of Chemicals)
• EU Directive 2011/65/EU: RoHS directive — restriction of hazardous substances in electrical and electronic equipment
• Amendment 2015/863: RoHS 3 amendment expanding substance restriction list
• UL 2799: UL standard compliance for electrical safety
• WEEE: Waste Electrical and Electronic Equipment directive — compliant with EU recycling and disposal requirements

Applications & Use Cases

• Main and branch circuit protection in industrial low-voltage power distribution panels
• Motor control centre (MCC) feeder and outgoing circuit protection
• Generator and transformer outgoing protection where 4-pole switching is required
• Commercial and industrial switchgear assemblies requiring IEC 60947-2 compliance
• Hazardous area installations where ATEX-rated components are mandated
• Applications requiring adjustable LS/I electronic trip characteristics for precise coordination
