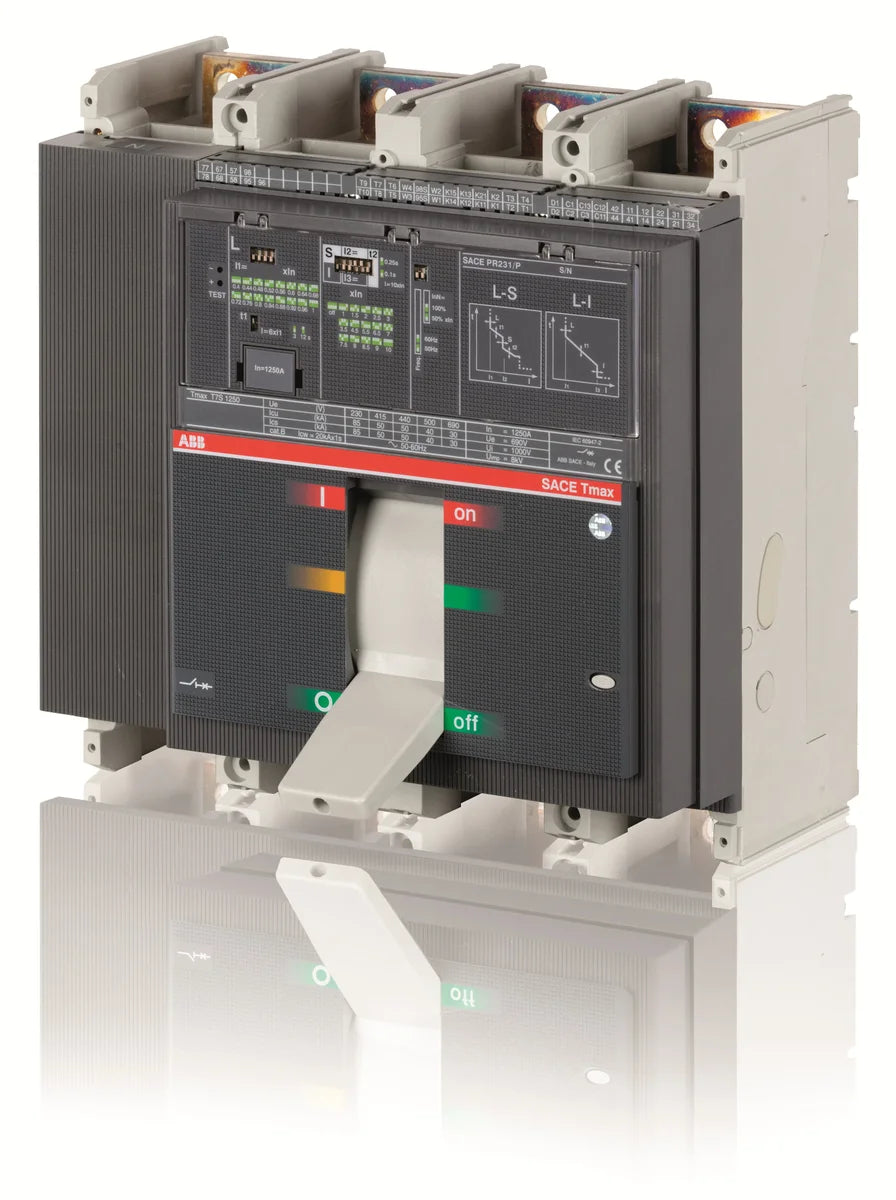

The ABB 1SDA063002R1 T7S 1600 PR231/P LS/I In=1600A 4p F F is a 1600 A, 4-pole fixed-mount power circuit breaker from ABB's Tmax T7S series, engineered for reliable protection of transformers, generators, and electrical installations in demanding industrial environments. Equipped with the PR231/P LS/I electronic release, this breaker delivers precise long-time and instantaneous protection, making it an authoritative solution for high-current distribution panels and switchgear assemblies.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Width | 280 mm |
|---|---|
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 17.619 kg |
| Product Main Type | SACE Tmax T |
|---|---|
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Part number | 1SDA063002R1 |
|---|---|
| Type designation | T7S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644655518 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 2000 cycle, 60 cycles per hour |
|---|---|
| Mechanical Durability | 10000 cycle, 60 cycles per hour |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 77 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 50 kA, (400 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 40 kA, (690 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 50 kA, (400 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 40 kA, (690 V AC) 30 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers, Front |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Package Level 1 Units | 1 piece |
|---|---|
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 18.546 kg |
| Package Level 1 EAN | 8015644655518 |
| Shipping weight | 17.619 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
