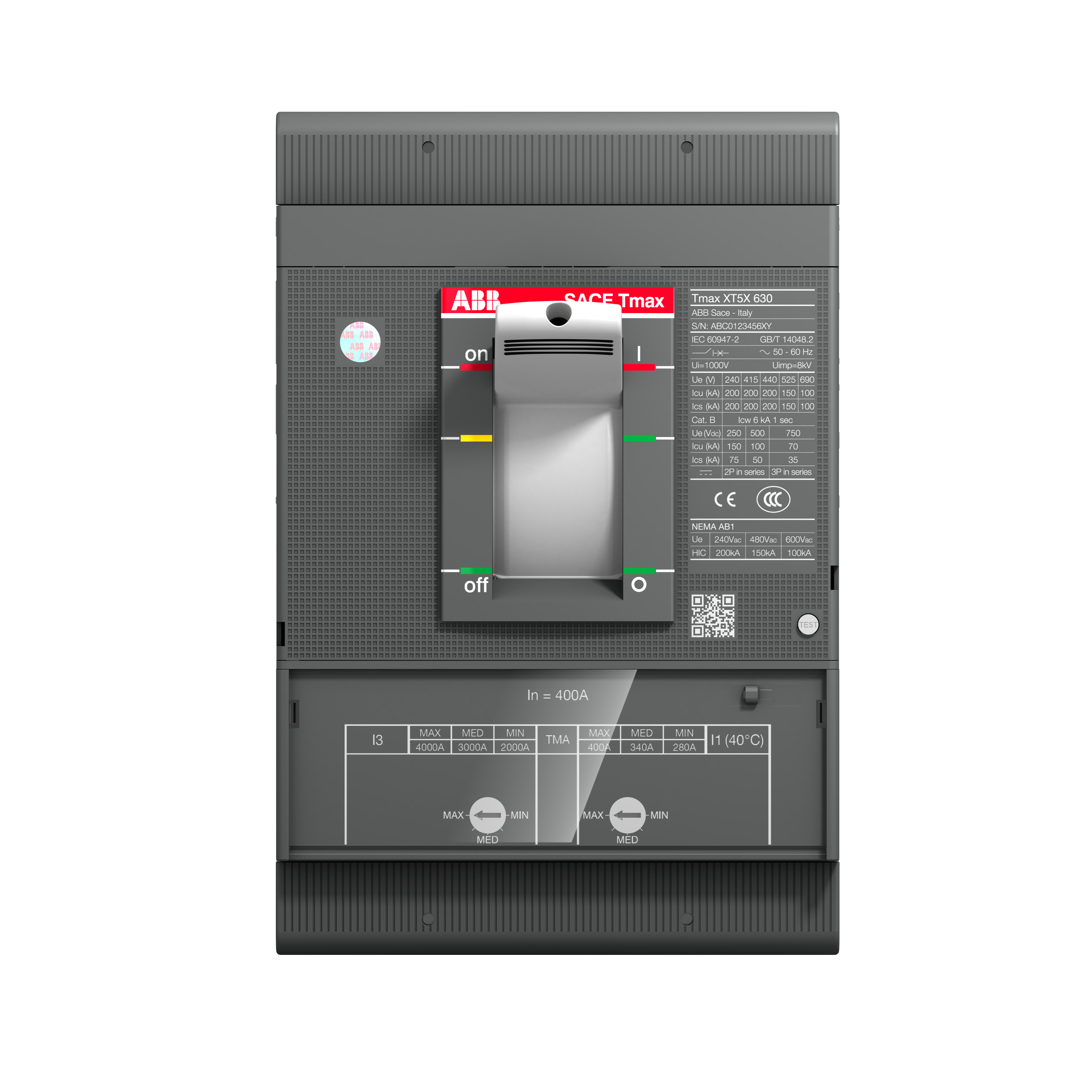

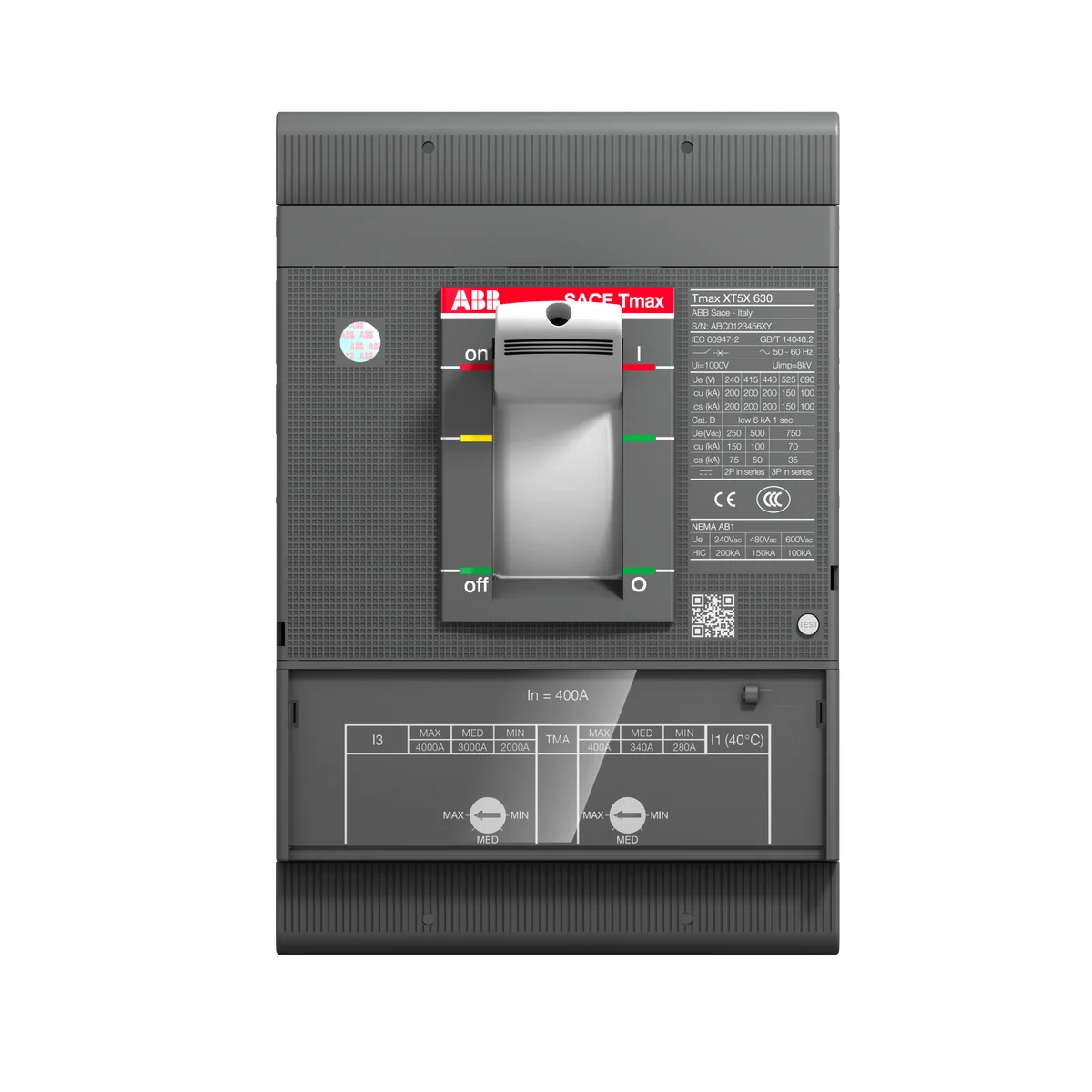

ABB 1SDA100415R1 XT5S 400 TMA 400-4000 3p F F 400A 3-Pole Fixed Moulded Case Circuit Breaker

The ABB 1SDA100415R1 XT5S 400 TMA 400-4000 3p F F is a 400A, 3-pole fixed-mount power circuit-breaker from the Tmax XT5 series, engineered for reliable protection of transformers, generators, and installation systems. Delivering a breaking capacity of 50 kA at 400 V AC, this industrial-grade device meets the demands of the most critical control panel and power distribution applications. Compact at 140 mm × 205 mm × 103.5 mm and weighing 4.775 kg, the XT5S 400 TMA 400-4000 3p F F combines robust performance with space-efficient design.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with Restriction of Hazardous Substances requirements
• REACH: Compliant with EU REACH chemical safety regulation
• EU Directive 2011/65/EU: Restriction of hazardous substances in electrical and electronic equipment
• Amendment 2015/863: Updated substance restrictions under EU RoHS framework
• IEC 60947-2: International standard for low-voltage circuit-breakers
• IEC61850: Communication standard for intelligent electronic devices in substations
• EN45555-61: European standard for ecodesign and energy-related products
• EN45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
• CE: European conformity marking — meets applicable EU directives
• WEEE: Waste electrical and electronic equipment directive compliant

Applications & Use Cases

• Transformer protection in industrial power distribution systems
• Generator protection in standby and prime power installations
• Installation protection in commercial and industrial control panels
• Overload and short-circuit protection in demanding electrical networks
• Applications requiring high breaking capacity (50 kA) at 400 V AC
