Part number
1SDA062890R1
Model no
T7S
$6,060.89 On request Dispatch — · From TürkiyeGet a Quote
Tmax T7S

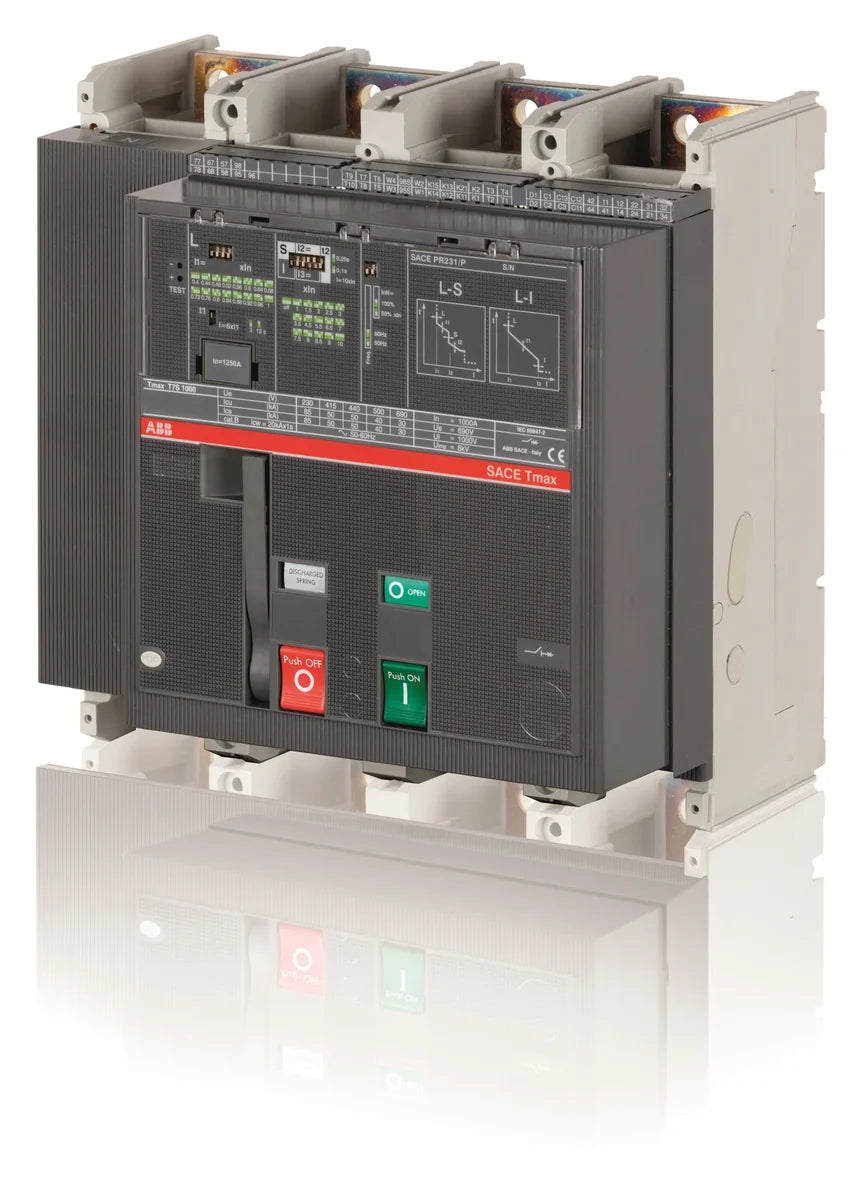

ABB 1SDA062890R1 T7S 1250 PR231/P LS/I In=1250A 4p F F M 1250A 4P Fixed Power Circuit Breaker

Rated current
1250 A
Poles
4P
Breaking capacity
(400) 50 kA
EAN
8015644654399
Description

About the T7S

The ABB 1SDA062890R1, catalogued as T7S 1250 PR231/P LS/I In=1250A 4p F F M, is a 1250A 4-pole fixed-mounted power circuit breaker from the Tmax T7S series, engineered for transformer, generator, and installation protection in demanding industrial power distribution systems. Equipped with the PR231/P LS/I electronic release, it delivers precise long-time and instantaneous overcurrent protection, ensuring the integrity of critical distribution infrastructure. Compact yet robust at 280 × 268 × 178 mm and 14 kg, this breaker is designed for panel builders and OEMs requiring high-performance protection in a fixed-frame format.

Certifications & Standards

  • CE: Compliant with applicable European Union directives for electrical equipment
  • IEC: Designed and tested in accordance with IEC standards for power circuit breakers
  • RoHS: Compliant with EU Directive 2011/65/EU (Restriction of Hazardous Substances) and Amendment 2015/863
  • REACH: Compliant with EU REACH regulation on chemical substance safety
  • EU Directive 2011/65/EU & Amendment 2015/863: Full compliance with the expanded RoHS substance restriction requirements
  • WEEE: Registered and compliant with EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

  • Transformer feeder and outgoing protection in main distribution boards
  • Generator circuit breaker applications requiring high-reliability tripping
  • Installation protection in industrial plants, data centres, and utilities
  • Panel builder and OEM integration in fixed-format MCC and switchgear assemblies
  • Critical infrastructure projects demanding IEC-certified, CE-marked protective devices
Specification

Full specification

54 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 280 mm
Product Net Height 268 mm
Product Net Depth / Length 178 mm
Product Net Weight 14 kg

Additional Information 6

Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Suitable For T7M
Suitable for Product Class Moulded Case Circuit Breakers
Version F
Show all 54 specifications ↓ Show less ↑43 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA062890R1
Type designation T7S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644654399
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 18

Electrical Durability 2000 cycle, 60 cycles per hour
Mechanical Durability 10000 cycle, 60 cycles per hour
Number of Poles 4P
Power Loss at Rated Operating Conditions per Pole 47 W
Rated Current (In) 1250 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 50 kA, (400 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 40 kA, (690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 50 kA, (400 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 40 kA, (690 V AC) 30 kA
Rated Uninterrupted Current (Iu) 1250 A
Release PR231/P-LS/I
Release Type EL
Short-Circuit Performance Level S
Standards IEC
Sub-type T7
Terminal Connection Type Fixed Circuit-Breakers, Front

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units 1 piece
Package Level 1 Width 360 mm
Package Level 1 Height 350 mm
Package Level 1 Depth / Length 360 mm
Package Level 1 Gross Weight 15.5 kg
Package Level 1 EAN 8015644654399
Shipping weight 14.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA062890R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC
Quick answers

Questions about the T7S

What is the rated current of T7S?

The rated current of T7S is 1250 A.

What is the HS code of T7S for customs?

The tariff (HS) code on file for T7S is 85362090.

What is the EAN of T7S?

The EAN (GTIN) of T7S is 8015644654399.

Where does T7S ship from, and how fast?

T7S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
