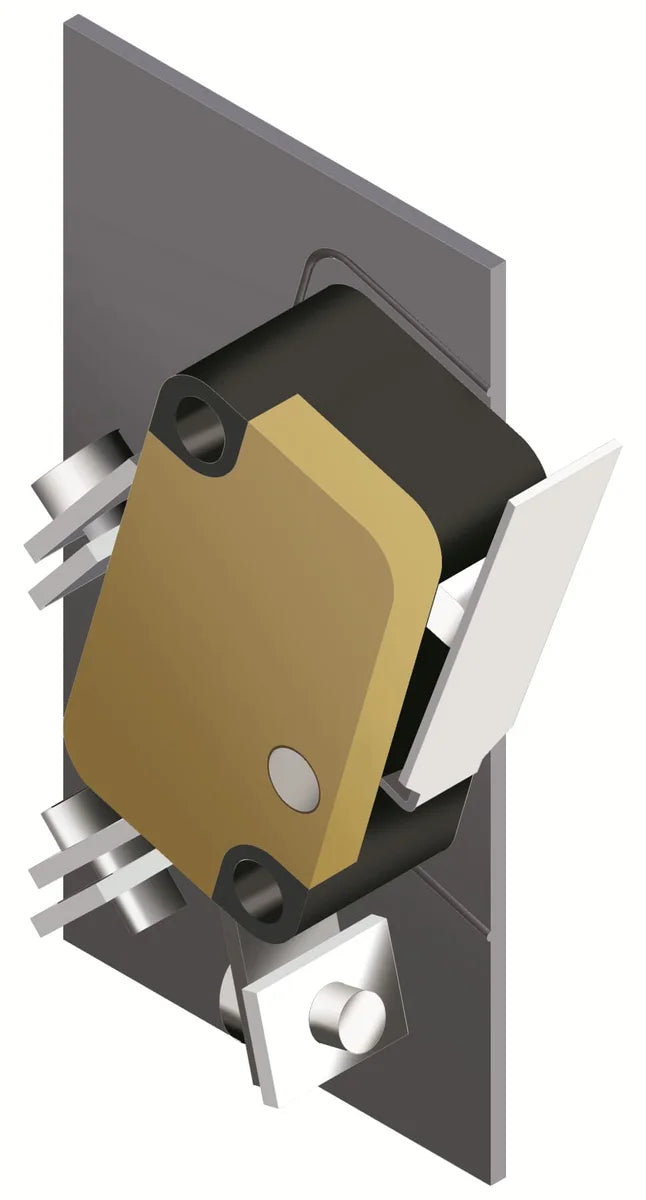

ABB 1SDA062111R1 AUP T7-T7M-X1 250Va.c. (2INS+2TEST+2EXT) 250V AC Position Contacts Accessory for Circuit Breaker

The ABB 1SDA062111R1 AUP T7-T7M-X1 250Va.c. (2INS+2TEST+2EXT) is a factory-approved position contacts accessory designed for ABB Tmax T7 and T7M series circuit breakers, rated at 250V AC. Combining two insertion contacts, two test contacts, and two external contacts in a single unit, this accessory enables accurate position signalling and functional testing in withdrawable circuit breaker installations. Compact and lightweight at just 0.03 kg, it integrates directly into the withdrawable chassis without additional hardware.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union safety, health, and environmental protection requirements
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation on chemical substance safety
• IEC: Designed and tested in accordance with applicable IEC standards for low-voltage switchgear accessories
• WEEE: Registered under the EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

The AUP T7-T7M-X1 250Va.c. (2INS+2TEST+2EXT) is employed in industrial control panels, motor control centres (MCCs), and main distribution boards where withdrawable Tmax T7 circuit breakers are installed. The six-contact arrangement provides discrete signalling for connected, test, and disconnected positions — critical for safe maintenance procedures, remote monitoring systems, and interlocking logic in industrial automation and building infrastructure applications.
