Part number
1SDA060537R1
Model no
T6N
$2,796.25 On request Dispatch — · From TürkiyeGet a Quote
Tmax T6

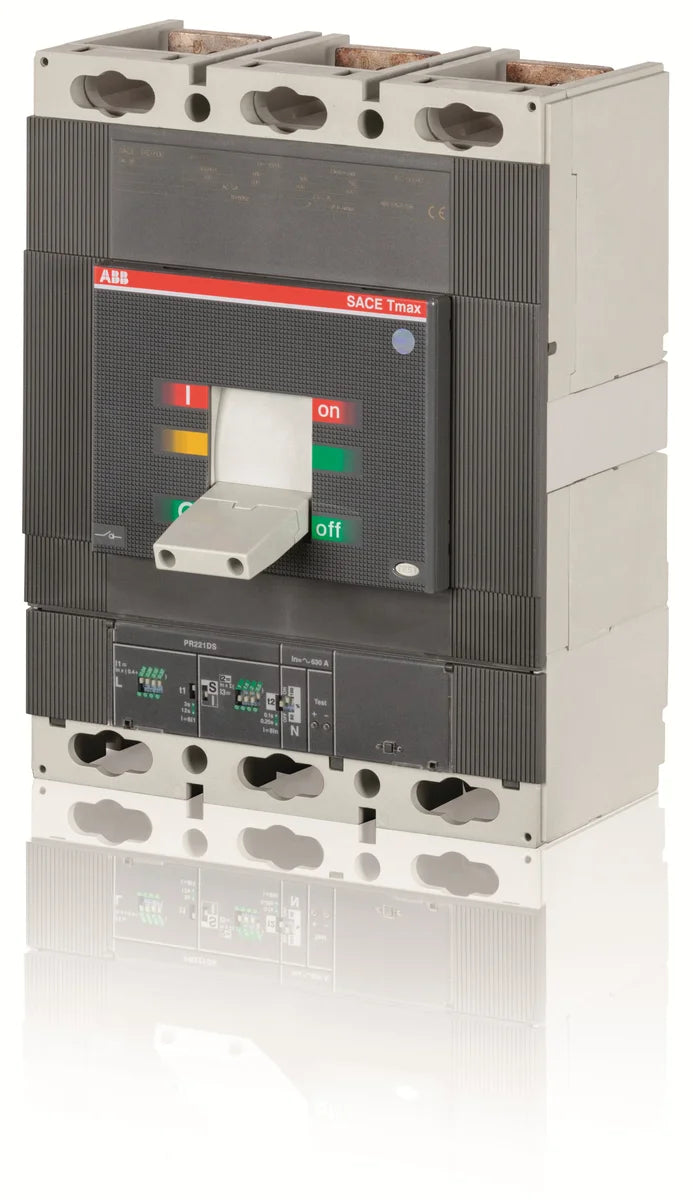

ABB 1SDA060537R1 T6N 1000 PR221DS-LS/I In=1000 3p F F 1000A 3P Fixed Power Circuit-Breaker

Rated current
1000 A
Poles
3P
Breaking capacity
(400) 36 kA
EAN
8015644630522
Description

About the T6N

The ABB 1SDA060537R1 T6N 1000 PR221DS-LS/I In=1000 3p F F is a 1000 A, 3-pole fixed-mount moulded case power circuit-breaker from the ABB Tmax T6 series, engineered for transformer, generator, and installation protection in demanding industrial power distribution systems. Equipped with the PR221DS-LS/I electronic trip unit, it delivers precise long-time and instantaneous overcurrent protection, making it the preferred choice for high-current feeder and incomer applications in commercial and industrial switchgear.

Certifications & Standards

  • CE: Conforms to applicable European Union directives for electrical equipment placed on the EU market.
  • IEC: Designed and tested in accordance with IEC standards for moulded case circuit-breakers and power circuit-breakers.
  • RoHS: Compliant with the Restriction of Hazardous Substances Directive, restricting use of hazardous materials in electrical equipment.
  • REACH: Compliant with EU REACH regulation concerning the registration, evaluation, and authorisation of chemicals.
  • WEEE: Registered and compliant with the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal.

Applications & Use Cases

  • Transformer and generator outgoing feeder protection in MV/LV substations
  • Main incomer and bus-coupler positions in industrial switchboards
  • Installation protection in large commercial buildings, data centres, and manufacturing facilities
  • High-current distribution panels requiring precise electronic overcurrent tripping
  • Panel builders and OEMs requiring a compact, fixed-mount 1000 A MCCB footprint
Specification

Full specification

54 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 210 mm
Product Net Height 268 mm
Product Net Depth / Length 103.5 mm
Product Net Weight 12.863 kg

Additional Information 6

Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Suitable For T6
Suitable for Product Class Moulded Case Circuit Breakers
Version F
Show all 54 specifications ↓ Show less ↑43 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA060537R1
Type designation T6N
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644630522
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 18

Electrical Durability 4000 cycle, 60 cycles per hour
Mechanical Durability 20000 cycle, 120 cycles per hour
Number of Poles 3P
Power Loss at Rated Operating Conditions per Pole 50 W
Rated Current (In) 1000 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA
Rated Uninterrupted Current (Iu) 1000 A
Release PR221DS-LS/I
Release Type EL
Short-Circuit Performance Level N
Standards IEC
Sub-type T6
Terminal Connection Type Fixed Circuit-Breakers, Front
Test Voltage Max (Utest) 3500 V

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39121100
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units 1 piece
Package Level 1 Width 305 mm
Package Level 1 Height 285 mm
Package Level 1 Depth / Length 370 mm
Package Level 1 Gross Weight 13.54 kg
Package Level 1 EAN 8015644630522
Shipping weight 12.863 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA060537R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC
Quick answers

Questions about the T6N

What is the rated current of T6N?

The rated current of T6N is 1000 A.

What is the HS code of T6N for customs?

The tariff (HS) code on file for T6N is 85362090.

What is the EAN of T6N?

The EAN (GTIN) of T6N is 8015644630522.

Where does T6N ship from, and how fast?

T6N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
