Part number
1SDA054478R1
Model no
T5N
$1,580.88 On request Dispatch — · From TürkiyeGet a Quote
TMAX T5

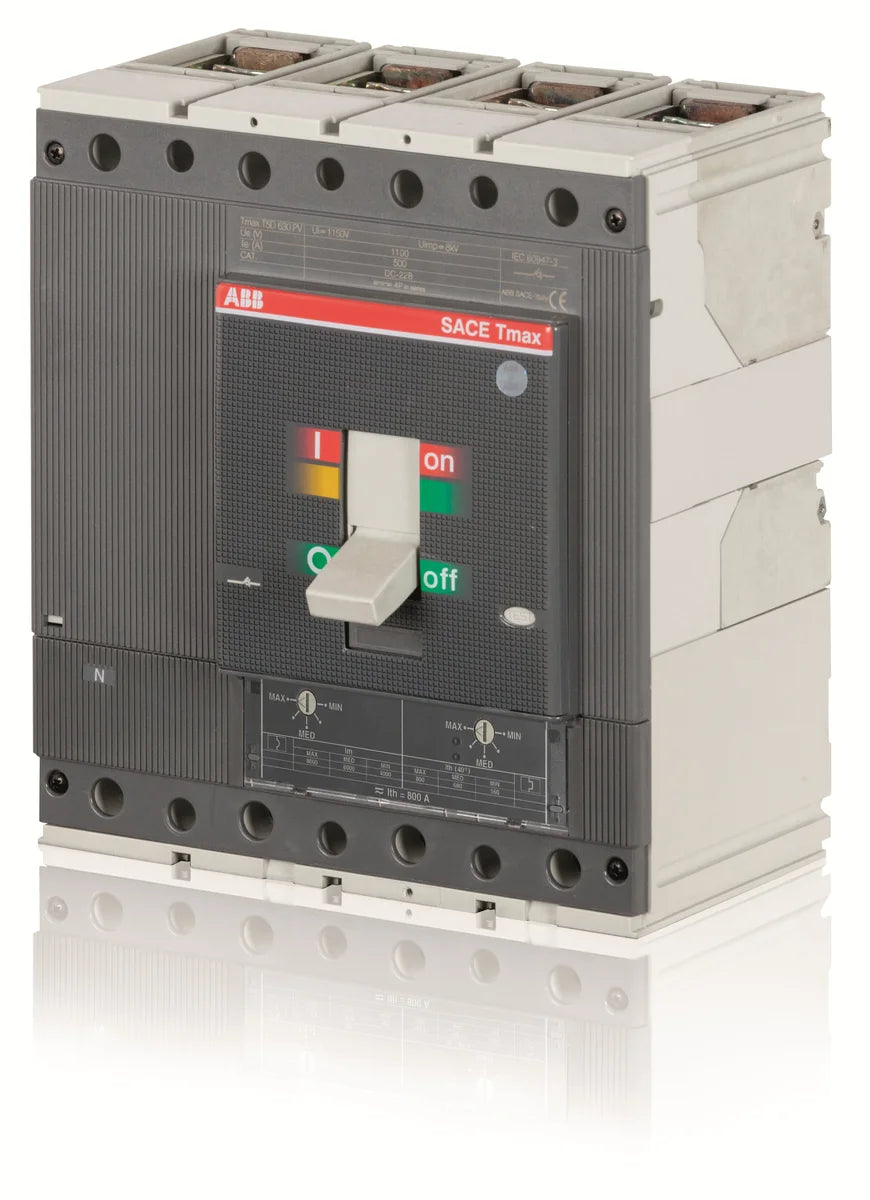

ABB 1SDA054478R1 T5N 400 TMA 400-4000 4p F F InN=100%In 400A 4P Fixed Power Circuit Breaker

Rated current
400 A
Poles
4P
Breaking capacity
(400) 36 kA
EAN
8015644555153
Description

About the T5N

The ABB 1SDA054478R1 T5N 400 TMA 400-4000 4p F F InN=100%In is a 400 A, 4-pole fixed-mount moulded case power circuit breaker from the ABB Tmax T5 series, engineered for transformer, generator, and installation protection in demanding industrial environments. The T5N 400 TMA 400-4000 4p F F InN=100%In features a thermomagnetic TMA release with a full-neutral configuration (InN=100%In), delivering precise overcurrent and short-circuit protection across all four poles. Compact and robust, it fits into standard distribution boards and control panels where reliable power protection is critical.

Certifications & Standards

  • CE: Complies with European Union directives for electrical equipment safety and electromagnetic compatibility
  • IEC: Designed and tested in accordance with IEC standards for circuit breakers and protective devices
  • RoHS: Restriction of Hazardous Substances compliant — free from restricted materials per EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substance safety
  • WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life recycling

Applications & Use Cases

  • Transformer secondary-side protection in industrial power distribution systems
  • Generator output protection for standby and prime power applications
  • Main and feeder protection in large commercial and industrial installations
  • Control panel and switchboard incomer protection requiring 4-pole switching with full neutral
  • Suitable for data centres, manufacturing plants, infrastructure facilities, and utility substations
Specification

Full specification

56 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 186 mm
Product Net Height 205 mm
Product Net Depth / Length 103.5 mm
Product Net Weight 5.717 kg

Additional Information 6

Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Suitable For T5
Suitable for Product Class Moulded Case Circuit Breakers
Version F
Show all 56 specifications ↓ Show less ↑45 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA054478R1
Type designation T5N
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644555153
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 20

Electrical Durability 7000 cycle, 60 cycles per hour
Mechanical Durability 20000 cycle, 120 cycles per hour
Number of Poles 4P
Power Loss at Rated Operating Conditions per Pole 19.5 W
Rated Current (In) 400 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC, 750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 2 Poles in Series 25 kA, (750 V DC) 3 Poles in Series 16 kA
Rated Uninterrupted Current (Iu) 400 A
Release TMA
Release Type TM
Short-Circuit Performance Level N
Standards IEC
Sub-type T5
Terminal Connection Type Fixed Circuit-Breakers, Front
Test Voltage Max (Utest) 3500 V
Test Voltage at Industrial Frequency for 1 Minute 3500 V

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39121100
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units 1 piece
Package Level 1 Width 248 mm
Package Level 1 Height 240 mm
Package Level 1 Depth / Length 285 mm
Package Level 1 Gross Weight 5.8 kg
Package Level 1 EAN 8015644555153
Shipping weight 5.717 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA054478R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC
Quick answers

Questions about the T5N

What is the rated current of T5N?

The rated current of T5N is 400 A.

What is the HS code of T5N for customs?

The tariff (HS) code on file for T5N is 85362090.

What is the EAN of T5N?

The EAN (GTIN) of T5N is 8015644555153.

Where does T5N ship from, and how fast?

T5N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
