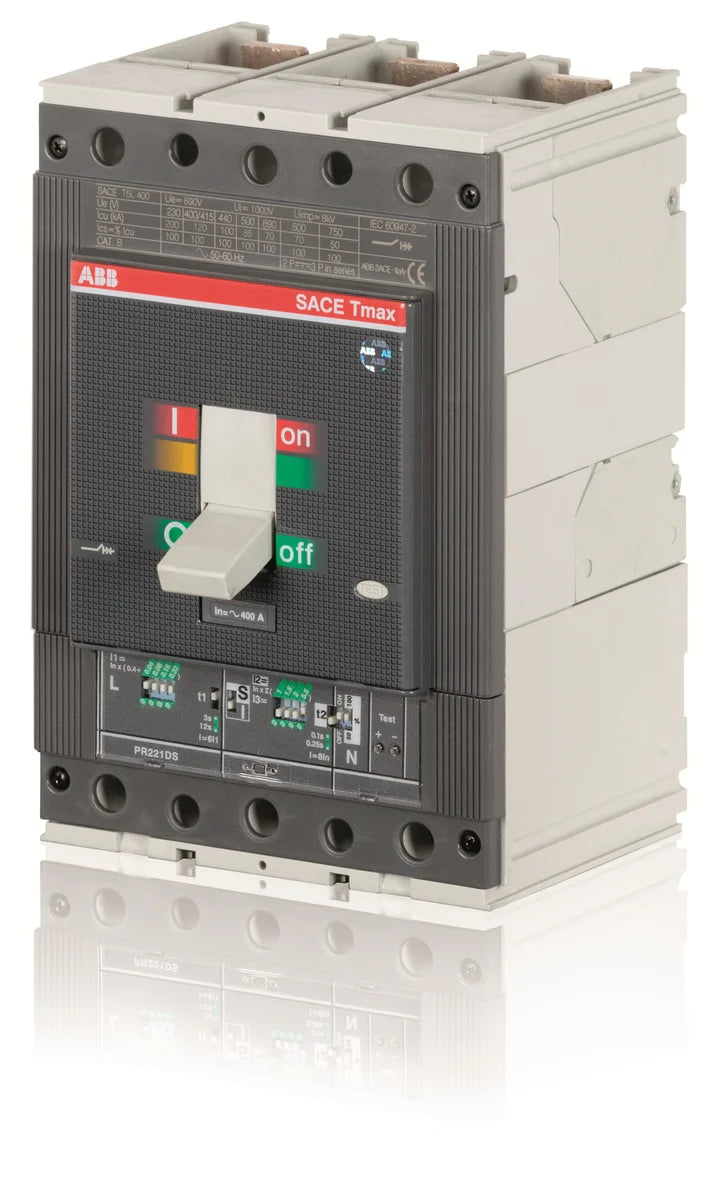

The ABB 1SDA054333R1 — catalog number T5S 400 PR221DS-LS/I In=400 3p F F — is a 400 A, 3-pole fixed molded case circuit breaker from the TMAX T5 series, equipped with the PR221DS-LS/I electronic trip unit for precise overload and short-circuit protection in low-voltage power distribution systems. Designed for demanding industrial applications, the T5S 400 PR221DS-LS/I In=400 3p F F delivers reliable thermal-magnetic-equivalent protection in a compact 140 × 205 × 103.5 mm frame weighing 4.824 kg.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Width | 140 mm |
|---|---|
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.824 kg |
| Product Main Type | SACE Tmax T |
|---|---|
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Part number | 1SDA054333R1 |
|---|---|
| Type designation | T5S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644554316 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| E-Number (Sweden) | 3180383 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 7000 cycle, 60 cycles per hour |
|---|---|
| Mechanical Durability | 20000 cycle, 120 cycles per hour |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 50 kA, (400 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 40 kA, (500 V AC) 30 kA, (690 V AC) 25 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 50 kA, (400 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 40 kA, (500 V AC) 30 kA, (690 V AC) 25 kA |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers, Front |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Package Level 1 Units | 1 piece |
|---|---|
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554316 |
| Shipping weight | 4.824 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of T5S is 400 A.
The tariff (HS) code on file for T5S is 85362090.
The EAN (GTIN) of T5S is 8015644554316.
T5S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
