Part number
1SDA054317R1
Model no
T5N
$1,103.75 On request Dispatch — · From TürkiyeGet a Quote
Tmax T5

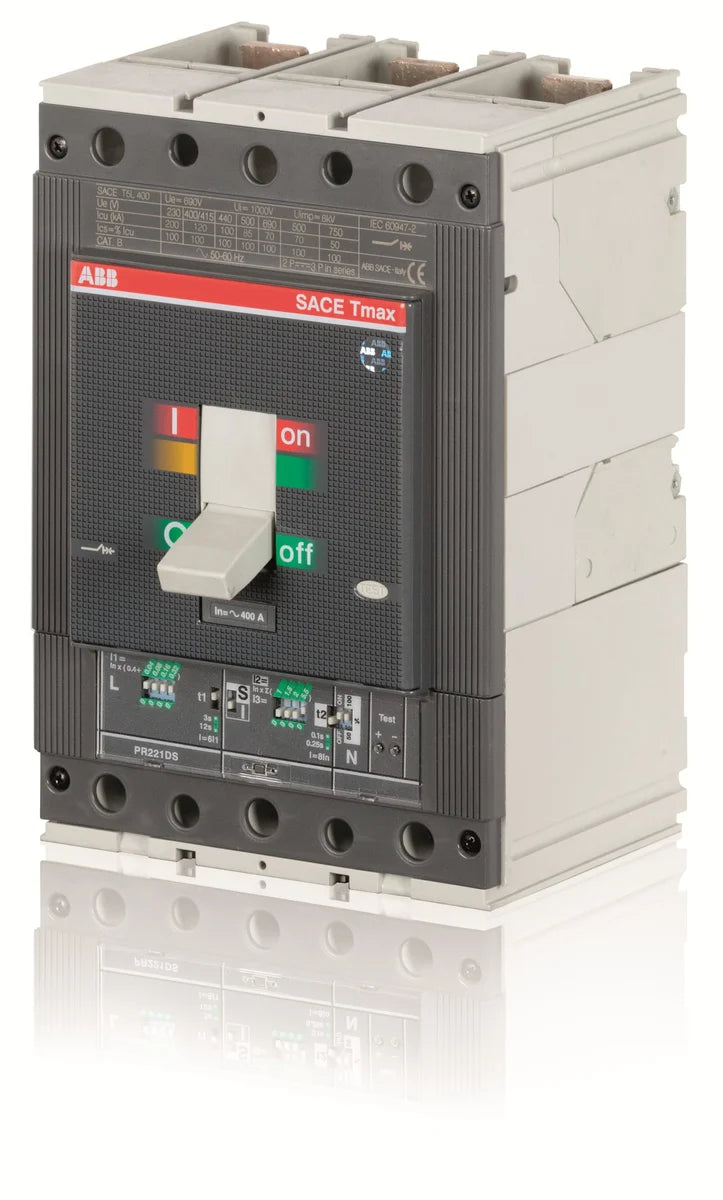

ABB 1SDA054317R1 T5N 400 PR221DS-LS/I In=400 3p F F 400A 3-Pole Fixed Moulded Case Circuit Breaker

Rated current
400 A
Poles
3P
Breaking capacity
(400) 36 kA
EAN
8015644552626
Description

About the T5N

The ABB 1SDA054317R1 T5N 400 PR221DS-LS/I In=400 3p F F is a 400A 3-pole fixed moulded case circuit breaker (MCCB) from the ABB Tmax T5 series, engineered for power distribution protection in transformer, generator, and installation applications. Featuring the PR221DS-LS/I electronic release unit with long-time and instantaneous protection functions, this breaker delivers precise, reliable overcurrent protection in demanding industrial environments.

Certifications & Standards

  • CE: Conforms to European Union safety, health, and environmental protection requirements
  • IEC: Designed and tested in accordance with IEC standards for circuit breakers and switching equipment
  • RoHS: Compliant with the Restriction of Hazardous Substances Directive, restricting use of harmful materials
  • REACH: Compliant with EU REACH regulation governing chemicals used in electrical equipment
  • WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling

Applications & Use Cases

  • Transformer feeder and secondary protection in MV/LV substations
  • Generator output circuit protection in standby and prime power systems
  • Main and sub-main distribution board protection
  • Industrial motor distribution panels and control room switchboards
  • Protection of cables and busbars in manufacturing and process plants
Specification

Full specification

56 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 140 mm
Product Net Height 205 mm
Product Net Depth / Length 103.5 mm
Product Net Weight 4.841 kg

Additional Information 6

Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Suitable For T5
Suitable for Product Class Moulded Case Circuit Breakers
Version F
Show all 56 specifications ↓ Show less ↑45 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SDA054317R1
Type designation T5N
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644552626
ETIM class EC000228
eCl@ss 27370409
E-Number (Sweden) 3180373
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 19

Electrical Durability 7000 cycle, 60 cycles per hour
Mechanical Durability 20000 cycle, 120 cycles per hour
Number of Poles 3P
Power Loss at Rated Operating Conditions per Pole 16.5 W
Rated Current (In) 400 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA
Rated Uninterrupted Current (Iu) 400 A
Release PR221DS-LS/I
Release Type EL
Short-Circuit Performance Level N
Standards IEC
Sub-type T5
Terminal Connection Type Fixed Circuit-Breakers, Front
Test Voltage Max (Utest) 3500 V

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39121100
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units 1 piece
Package Level 1 Width 248 mm
Package Level 1 Height 240 mm
Package Level 1 Depth / Length 285 mm
Package Level 1 Gross Weight 5.1 kg
Package Level 1 EAN 8015644552626
Shipping weight 4.841 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA054317R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC
Quick answers

Questions about the T5N

What is the rated current of T5N?

The rated current of T5N is 400 A.

What is the HS code of T5N for customs?

The tariff (HS) code on file for T5N is 85362090.

What is the EAN of T5N?

The EAN (GTIN) of T5N is 8015644552626.

Where does T5N ship from, and how fast?

T5N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
