| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 800 | 1SCA150935R1001 | On request | $4,453.24 | |
| 1600 | 1SCA153623R1001This part | Critical stock | $6,745.96 |

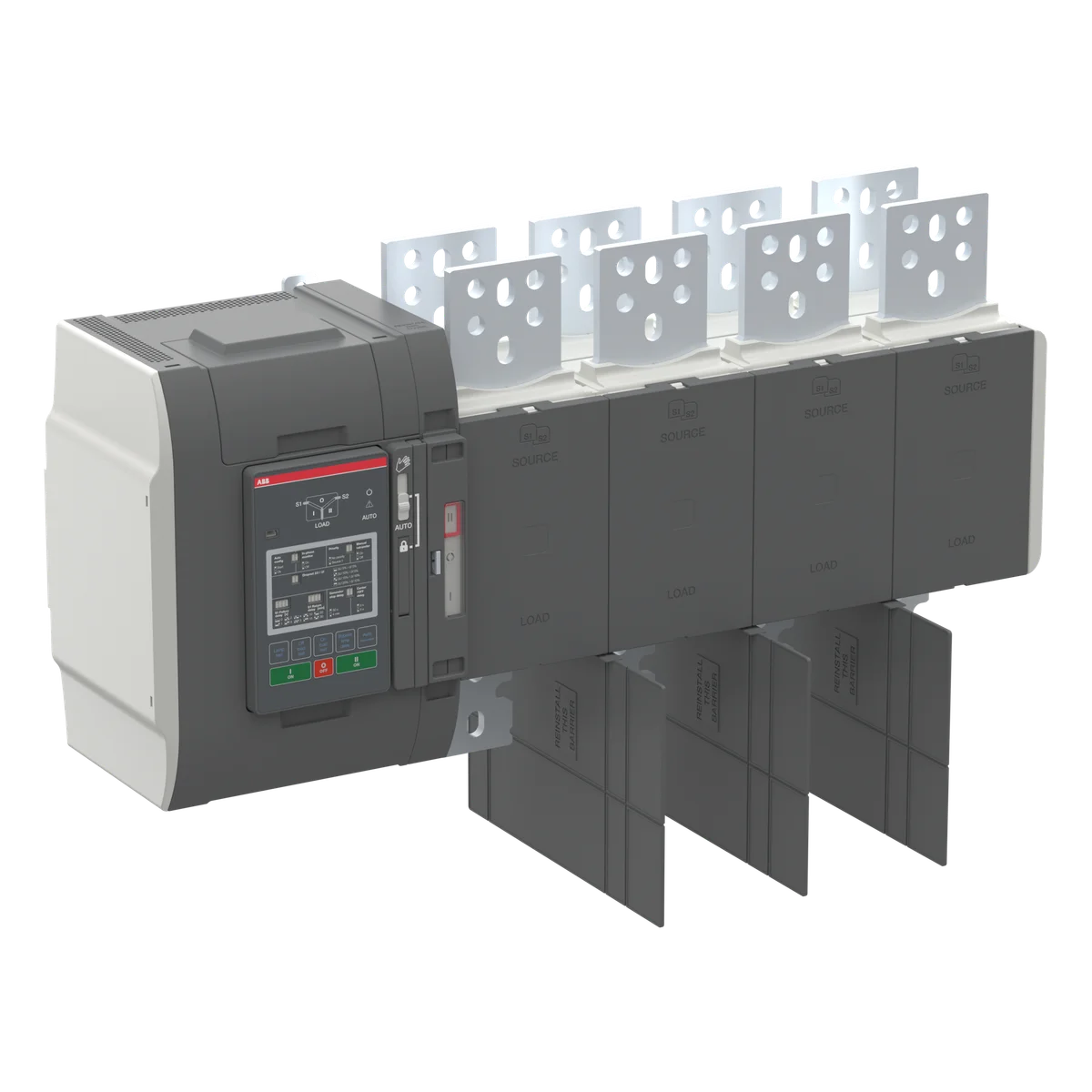

The ABB OXB1600E3S2QT (SKU: 1SCA153623R1001) is a 1600A, 3-pole automatic transfer switch from the ABB TruONE series, designed for reliable source changeover in critical power applications. Rated for 200–480 VAC, this open-style ATS ensures seamless transfer between primary and backup power sources, safeguarding industrial installations, data centres, and commercial facilities against supply interruptions. The OXB1600E3S2QT delivers robust performance in demanding environments and meets the highest international electrical standards.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
| Product Net Width | 712 mm, 28.03 in |
|---|---|
| Product Net Height | 359 mm, 14.13 in |
| Product Net Depth / Length | 212 mm, 8.35 in |
| Product Net Weight | 37.11 kg, 81.81 lb |
| Part number | 1SCA153623R1001 |
|---|---|
| Type designation | OXB1600E3S2QT |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019846491 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Controller Type | Level 2 (DIP) |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Fourth Pole Position | Left and Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Number of Poles | 4P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 49 W, Total 147 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 415 V AC) 1600 A |
| Rated Operational Voltage | Main Circuit 200...480 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 65 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 590 mm, 23.23 in |
| Package Level 1 Depth / Length | 790 mm, 31.1 in |
| Package Level 1 Height | 510 mm, 20.08 in |
| Package Level 1 Gross Weight | 57.11 kg, 125.91 lb |
| Package Level 1 EAN | 6417019846491 |
| Shipping weight | 57.11 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 800 A | 1SCA150935R1001 | OXB800E3S2QT | On request | — | $4,453.24 | Quote | |
| 1600 A | 1SCA153623R1001 This part | OXB1600E3S2QT | Critical stock | $6,745.96 |
The rated current of OXB1600E3S2QT is 1600 A.
The rated operational voltage of OXB1600E3S2QT is 200–480 V AC.
The tariff (HS) code on file for OXB1600E3S2QT is 85365080.
The EAN (GTIN) of OXB1600E3S2QT is 6417019846491.
OXB1600E3S2QT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
