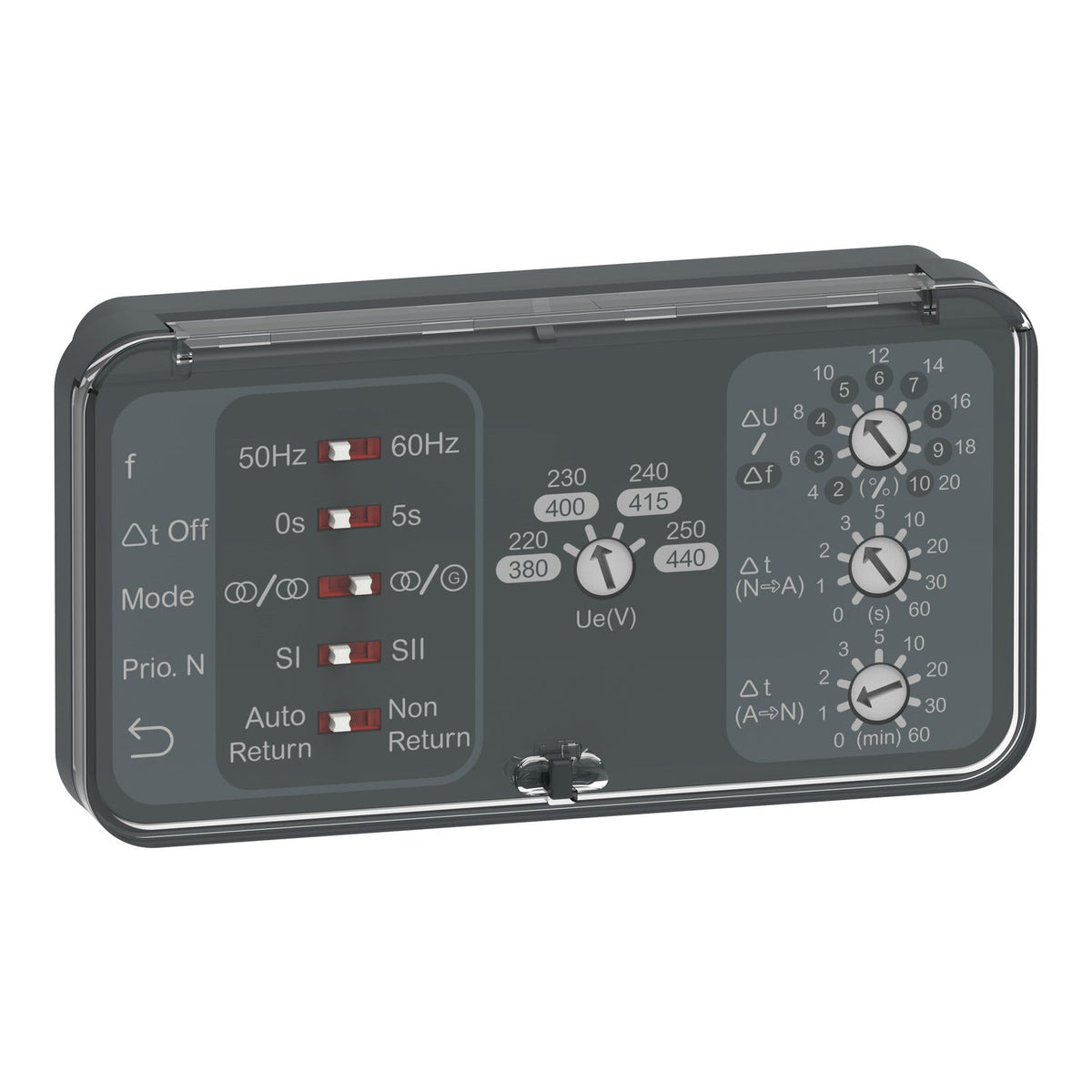

The TPCCIF02 is a Schneider Electric TransferPacT rotary display module that mounts flush on a TransferPacT automatic transfer switch front face. It displays operating mode and alarm status and takes the local setting commands from a rotary and dip switch combination, giving flush-mounted panels a built-in, IP54-rated-when-covered interface with no separate wiring run.
| Range of product | TransferPacT |
|---|---|
| Product or component type | Display module |
| Accessory / separate part category | Display and signalling accessories |
| Function of module | Display of operating modes and alarm |
| Control type | Rotary knob, Selector switch |
|---|---|
| Mounting mode | Flush mounting |
| Height | 45 mm |
| Width | 85 mm |
| Depth | 22.5 mm |
| Net weight | 40 g |
| IP degree of protection | Front face: IP40 auto mode, Front face: IP20 manual mode |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Part number | TPCCIF02 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 12.0 cm |
| Package 1 Weight | 140.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 900 g |
| Shipping weight | 0.04 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TPCCIF02 is 853890.
TPCCIF02 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
