| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 800 | 1SCA150935R1001This part | On request | $4,453.24 | |
| 1600 | 1SCA153623R1001 | Critical stock | $6,745.96 |

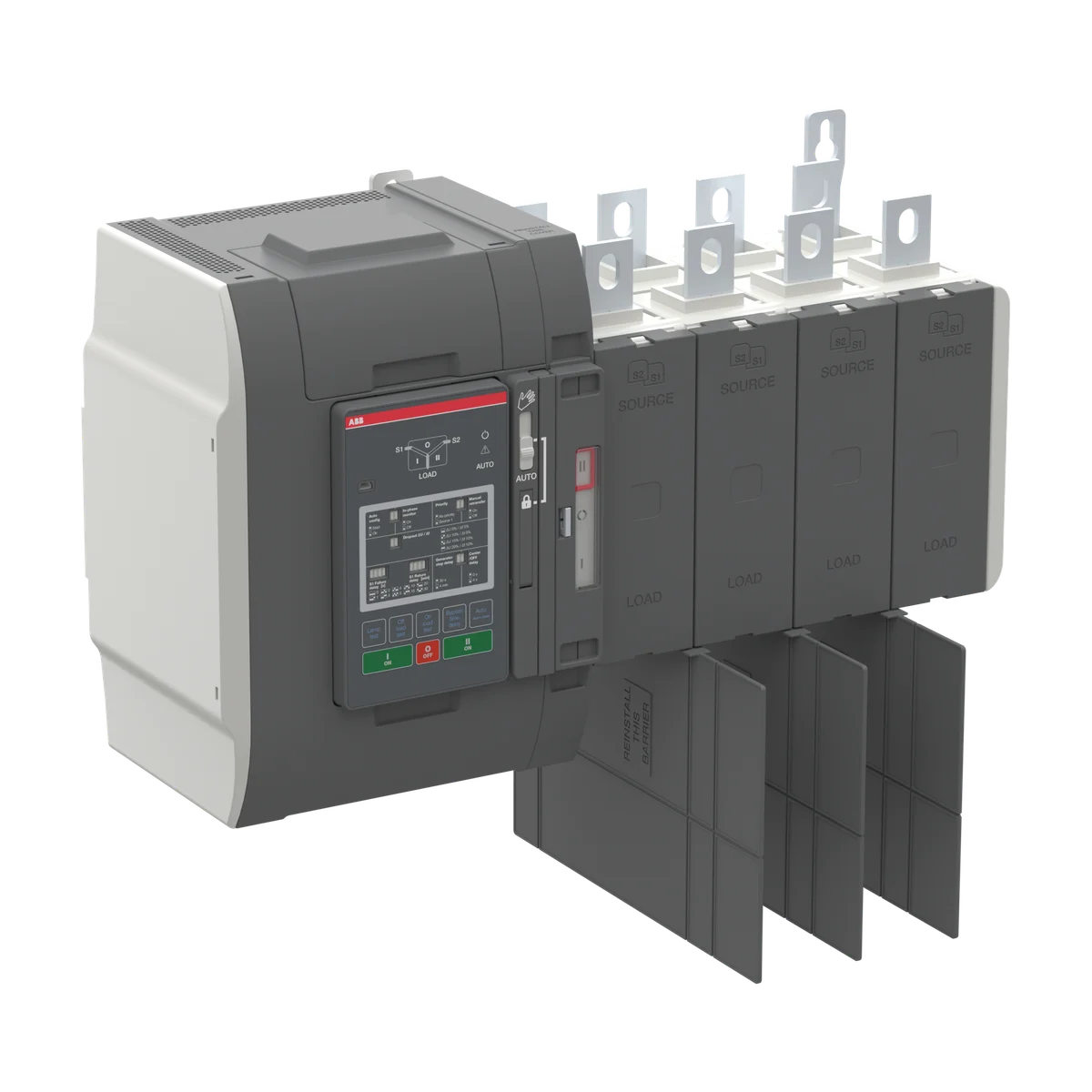

The ABB OXB800E3S2QT automatic transfer switch (SKU: 1SCA150935R1001) is a 800A, 3-pole open-style ATS from the TruONE series, rated for 200–480 VAC systems. Designed for critical power continuity applications, this unit ensures seamless switchover between primary and backup power sources in industrial and commercial installations. Weighing 22.23 kg, the OXB800E3S2QT delivers robust, reliable transfer switching performance in compliance with IEC 60947-6-1 standards.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
| Product Net Width | 512 mm, 20.16 in |
|---|---|
| Product Net Height | 313 mm, 12.32 in |
| Product Net Depth / Length | 212 mm, 8.35 in |
| Product Net Weight | 21.43 kg, 47.25 lb |
| Part number | 1SCA150935R1001 |
|---|---|
| Type designation | OXB800E3S2QT |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019811710 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Controller Type | Level 2 (DIP) |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Fourth Pole Position | Left and Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Number of Poles | 4P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 47 W, Total 141 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 415 V AC) 800 A |
| Rated Operational Voltage | Main Circuit 200...480 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 42 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 345 mm, 13.58 in |
| Package Level 1 Depth / Length | 565 mm, 22.24 in |
| Package Level 1 Height | 240 mm, 9.45 in |
| Package Level 1 Gross Weight | 22.23 kg, 49.01 lb |
| Package Level 1 EAN | 6417019811710 |
| Shipping weight | 22.23 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 800 A | 1SCA150935R1001 This part | OXB800E3S2QT | On request | — | $4,453.24 | Quote | |
| 1600 A | 1SCA153623R1001 | OXB1600E3S2QT | Critical stock | $6,745.96 |
The rated current of OXB800E3S2QT is 800 A.
The rated operational voltage of OXB800E3S2QT is 200–480 V AC.
The tariff (HS) code on file for OXB800E3S2QT is 85365080.
The EAN (GTIN) of OXB800E3S2QT is 6417019811710.
OXB800E3S2QT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
